Stock Status: 1x unit in stock
Expand commercial space with compact display

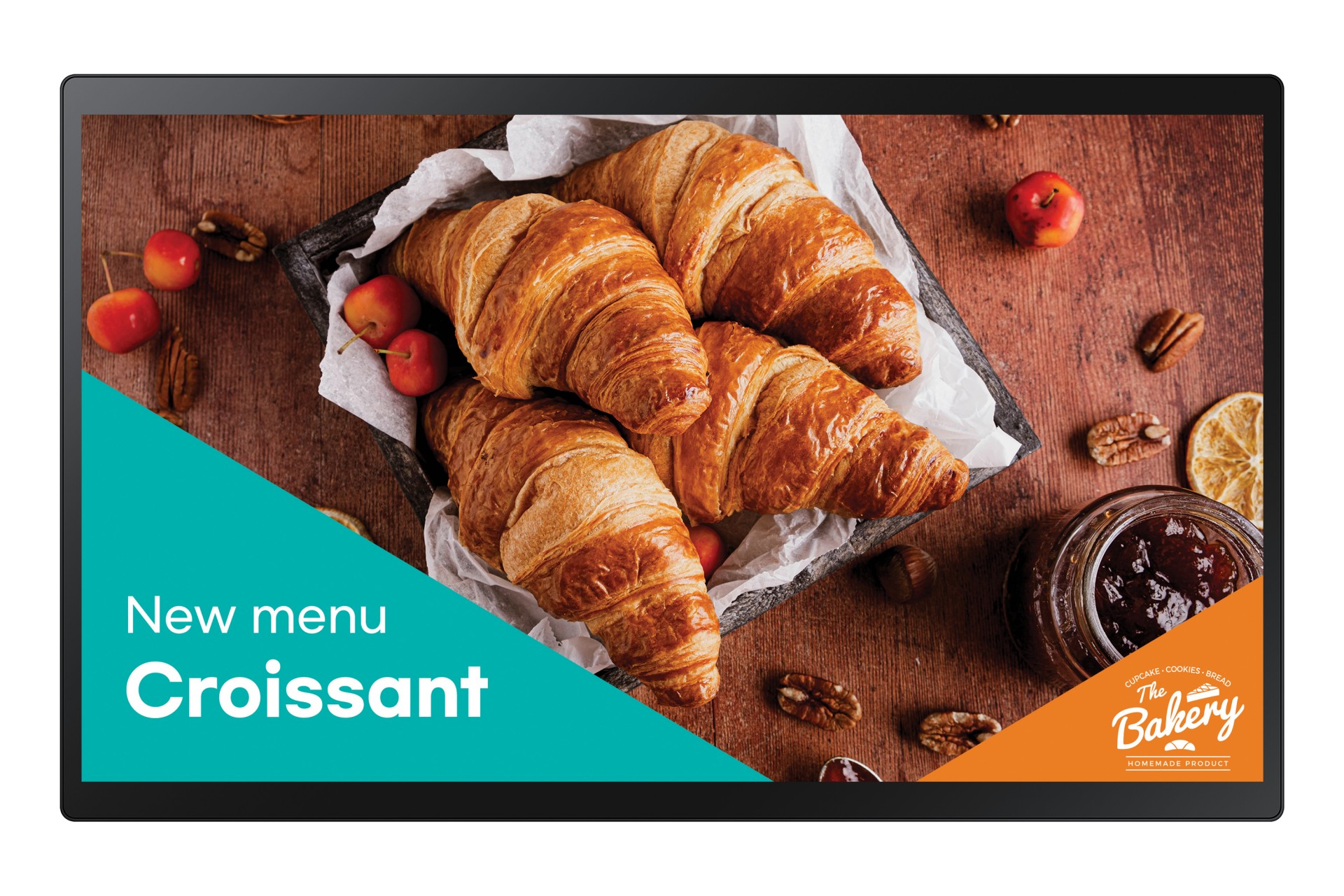

Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.
Fast, effective touch capabilities
10 point multi-touch
The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.
Connect with convenience
Home UI
QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class B
QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
Specs
| Weight & dimensions |
| Display width |
547.9 mm |
| Display depth |
34.6 mm |
| Display height |
334.4 mm |
| Display weight |
4 kg |
| Display |
| Display diagonal |
61 cm (24") |
| Display technology |
LED |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
250 cd/m² |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Panel type |
ADS |
| Touchscreen technology |
Capacitive |
| Multi-touch |
Yes |
| Response time |
14 ms |
| Contrast ratio (typical) |
1000:1 |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Horizontal scan range |
56 - 84.5 kHz |
| Vertical scan range |
48 - 75 Hz |
| Haze rate |
25% |
| RGB colour space |
NTSC |
| Colour gamut |
72% |
| Packaging data |
| Package width |
620 mm |
| Package depth |
122 mm |
| Package height |
419 mm |
| Package volume |
5200 cm³ |
| Power |
| Power consumption (typical) |
38.5 W |
| Power consumption (sleep) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| DVI port |
No |
| DisplayPorts quantity |
0 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| HDMI version |
1.4 |
| HDMI input ports quantity |
1 |
| USB ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| Infrared data port |
Yes |
| Remote (IR) input |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Other features |
| Bluetooth |
Yes |
| Flash memory |
8000 MB |
| RS-232 input ports |
1 |
| RJ-45 input ports |
1 |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Panel mounting interface |
100 x 100 mm |
| Performance |
| Purpose |
Universal |
| Operating hours (hours/days) |
16/7 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Technical details |
| Sustainability certificates |
EPEAT Bronze |
| Compliance certificates |
CE, China Compulsory Certification (CCC), Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KCC, RoHS, VCCI |
| Audio out (mini jack) |
1 |
| Sustainability compliance |
Yes |
| Computer system |
| Computer system |
Yes |
| Built-in processor |
Yes |
| Computer system type |
System on Chip (SoC) |
| Operating system installed |
Tizen 7.0 |
| Packaging content |
| Cables included |
Power |
Features
Samsung QB24C-T. Product design: Digital signage flat panel. Display diagonal: 61 cm (24"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 7.0. Product colour: Black
Product Description
Expand commercial space with compact display
Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.
Fast, effective touch capabilities
10 point multi-touch
The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.
Connect with convenience
Home UI
QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class B
QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
