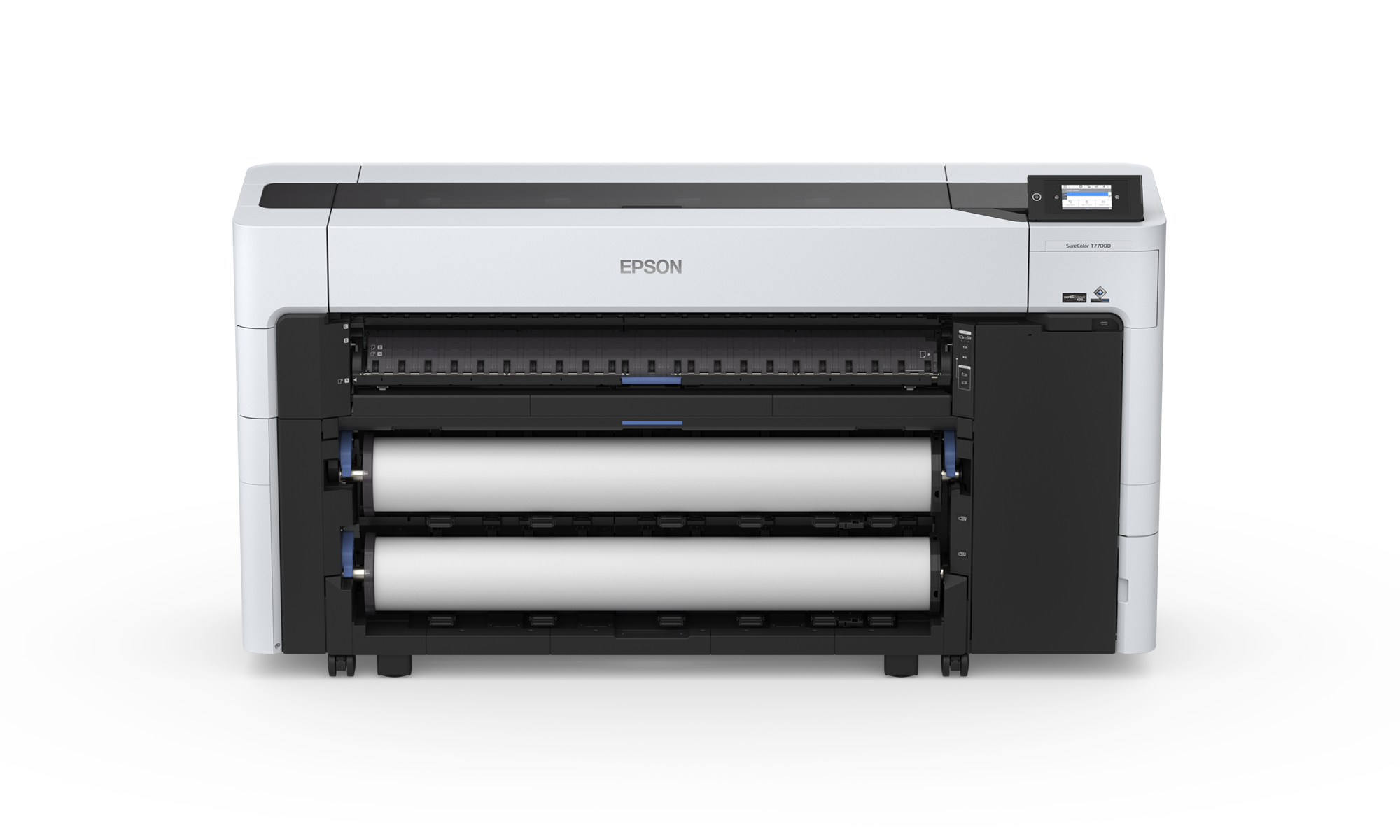

44-inch technical printer
This fully integrated, technical printing solution offers high-productivity, smart features, document security and easy operation.
The SureColor SC-T7700D is a technical printer that's been designed for various applications, including: precise line definition, colour accuracy, and security for AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precision, colour replication, and security for public sector printing.
Complete document solution
The SC-T7700D includes enhanced IT and security features. This is particularly useful for designers, architects and construction companies who print detailed plans and drawings, while protecting confidential documents. Collaboration is further improved, and workloads managed more efficiently, through central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers.
Fast and feature-rich
High productive output speeds are achieved with the PrecisionCore MicroTFP printhead, Variable Sized Droplet Technology and Nozzle Verification Technology.
Compact footprint - versatile design
The SureColor SC-T7700D design is both contempary and compact. It fits into most working environments because of its flat and unobtrusive design, which is space saving and practical.
Highly detailed prints, every time
Whether printing detailed architectural, engineering and construction (AEC) CAD prints, or POS posters for retail, the SureColorSC-T7700D's output is both precise and vibrant. The printer features an Epson PrecisionCore MicroTFP printhead and 6-colour UltraChrome XD3 all pigment inks, which include a new red ink to broaden the overall colour gamut.
Business solutions
The SureColor SC-T7700D is supported by industry-leading software providers for production enhancement and managed print systems.
Specs
| Ports & interfaces |
| Ethernet LAN |
Yes |
| USB port |
Yes |
| Wi-Fi |
Yes |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Direct printing |
Yes |
| Mobile printing technologies |
Apple AirPrint |
| Printing |
| Print technology |
Inkjet |
| Colour |
Yes |
| Maximum resolution |
1200 x 2400 DPI |
| Number of print cartridges |
6 |
| Page description languages |
ESC/P-R, HP-GL/2, PDF 1.7, PostScript 3 |
| Printing colours |
Black, Cyan, Magenta, Matte black, Photo black, Red, Yellow |
| Print speed (normal quality, A1) |
120 pph |
| Print head nozzles |
1.600 nozzles per colour |
| Colour management |
ICC Profile |
| Power |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
70 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Paper handling |
| Maximum print size |
A2 (420 x 594 mm) |
| Paper tray media types |
Roll |
| ISO A-series sizes (A0...A9) |
A0, A2, A3, A4, A5 |
| ISO B-series sizes (B0...B9) |
B0, B1 |
| Media thickness |
SingleSheet0.1 |
| Maximum roll width |
111.8 cm |
| Auto take-up reel |
Yes |
| Borderless printing width |
10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll, 44" (111.8cm) Roll |
| Weight & dimensions |
| Width |
1848 mm |
| Depth |
499 mm |
| Height |
975 mm |
| Weight |
155 kg |
| Scanning |
| Scanning |
No |
| Copying |
| Copying |
No |
| Other features |
| Line accuracy |
+/- 0,26 |
| Touchscreen |
Yes |
| Minimum line width |
0.02 mm |
| Print quality (black, draft quality) |
600 DPI |
| Ink drop |
3.5 |
| Performance |
| Product colour |
Black, White |
| Built-in display |
Yes |
| Display |
LCD |
| Colour display |
Yes |
| Display diagonal |
10.9 cm (4.3") |
| Control type |
Touch |
| Internal memory |
4096 MB |
| Sound power level (standby) |
6.6 dB |
| Sound pressure level (printing) |
6.6 dB |
| Country of origin |
Indonesia |
| Logistics data |
| Quantity per pack |
1 pc(s) |
| Packaging data |
| Cartridge(s) included |
Yes |
| Manual |
Yes |
Features
Epson SureColor SC-T7700D. Print technology: Inkjet, Maximum resolution: 1200 x 2400 DPI, Page description languages: ESC/P-R, HP-GL/2, PDF 1.7, PostScript 3. Maximum print size: A2 (420 x 594 mm), Paper tray media types: Roll, ISO A-series sizes (A0...A9): A0, A2, A3, A4, A5. Ethernet LAN data rates: 10,100,1000 Mbit/s, Mobile printing technologies: Apple AirPrint. Product colour: Black, White, Display: LCD, Display diagonal: 10.9 cm (4.3"). Power consumption (standby): 0.3 W, Power consumption (typical): 70 W, AC input voltage: 100-240 V
Product Description
44-inch technical printer
This fully integrated, technical printing solution offers high-productivity, smart features, document security and easy operation.
The SureColor SC-T7700D is a technical printer that's been designed for various applications, including: precise line definition, colour accuracy, and security for AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precision, colour replication, and security for public sector printing.
Complete document solution
The SC-T7700D includes enhanced IT and security features. This is particularly useful for designers, architects and construction companies who print detailed plans and drawings, while protecting confidential documents. Collaboration is further improved, and workloads managed more efficiently, through central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers.
Fast and feature-rich
High productive output speeds are achieved with the PrecisionCore MicroTFP printhead, Variable Sized Droplet Technology and Nozzle Verification Technology.
Compact footprint - versatile design
The SureColor SC-T7700D design is both contempary and compact. It fits into most working environments because of its flat and unobtrusive design, which is space saving and practical.
Highly detailed prints, every time
Whether printing detailed architectural, engineering and construction (AEC) CAD prints, or POS posters for retail, the SureColorSC-T7700D's output is both precise and vibrant. The printer features an Epson PrecisionCore MicroTFP printhead and 6-colour UltraChrome XD3 all pigment inks, which include a new red ink to broaden the overall colour gamut.
Business solutions
The SureColor SC-T7700D is supported by industry-leading software providers for production enhancement and managed print systems.
