Stock Status: 1x unit in stock
Power anytime, anywhere

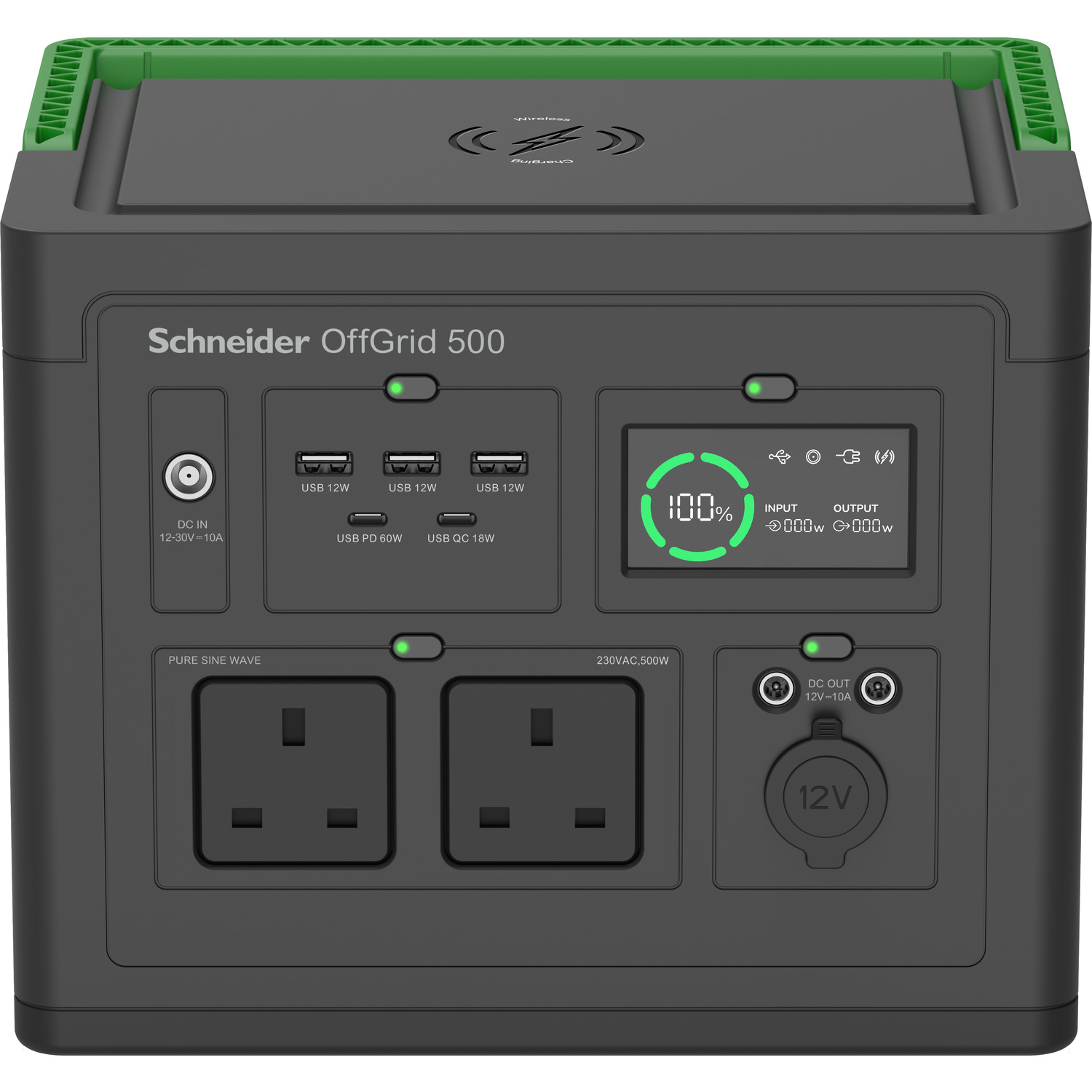

The Schneider Electric OffGrid Portable Power Station is designed for outdoor enthusiasts and home users to provide consistent and reliable (emergency) power anytime, anywhere, just when you need it most. With a combined power of 749W (500W(AC) + 249W(DC)), you can easily power multiple devices at the same time. Thanks to the wireless charging pad (15W), you can also easily charge devices wirelessly.
Portable
Weighing 5.5 kg, the portable power supply is light, compact and easy to lift thanks to the handle without sacrificing sturdiness.
Outputs and power
The PPS500-UK has a large number of connection options, divided over 4 groups:
-2 BS1363 UK outlets (500W, 1000W peak) pure sine wave alternating current (AC)
-3 USB-A ports (3x 5V-2.4A 12W) (DC)
-2 USB-C ports (1x PowerDelivery 60W, 1x QC 18W) (DC)
-2 12V DC5521 outputs (60W) (DC)
-1 12V car connection (120W) (DC)
-1 Wireless charging platform (15W) (DC)
Max power per group:
-Sockets (500W, 1000W temporary peak)
-USB ports (114W)
-12V (120W)
-Wireless (15W)
Charging
The PPS500-UK can be charged in 3 ways, via the wall socket, the 12V car plug or the optional solar panel. It takes about 7 hours to fully charge the device via the wall socket, or 3 hours by connecting it to the optional 200W solar panel. (PSP200) When the PPS Offgrid is charging, it can even supply power to connected devices at the same time. If the mains voltage suddenly fails due to a power failure, or you stop charging the PPS and take it offgrid, it will continue to supply power to the connected equipment.
Battery life
The battery life depends on the load, the sum of the power supplied to all connected devices. The expected battery life can easily be read in the runtime table, see images.
Summary; Load in Watts vs. battery life:
50W = 9h
80W = 6h
250W = 97 min.
500W = 45 min.
LED panel with SOS mode
The LED light panel makes it easy to use this portable power station in dark environments such as off-grid, at night at the campsite or during a power outage. Thanks to the SOS flashing mode of the LED panel, you can easily attract attention in an emergency.
Sustainable
Designed with sustainability in mind, this portable power supply has a housing made of 60% recycled plastic and comes in sustainable packaging. The warranty is 2 years.
Specs
| Weight & dimensions |
| Width |
198.1 mm |
| Depth |
203.2 mm |
| Height |
248.9 mm |
| Weight |
5.5 kg |
| Operational conditions |
| Storage temperature (T-T) |
-20 - 70 °C |
| Design |
| Built-in display |
Yes |
| Product colour |
Black, Green |
| Housing material |
Plastic |
| Display type |
LCD |
| LED indicators |
Yes |
| Carrying handle(s) |
Yes |
| Performance |
| Charging source |
AC, DC |
| Battery capacity |
517 Wh |
| Fast charging |
Yes |
| Fast charging technology |
Power Delivery, Quick Charge 1.0 |
| Waveform |
Pure sine |
| DC input power |
200 W |
| Input voltage |
190 - 265 V |
| USB Type-A output power |
12 W |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
60 W |
| Wireless charging |
Yes |
| Packaging content |
| Cables included |
AC |
| Manual |
Yes |
| Ports & interfaces |
| Input interface |
DC |
| AC outlets quantity |
2 AC outlet(s) |
| AC outlet types |
Type G (BS 1363) |
| USB port |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| USB Type-A output ports |
3 |
| USB Type-C ports quantity |
2 |
| DC output port type |
5521 |
| Number of DC output quantity |
2 |
| Logistics data |
| Total carbon footprint (kg of CO2e) |
248 |
| Packaging data |
| Package width |
238 mm |
| Package depth |
322 mm |
| Package height |
327 mm |
| Package weight |
7.1 kg |
| Battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
Features
APC SE OffGrid Portable Power Station 500 - Li-Ion battery, LCD, 2x UK outlets, 3x USB-A, 2x USB-C, 3x 12V, wireless charger. Charging source: AC, DC, Battery capacity: 517 Wh, Fast charging technology: Power Delivery, Quick Charge 1.0. Product colour: Black, Green, Housing material: Plastic, Display type: LCD. Input interface: DC, AC outlets quantity: 2 AC outlet(s), AC outlet types: Type G (BS 1363). Width: 198.1 mm, Depth: 203.2 mm, Height: 248.9 mm. Cables included: AC
