Stock Status: 1x unit in stock

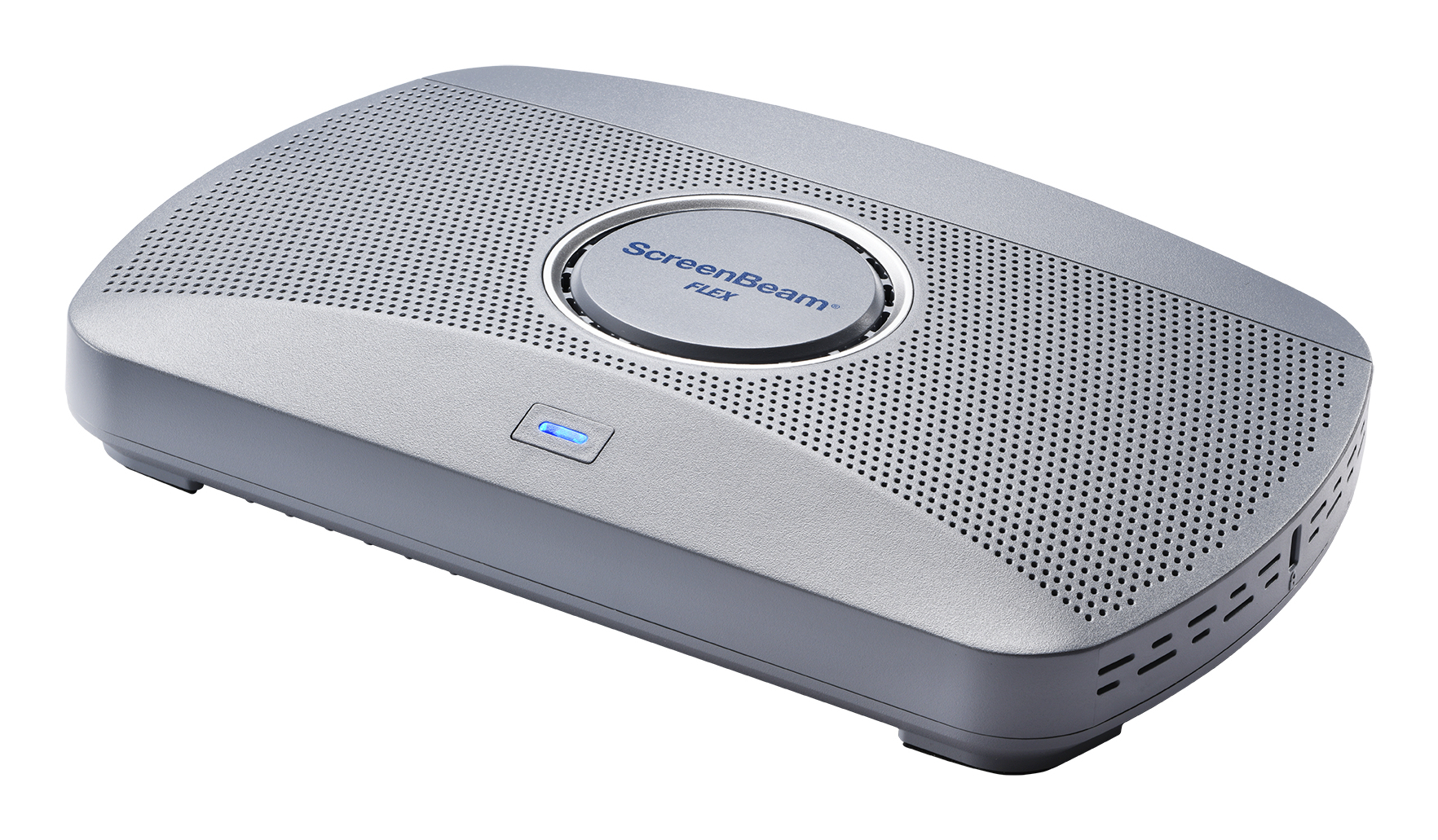

ScreenBeam FLEX delivers 4K wireless presentation, multi-user display, touch/inking support, and digital signage—empowering SMBs and higher ed to affordably turn any space into a secure, dynamic collaboration hub.
App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.
Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.
Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.
Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network.
Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.
Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.
Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.
HDMI Input
Combines wireless display and HDMI® switching in a single device for a fully functional for wired and wireless connections.
Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.
Specs
| Design |
| Form factor |
Desktop |
| Product colour |
White |
| Certification |
FCC, RED, RoHS, UL |
| Features |
| AirPlay mirroring |
Yes |
| Miracast |
Yes |
| Google Cast |
Yes |
| Networking |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Dual-band |
Yes |
| Bluetooth |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.1x |
| Supported network protocols |
IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac compatibility |
Yes |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported |
ChromeOS |
| Mobile operating systems supported |
Android 8.0, Android 8.1, Android 9.0, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16 |
| Packaging content |
| Cables included |
HDMI |
| Power |
| Power source type |
DC |
| Input voltage |
12 DC |
| Input current |
3 A |
| Power consumption (max) |
24.8 W |
| Power consumption (typical) |
8.4 W |
| Ports & interfaces |
| Interface |
HDMI + USB Type-A |
| Number of HDMI outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| 3.5 mm (1/8-inch) out |
Yes |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
220 mm |
| Depth |
144 mm |
| Height |
37.5 mm |
| Weight |
453.5 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
20 - 85 °C |
| Storage relative humidity (H-H) |
10 - 90% |
Features
ScreenBeam Flex. Form factor: Desktop, Product colour: White, Certification: FCC, RED, RoHS, UL. Wi-Fi standards: Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Ethernet LAN data rates: 10,100,1000 Mbit/s. Interface: HDMI + USB Type-A. Power source type: DC, Input voltage: 12 DC, Input current: 3 A. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Other operating systems supported: ChromeOS
Product Description
ScreenBeam FLEX delivers 4K wireless presentation, multi-user display, touch/inking support, and digital signage—empowering SMBs and higher ed to affordably turn any space into a secure, dynamic collaboration hub.
App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.
Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.
Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.
Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network.
Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.
Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.
Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.
HDMI Input
Combines wireless display and HDMI® switching in a single device for a fully functional for wired and wireless connections.
Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.
