Stock Status: 1x unit in stock

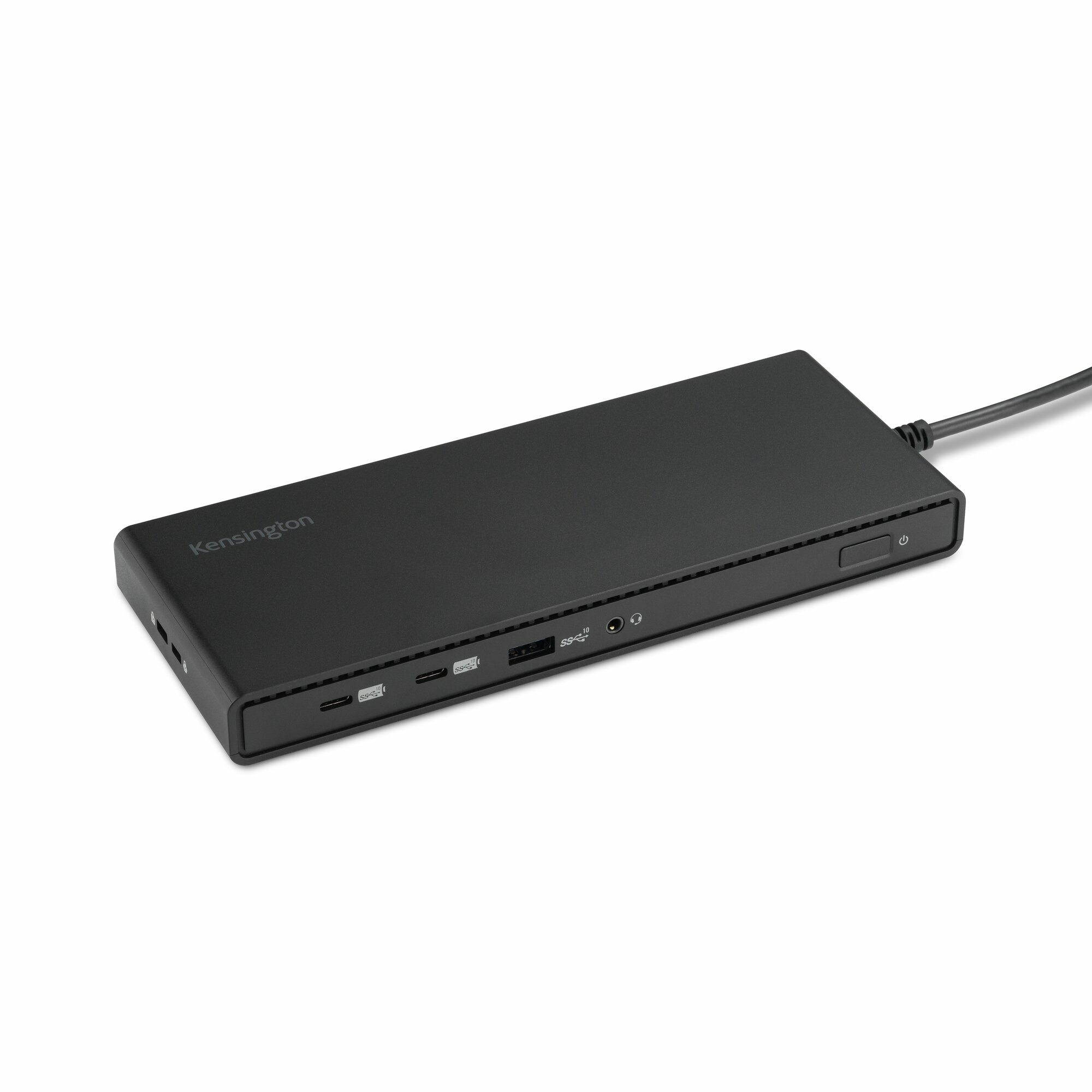

Ideal for professionals requiring a plug-and-play docking solution for USB-C laptops and organizations putting sustainability at the forefront, the SD4842P USB-C® 10Gbps Triple Video Docking Station amplifies visual productivity. Aimed at reducing our environmental impact, all the plastic material used in the SD4842P is composed of 73% post-consumer recycled content (PCR). The SD4842P supports up to 3 external Full HD monitors (1080p @ 120Hz) via 1 x DP and 2 x HDMI® connections. The dock also eliminates the need for cumbersome adapters, charging connected accessories without relying on a host laptop connection. Expand your screens with an effortless dock that will enhance your workflow.
Triple Video Displays
The SD4842P supports up to 3 external monitors (1080p @ 120Hz*) via 1 x DP and 2 x HDMI® connections.**For maximum resolution, the DSC-enabled laptop, docking station, monitor and laptop all need to support DSC v1.2.
Plug-and-Play
A simple plug-and-play solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® Alt-Mode laptops running Windows 10 or above. No drivers or downloads required.
Up to 100W Power Delivery
Supports up to 100W laptop charging using a compact GaN technology power supply unit. The plug-and-charge feature allows continuous charging of connected devices even when the host laptop is disconnected.
Sustainability Focused
Composed of 73% post-consumer recycled content (PCR), the plastic material used in the SD4842P docking station is aimed at reducing our environmental impact.
Multiple Productivity Ports
5 x plug-and-charge USB ports support peripherals with up to 10Gbps (2 x USB-C® 3.2 Gen2 (5V/3A) and 3 x USB-A 3.2 Gen2 (5V/0.9A). Also includes 1 x Gigabit Ethernet port and 1 x combo audio jack.
Fixed Host Cable and Compact GaN Power Supply
A fixed host cable ensures a reliable connection between the dock and the laptop, providing peace of mind against cable theft. The compact GaN technology power supply unit offers enhanced power efficiency.
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximise desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW).
Specs
| Weight & dimensions |
| Width |
195 mm |
| Depth |
104 mm |
| Height |
36 mm |
| Weight |
293 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity |
2 |
| Headphone outputs |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| HDCP |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| Input current |
2.5 A |
| Output voltage |
21 V |
| Output current |
7.1 A |
| Compatible power plug types |
EU, UK |
| Packaging content |
| Warranty card |
Yes |
| Cables included |
AC |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
| Minimum system requirements |
CPU: Intel Core i5 6th generation or above
Memory: 8Gb or above
GPU: Intel HD Graphics 620 or above |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-18 - 60 °C |
| Operating relative humidity (H-H) |
0 - 55% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Black |
| Card reader integrated |
No |
| Data transfer rate |
10 Gbit/s |
| HD type |
8K Ultra HD |
| Number of displays supported |
3 |
| Maximum refresh rate |
120 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington, Nano |
| On/off switch |
Yes |
| LED indicators |
Yes |
| Plug and Play |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Country of origin |
Vietnam |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Packaging data |
| Package width |
245 mm |
| Package depth |
110 mm |
| Package height |
100 mm |
| Package weight |
1.15 kg |
| Logistics data |
| Products per master (outer) case |
6 pc(s) |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
CB, CE, ErP, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
Features
Kensington SD4842P EQ USB-C 10Gbps Triple Video Driverless Docking Station with 100W Power Delivery. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, HD type: 8K Ultra HD. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10...
Product Description
Ideal for professionals requiring a plug-and-play docking solution for USB-C laptops and organizations putting sustainability at the forefront, the SD4842P USB-C® 10Gbps Triple Video Docking Station amplifies visual productivity. Aimed at reducing our environmental impact, all the plastic material used in the SD4842P is composed of 73% post-consumer recycled content (PCR). The SD4842P supports up to 3 external Full HD monitors (1080p @ 120Hz) via 1 x DP and 2 x HDMI® connections. The dock also eliminates the need for cumbersome adapters, charging connected accessories without relying on a host laptop connection. Expand your screens with an effortless dock that will enhance your workflow.
Triple Video Displays
The SD4842P supports up to 3 external monitors (1080p @ 120Hz*) via 1 x DP and 2 x HDMI® connections.**For maximum resolution, the DSC-enabled laptop, docking station, monitor and laptop all need to support DSC v1.2.
Plug-and-Play
A simple plug-and-play solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® Alt-Mode laptops running Windows 10 or above. No drivers or downloads required.
Up to 100W Power Delivery
Supports up to 100W laptop charging using a compact GaN technology power supply unit. The plug-and-charge feature allows continuous charging of connected devices even when the host laptop is disconnected.
Sustainability Focused
Composed of 73% post-consumer recycled content (PCR), the plastic material used in the SD4842P docking station is aimed at reducing our environmental impact.
Multiple Productivity Ports
5 x plug-and-charge USB ports support peripherals with up to 10Gbps (2 x USB-C® 3.2 Gen2 (5V/3A) and 3 x USB-A 3.2 Gen2 (5V/0.9A). Also includes 1 x Gigabit Ethernet port and 1 x combo audio jack.
Fixed Host Cable and Compact GaN Power Supply
A fixed host cable ensures a reliable connection between the dock and the laptop, providing peace of mind against cable theft. The compact GaN technology power supply unit offers enhanced power efficiency.
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximise desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW).
