Stock Status: 1x unit in stock

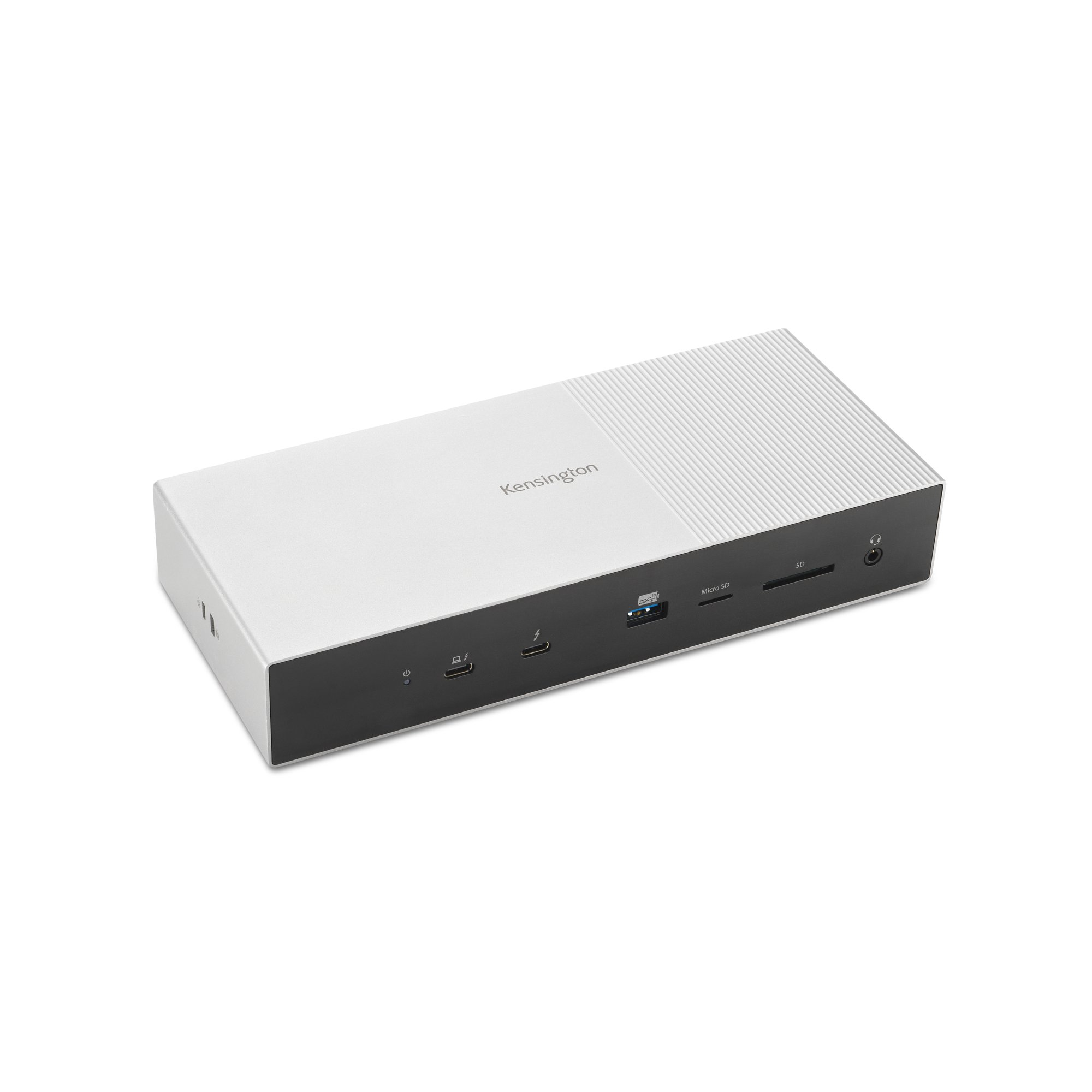

The SD5000T5 EQ Thunderbolt™ 5 Docking Station is designed for professionals requiring the highest performance. Windows and macOS compatible, the SD5000T5 boosts workflow efficiency with lightning-fast 80Gbps data transfers—and up to 120Gbps for video-intensive usage via Bandwidth Boost. It supports up to three 4K monitors @ 144Hz or two 8K monitors @ 60Hz, ensuring high-quality visuals and smooth multitasking. The single-cable solution delivers up to 140W Power Delivery to your laptop and peripherals—supporting low-latency efficiency and less cable clutter. Boasting 3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 ports, an audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet, this docking station maximizes productivity with cutting-edge technology. The SD5000T contains 100% post-consumer recycled (PCR) aluminum*. It includes Kensington DockWorks™ Software and is supported by a 3-year limited warranty. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
Specs
| Weight & dimensions |
| Width |
226 mm |
| Depth |
97 mm |
| Height |
40 mm |
| Weight |
975 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 5 |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| HDMI ports quantity |
0 |
| Headphone outputs |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery revision |
3.1 |
| USB Power Delivery up to |
140 W |
| Thunderbolt 5 ports quantity |
3 |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
2.5 A |
| Output voltage |
20 V |
| Output current |
9 A |
| Packaging content |
| Warranty card |
Yes |
| Cables included |
AC, Thunderbolt |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
| Minimum system requirements |
CPU: Intel Core HX series 13th /14th+ |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-18 - 60 °C |
| Operating relative humidity (H-H) |
0 - 55% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Performance |
| Product colour |
Black, Grey |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| HD type |
8K Ultra HD |
| Maximum digital resolution |
7680 x 4320 pixels |
| Number of displays supported |
3 |
| Maximum refresh rate |
540 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington, Nano |
| LED indicators |
Power |
| Plug and Play |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Country of origin |
China |
| Technical details |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Software |
| Windows operating systems supported |
Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 15.0 Sequoia |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
264 mm |
| Package depth |
125 mm |
| Package height |
154 mm |
| Package weight |
1.9 kg |
| Logistics data |
| Products per master (outer) case |
6 pc(s) |
Features
Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 8K Ultra HD. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro,..., Mac operating systems supported: Mac OS X 15.0 Sequoia
Product Description
The SD5000T5 EQ Thunderbolt™ 5 Docking Station is designed for professionals requiring the highest performance. Windows and macOS compatible, the SD5000T5 boosts workflow efficiency with lightning-fast 80Gbps data transfers—and up to 120Gbps for video-intensive usage via Bandwidth Boost. It supports up to three 4K monitors @ 144Hz or two 8K monitors @ 60Hz, ensuring high-quality visuals and smooth multitasking. The single-cable solution delivers up to 140W Power Delivery to your laptop and peripherals—supporting low-latency efficiency and less cable clutter. Boasting 3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 ports, an audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet, this docking station maximizes productivity with cutting-edge technology. The SD5000T contains 100% post-consumer recycled (PCR) aluminum*. It includes Kensington DockWorks™ Software and is supported by a 3-year limited warranty. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
