Stock Status: 1x unit in stock
Precision performance for critical applications
When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.
Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.
Specs
| Weight & dimensions |
| Display width |
965 mm |
| Display depth |
66.5 mm |
| Display height |
557.2 mm |
| Display weight |
13.5 kg |
| Display |
| Display diagonal |
108 cm (42.5") |
| Display technology |
LCD |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
700 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Panel type |
IPS |
| LED backlight |
Yes |
| LED backlighting type |
Direct-LED |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.073 billion colours |
| Pixel pitch |
0.245 x 0.245 mm |
| Active display area (W x H) |
941.2 x 529.4 mm |
| Display diagonal (metric) |
108 cm |
| Horizontal scan range |
15 - 135 kHz |
| Vertical scan range |
23 - 76 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| RGB colour space |
DCI-P3 |
| Packaging data |
| Package width |
1070 mm |
| Package depth |
161 mm |
| Package height |
675 mm |
| Package weight |
18 kg |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Power |
| Power consumption (typical) |
80 W |
| Power consumption (standby) |
2 W |
| Power consumption (sleep) |
0.5 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
67 kWh |
| Energy consumption (HDR) per 1000 hours |
65 kWh |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Energy efficiency scale |
A to G |
| Ports & interfaces |
| HDMI ports quantity |
3 |
| DVI port |
No |
| DisplayPorts quantity |
2 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| DisplayPorts in |
1 |
| DisplayPorts out |
1 |
| DisplayPort version |
1.2 |
| USB ports quantity |
4 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type |
USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN data rates |
100 Mbit/s |
| RS-232C |
Yes |
| Remote (IR) input |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 80% |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Screen shape |
Flat |
| Panel mounting interface |
300 x 300 mm |
| Bezel width (bottom) |
1.39 cm |
| Bezel width (side) |
9.9 mm |
| Bezel width (top) |
9.9 mm |
| Mounting type |
Wall |
| Performance |
| Purpose |
Universal |
| Picture-in-Picture |
Yes |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| International Protection (IP) code |
IP5X, IP2X |
| HDCP version |
2.2 |
| Features |
| Base material |
Metal |
| Wall mountable |
Yes |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet LAN data rates |
100 Mbit/s |
Features

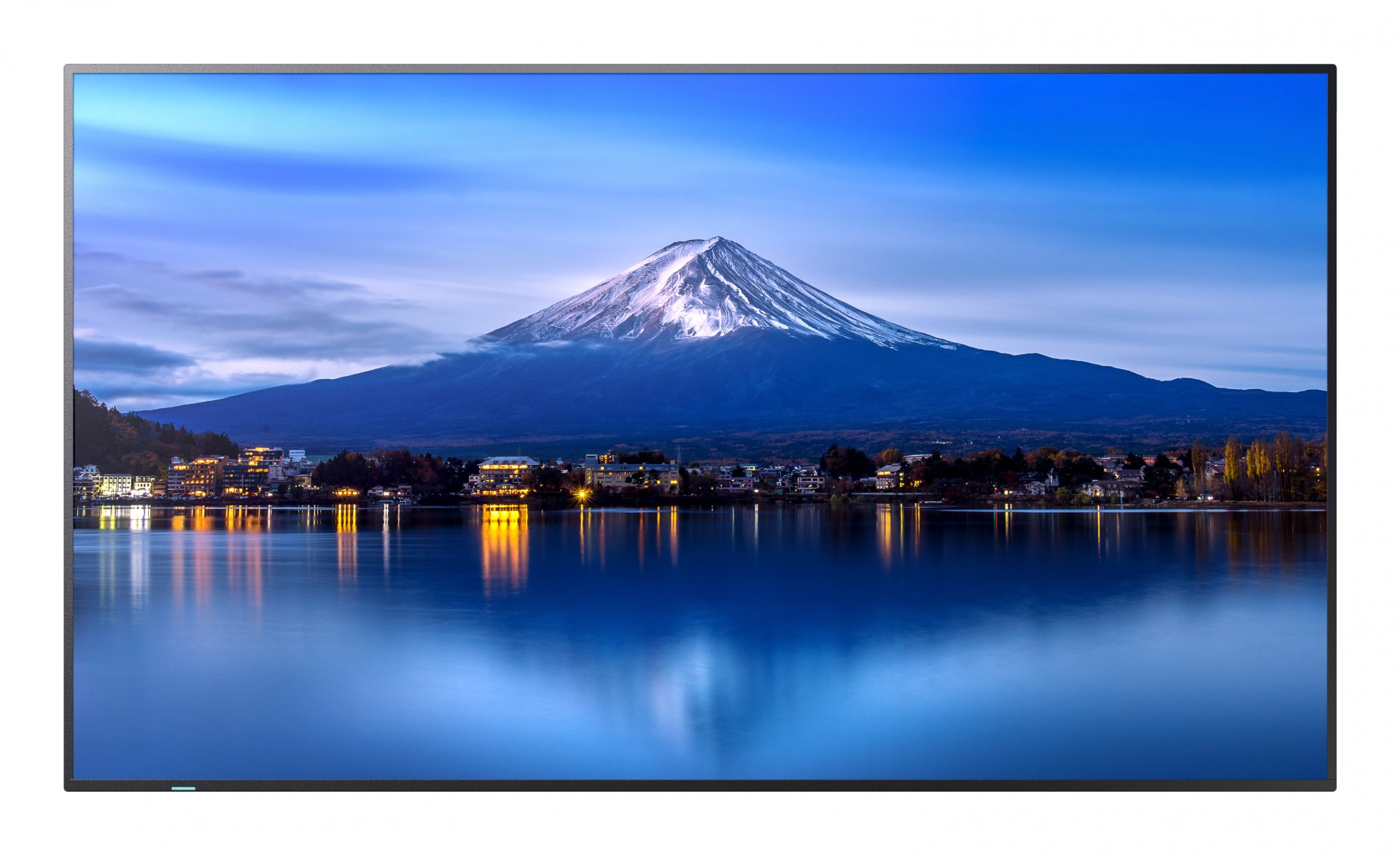

Sharp MultiSync P436. Product design: Digital signage flat panel. Display diagonal: 108 cm (42.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
Product Description
Precision performance for critical applications
When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.
Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.
