Stock Status: 1x unit in stock
Boost engagement in learning environments
When you need to engage your audience, you need to make your delivery interactive. NEC/Sharp’s expertise in touch screens for education brings forth the LC series, designed to meet the demand for Bring Your Own Device (BYOD) preferences. Equipped with seamless USB-C connectivity, just a single cable connects display to personal device whilst receiving charge in return. Size up your screen area by connecting another display or projector via HDMI-OUT to be seen by a bigger audience.
An all-in-one solution, the LC series features pre-installed functionality for instant interactivity, and with the EShare feature, content can be wirelessly shared between devices for best collaboration amongst peers and mentors.
For higher education in classrooms and small work groups, the LC series offers low cost, easy to use functionality to boost engangement in learning environments.
Specs
| Certificates |
| Certification |
CE; FCC; RCM; REACH; RoHS; UL/C-UL |
| Display |
| Display diagonal |
165.1 cm (65") |
| Display technology |
LCD |
| Display resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Touchscreen |
Yes |
| Native aspect ratio |
16:9 |
| Panel type |
IPS |
| LED backlight |
Yes |
| LED backlighting type |
Direct-LED |
| Display brightness |
450 cd/m² |
| Touchscreen technology |
Infrared |
| Number of simultaneous touchpoints |
20 |
| Multi-touch |
Yes |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.07 billion colours |
| Pixel pitch |
0.372 x 0.372 mm |
| Active display area (W x H) |
1428.5 x 803.5 mm |
| Display diagonal (metric) |
163.9 cm |
| Surface hardness |
8 |
| Ports & interfaces |
| HDMI ports quantity |
4 |
| DVI port |
No |
| USB port |
Yes |
| HDMI input ports quantity |
3 |
| HDMI output ports quantity |
1 |
| VGA (D-Sub) input ports |
1 |
| DisplayPorts quantity |
1 |
| USB ports quantity |
6 |
| USB connector type |
USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity |
2 |
| Audio (L/R) in |
1 |
| RS-232 interface |
Yes |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
30 W |
| Design |
| Product colour |
Black |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Screen shape |
Flat |
| Panel mounting interface |
600 x 400 mm |
| Bezel width (bottom) |
5.32 cm |
| Bezel width (side) |
2.19 cm |
| Bezel width (top) |
2.19 cm |
| Mounting type |
Wall |
| Performance |
| Operating hours (hours/days) |
16/7 |
| Pen type |
Passive pen |
| HDCP |
Yes |
| Power |
| Power consumption (typical) |
390 W |
| Power consumption (standby) |
2 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Computer system |
| Computer system |
Yes |
| Built-in processor |
Yes |
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| Processor architecture |
ARM Cortex-A55 |
| Processor cores |
4 |
| Internal memory |
8 GB |
| Internal storage capacity |
16 GB |
| Operating system installed |
Android 11 |
| Weight & dimensions |
| Display width |
1511.6 mm |
| Display depth |
85.9 mm |
| Display height |
917.9 mm |
| Display weight |
38.5 kg |
| Packaging data |
| Package width |
1660 mm |
| Package depth |
225 mm |
| Package height |
1010 mm |
| Package weight |
49 kg |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Stylus pen |
Yes |
| Number of stylus pens |
2 |
| Power adapter included |
Yes |
| Cables included |
AC, USB |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
Features

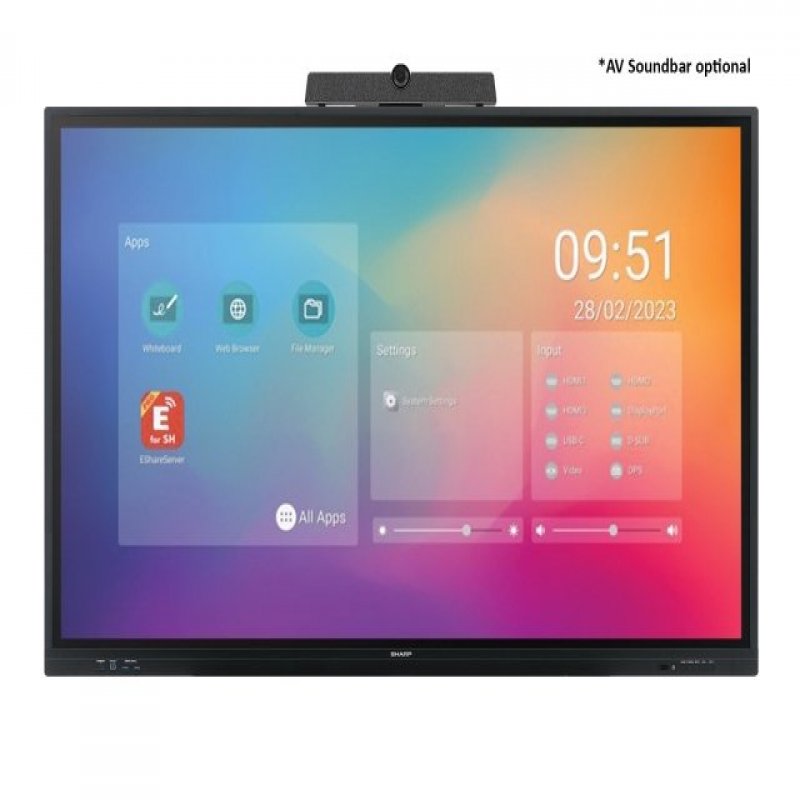

Sharp PN-LC652. Display diagonal: 165.1 cm (65"), Display technology: LCD, Display resolution: 3840 x 2160 pixels. RMS rated power: 30 W. Product colour: Black, Orientation: Horizontal, Screen shape: Flat. USB connector type: USB Type-A, USB Type-B, USB Type-C. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor architecture: ARM Cortex-A55
Product Description
Boost engagement in learning environments
When you need to engage your audience, you need to make your delivery interactive. NEC/Sharp’s expertise in touch screens for education brings forth the LC series, designed to meet the demand for Bring Your Own Device (BYOD) preferences. Equipped with seamless USB-C connectivity, just a single cable connects display to personal device whilst receiving charge in return. Size up your screen area by connecting another display or projector via HDMI-OUT to be seen by a bigger audience.
An all-in-one solution, the LC series features pre-installed functionality for instant interactivity, and with the EShare feature, content can be wirelessly shared between devices for best collaboration amongst peers and mentors.
For higher education in classrooms and small work groups, the LC series offers low cost, easy to use functionality to boost engangement in learning environments.
