Stock Status: 1x unit in stock
Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Specs
| Weight & dimensions |
| Display width |
1927.6 mm |
| Display depth |
83.2 mm |
| Display height |
1099.1 mm |
| Display weight |
47 kg |
| Display |
| Display diagonal |
2.18 m (86") |
| Display technology |
LCD |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
550 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Panel type |
IPS |
| LED backlight |
Yes |
| LED backlighting type |
Direct-LED |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.073 billion colours |
| Display diagonal (metric) |
217.2 cm |
| Horizontal scan range |
15 - 135 kHz |
| Vertical scan range |
23 - 76 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| Native refresh rate |
60 Hz |
| RGB colour space |
NTSC |
| Packaging data |
| Package width |
2090 mm |
| Package depth |
225 mm |
| Package height |
1225 mm |
| Package weight |
64 kg |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Power |
| Power consumption (standby) |
0.5 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
189 kWh |
| Energy consumption (HDR) per 1000 hours |
167 kWh |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Ports & interfaces |
| HDMI ports quantity |
3 |
| DVI port |
No |
| DisplayPorts quantity |
2 |
| USB port |
Yes |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| DisplayPorts in |
1 |
| DisplayPorts out |
1 |
| DisplayPort version |
1.2 |
| USB ports quantity |
4 |
| USB connector type |
USB Type-A, USB Type-C |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| RS-232C |
Yes |
| Remote (IR) input |
1 |
| Audio Return Channel (ARC) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
-20 - 60% |
| Other features |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Screen shape |
Flat |
| Panel mounting interface |
600 x 400 mm |
| Bezel width (bottom) |
1.48 cm |
| Bezel width (side) |
1.43 cm |
| Bezel width (top) |
1.43 cm |
| Mounting type |
Wall |
| Performance |
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), REACH, RoHS, UKCA, UL |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, HDMI |
| Sensors |
| Ambient light sensor |
Yes |
| Eco sensor |
Yes |
| Network |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
100 Mbit/s |
Features

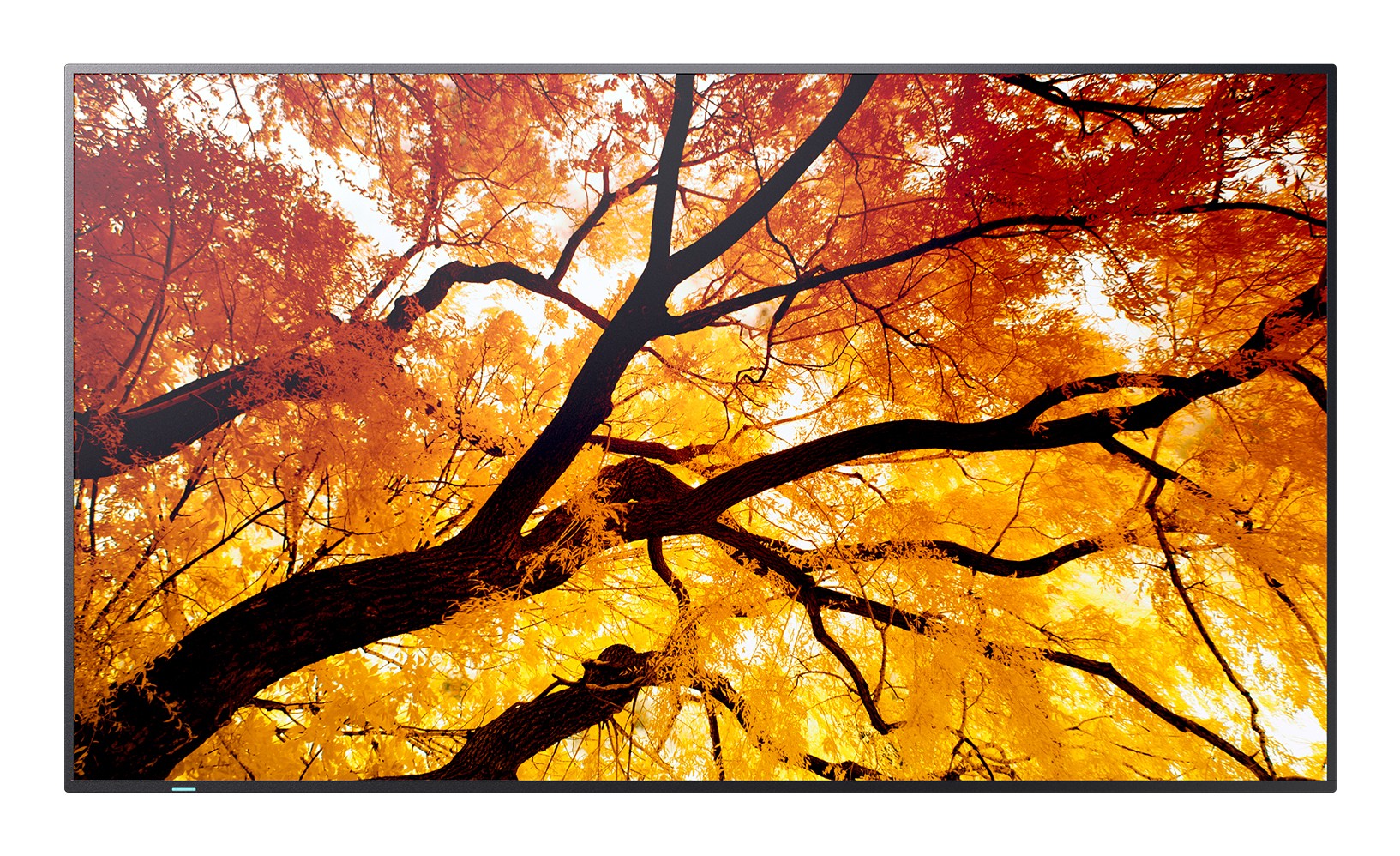

Sharp MultiSync M862. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
Product Description
Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
