Super silent yet brilliantly versatile

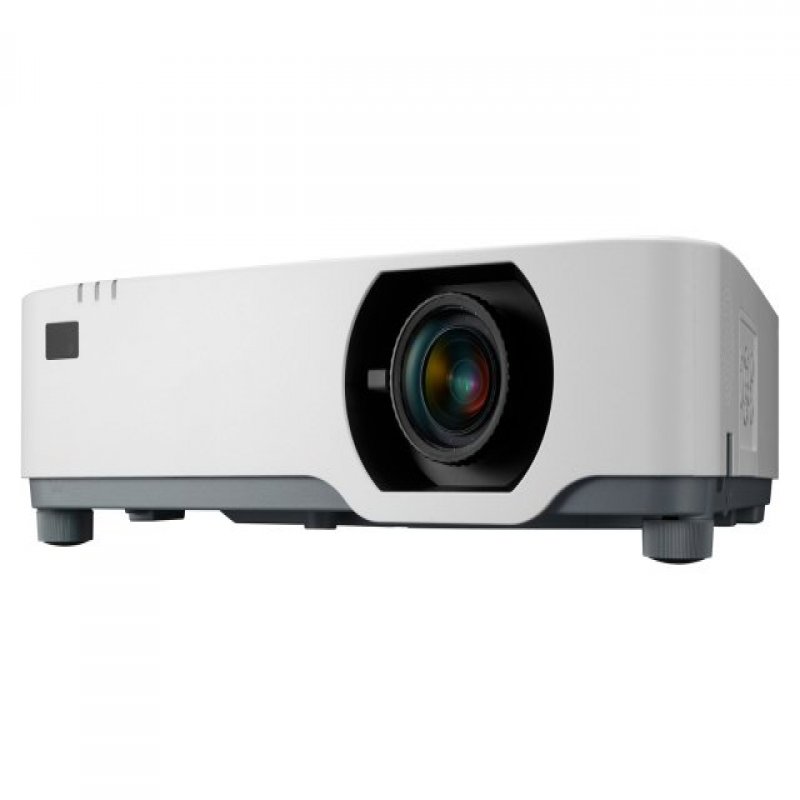

Innovation grounded in the true needs of the user results in the P627UL, a laser projector that is so silent it goes unnoticed yet for the 6,200 ANSI lumen image projection, perfectly visible in brightly lit spaces. A new standard in silent operation, 22dB in Eco mode is quieter than the ticking of a watch and is unsurpassed by any other installation projector. With 4K@30Hz input processing, comprehensive connectivity and supporting WUXGA resolution, the future-proofed projector delivers an eye-pleasing visual experience.
Install and forget - requiring zero maintenance over its long 20,000 hour life, the completely sealed optical engine and laser light source means filter and lamp replacement is obsolete; paired with a minimal power consumption of just 318W in normal mode, the P627UL ensures low operational costs.
With optional WiFi and embedded MultiPresenter function for wireless presentation and screen sharing, this is the ideal meeting room and classroom tool, but also meets the needs of rental and staging companies and digital signage use cases.
Specs
| Weight & dimensions |
| Weight |
9.7 kg |
| Width |
480 mm |
| Depth |
407 mm |
| Height |
122 mm |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Projector |
| Projector brightness |
6200 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
600000:1 |
| Native aspect ratio |
16:10 |
| Smart projector |
No |
| Screen size compatibility |
762 - 7620 mm (30 - 300") |
| Projection distance |
0.8 - 12.9 m |
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-30 - 30° |
| Video |
| Analog signal format system |
NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD |
Yes |
| 3D |
No |
| Supported graphics resolutions |
1920 x 1200 (WUXGA), 3840 x 2160 |
| Display |
| Built-in display |
No |
| Lens system |
| Focus |
Manual |
| Focal length range |
17.2 - 27.7 mm |
| Aperture range (F-F) |
1.5 - 2.1 |
| Zoom capability |
Yes |
| Zoom type |
Manual |
| Zoom ratio |
1.6:1 |
| Horizontal lens shift range |
-29 - 29% |
| Vertical lens shift range |
0 - 60% |
| Power |
| Power source |
AC |
| Power consumption (typical) |
318 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (economy mode) |
237 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
2 |
| DVI port |
No |
| Audio (L/R) in |
1 |
| Serial interface type |
RJ-45, RS-232 |
| HDMI connector type |
Full-size |
| HDBaseT port |
Yes |
| Service port type |
USB Type-B |
| USB 2.0 ports quantity |
1 |
| USB 2.0 Type-A ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
1 |
| Audio (L/R) out |
1 |
| PC in (D-Sub) |
Yes |
| AC (power) in |
Yes |
| Networking |
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Web browser |
Yes |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Remote control type |
IR |
| Batteries included |
Yes |
| Cables included |
AC |
| Manual |
Yes |
| Design |
| Product type |
Large venue projector |
| Market positioning |
Home cinema |
| Product colour |
White |
| Placement |
Ceiling, Desktop |
| LED indicators |
Yes |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
20 W |
| Number of built-in speakers |
1 |
| Features |
| Noise level |
27 dB |
| Interactive |
No |
| Noise level (economic mode) |
22 dB |
| HDCP |
Yes |
| Projection modes |
Ceiling, Front |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
30 |
| HID support |
Yes |
| Certification |
CE; EAC; ErP; RoHS; TUEV, TÜV |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Logistics data |
| Quantity per pack |
1 pc(s) |
Features
NEC P627UL. Projector brightness: 6200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h. Focus: Manual, Focal length range: 17.2 - 27.7 mm, Aperture range (F-F): 1.5 - 2.1. Analog signal format system: NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM, Supported graphics resolutions: 1920 x 1200 (WUXGA), 3840 x 2160. Serial interface type: RJ-45, RS-232, HDMI connector type: Full-size, Service port type: USB Type-B
Product Description
Super silent yet brilliantly versatile
Innovation grounded in the true needs of the user results in the P627UL, a laser projector that is so silent it goes unnoticed yet for the 6,200 ANSI lumen image projection, perfectly visible in brightly lit spaces. A new standard in silent operation, 22dB in Eco mode is quieter than the ticking of a watch and is unsurpassed by any other installation projector. With 4K@30Hz input processing, comprehensive connectivity and supporting WUXGA resolution, the future-proofed projector delivers an eye-pleasing visual experience.
Install and forget - requiring zero maintenance over its long 20,000 hour life, the completely sealed optical engine and laser light source means filter and lamp replacement is obsolete; paired with a minimal power consumption of just 318W in normal mode, the P627UL ensures low operational costs.
With optional WiFi and embedded MultiPresenter function for wireless presentation and screen sharing, this is the ideal meeting room and classroom tool, but also meets the needs of rental and staging companies and digital signage use cases.
