Stock Status: 1x unit in stock
Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps

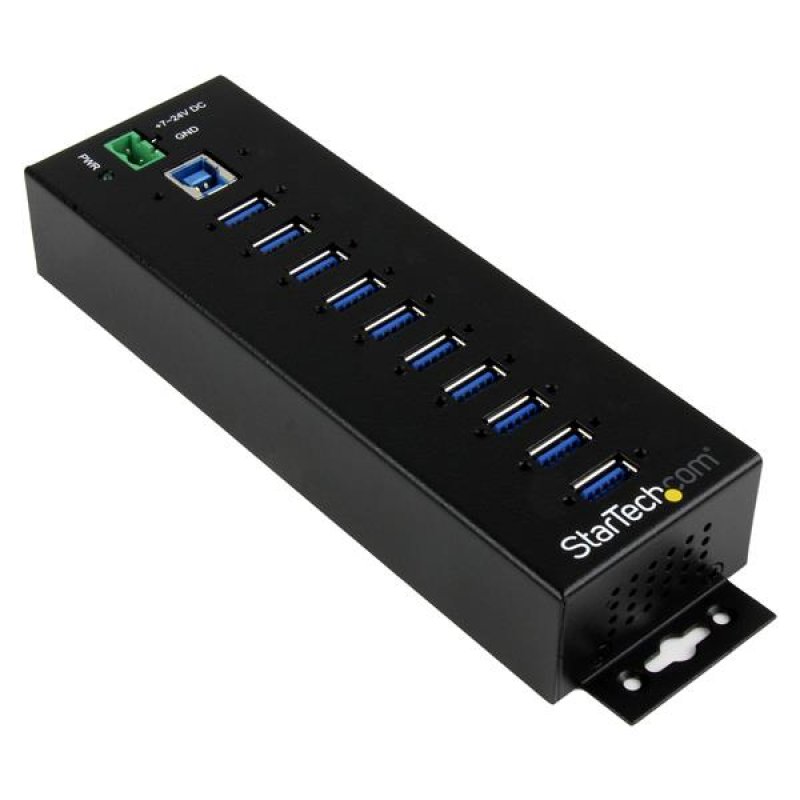

This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 10-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.0 hub offers 10 connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.
It supports wide-range 10-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation.
Works with Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.
The HB30A10AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- Mount industrial USB hub where required with built-in mounting brackets or included DIN rails
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Power supply type |
AC |
| Power consumption (typical) |
65 W |
| Input voltage |
100 - 240 V |
| Input current |
1.4 A |
| Output voltage |
20 V |
| Output current |
3.25 A |
| Weight & dimensions |
| Width |
55 mm |
| Depth |
198 mm |
| Height |
30 mm |
| Weight |
352 g |
| Ports & interfaces |
| Ports quantity |
10 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
10 |
| Terminal block port |
Y |
| Other features |
| Chipset |
Genesys Logic - GL3523 |
| Packaging content |
| AC adapter included |
Y |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Cables included |
USB |
| Quick installation guide |
Y |
| DIN rail kit included |
Y |
| Performance |
| Mean time between failures (MTBF) |
126106 h |
| Logistics data |
| Master (outer) case width |
40 cm |
| Master (outer) case length |
51 cm |
| Master (outer) case height |
32 cm |
| Quantity per master (outer) case |
14 pc(s) |
| Products per master (outer) case |
14 pc(s) |
| Networking |
| UASP support |
Y |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
190 mm |
| Package depth |
295 mm |
| Package height |
70 mm |
| Package weight |
1.4 kg |
| Features |
| Data transfer rate |
5000 Mbit/s |
| Product colour |
Black |
| Surge protection |
Y |
| LED indicators |
Power |
| Plug and Play |
Y |
| Certification |
RoHS, REACH, CE, FCC, TAA |
Features
StarTech.com 10 Port USB Hub with Power Adapter - Surge Protection - Metal Industrial USB 3.0 Data Transfer Hub - Din Rail, Wall or Desk Mountable - High Speed USB 3.1 Gen 1 5Gbps Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, LED indicators: Power. Power supply type: AC, Power consumption (typical): 65 W, Input voltage: 100 - 240 V. Width: 55 mm, Depth: 198 mm, Height: 30 mm. Quantity per pack: 1 pc(s), Package width: 190 mm, Package depth: 295 mm
Product Description
Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps
This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 10-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.0 hub offers 10 connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.
It supports wide-range 10-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation.
Works with Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.
The HB30A10AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- Mount industrial USB hub where required with built-in mounting brackets or included DIN rails
