Stock Status: 1x unit in stock

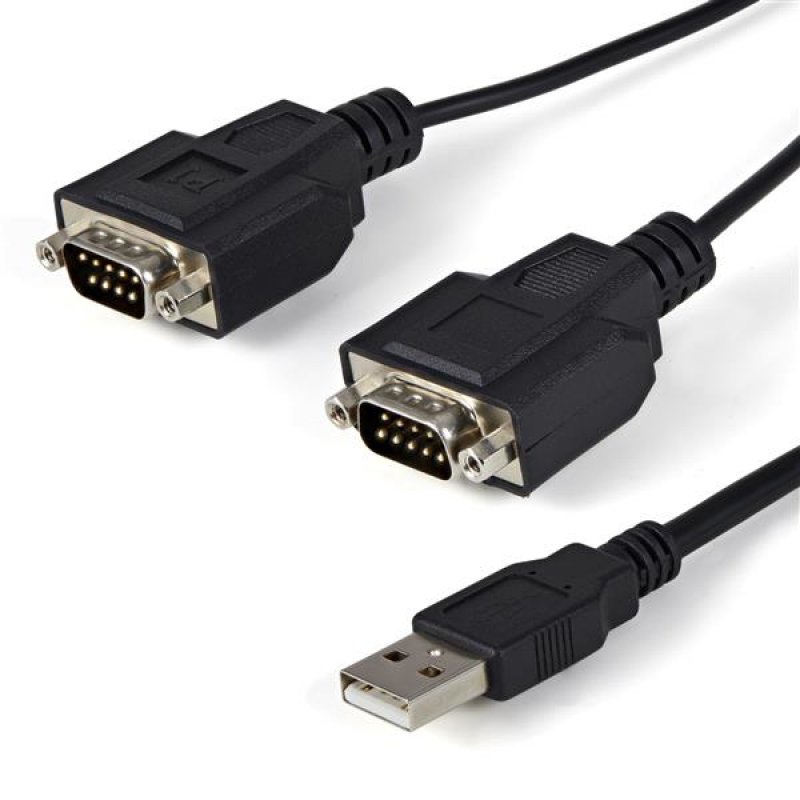

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Simple installation and operation with COM port retention provides robust connectivity for serial devices
- Portable USB-Powered design requires no bulky power adapter or outlet
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
Specs
| Ports & interfaces |
| Connector 1 |
USB 2.0 A |
| Connector 2 |
DB9 |
| Connector gender |
Male/Male |
| Cable length |
2.133 m |
| Packaging data |
| Package width |
146 mm |
| Package depth |
212 mm |
| Package height |
39 mm |
| Package weight |
280 g |
| Weight & dimensions |
| Width |
45 mm |
| Depth |
2133 mm |
| Height |
20 mm |
| Weight |
159 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Relative humidity |
5 - 95% |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Manual |
Y |
| Drivers included |
Y |
| Performance |
| Product colour |
Black |
| Housing material |
Plastic |
| Chipset |
FTDI - FT2232D |
| Data bits |
7,8 |
| Stop bits |
1,2 |
| Baud rate |
921.6 Kbit/s |
| Parity bit |
Even,Mark,N,Odd,Space |
| FIFO (First In, First Out) |
128 B |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
| Compatible operating systems |
Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ 2000/ CE(4.2+), Windows Server 2008 R2/ 2003(32/64), Mac OS 9.x, 10.x, Linux |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
146 mm |
| Package depth |
212 mm |
| Package height |
39 mm |
| Package weight |
280 g |
| Features |
| Product colour |
Black |
| Cable length |
2.1 m |
| Connector 1 |
USB 2.0 A |
| Connector 2 |
DB9 |
| Connector gender |
Male/Male |
| Weight |
156 g |
| Certification |
CE, FCC, TAA, REACH |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
Features
StarTech.com 2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention. Product colour: Black, Cable length: 2.1 m, Connector 1: USB 2.0 A. Quantity per pack: 1 pc(s), Package width: 146 mm, Package depth: 212 mm
Product Description
The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.
This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Simple installation and operation with COM port retention provides robust connectivity for serial devices
- Portable USB-Powered design requires no bulky power adapter or outlet
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
