Add two USB 3.0 ports to your desktop computer through a PCI Express slot

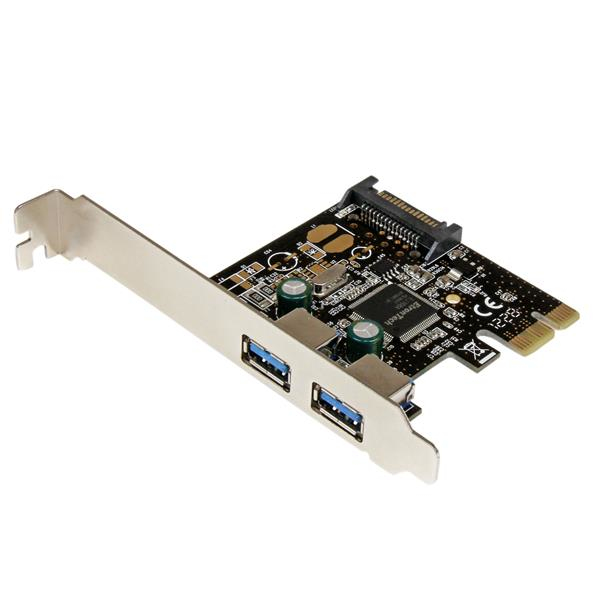

The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth
- Fits into full or low profile/small form factor (SFF) systems, with a dual profile design
Specs
| System requirements |
| Windows operating systems supported |
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
| Server operating systems supported |
Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2 |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
USB 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
0 - 80 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Width |
21 mm |
| Depth |
80 mm |
| Height |
120 mm |
| Weight |
60 g |
| Design |
| Internal |
Y |
| RoHS compliance |
Y |
| Packaging data |
| User guide |
Y |
| Package width |
145 mm |
| Package depth |
170 mm |
| Package height |
32 mm |
| Package weight |
130 g |
| Features |
| Data transfer rate (max) |
5 Gbit/s |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1). Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise..., Server operating systems supported: Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2. Width: 21 mm, Depth: 80 mm, Height: 120 mm. Package width: 145 mm, Package depth: 170 mm, Package height: 32 mm
Product Description
Add two USB 3.0 ports to your desktop computer through a PCI Express slot
The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth
- Fits into full or low profile/small form factor (SFF) systems, with a dual profile design
