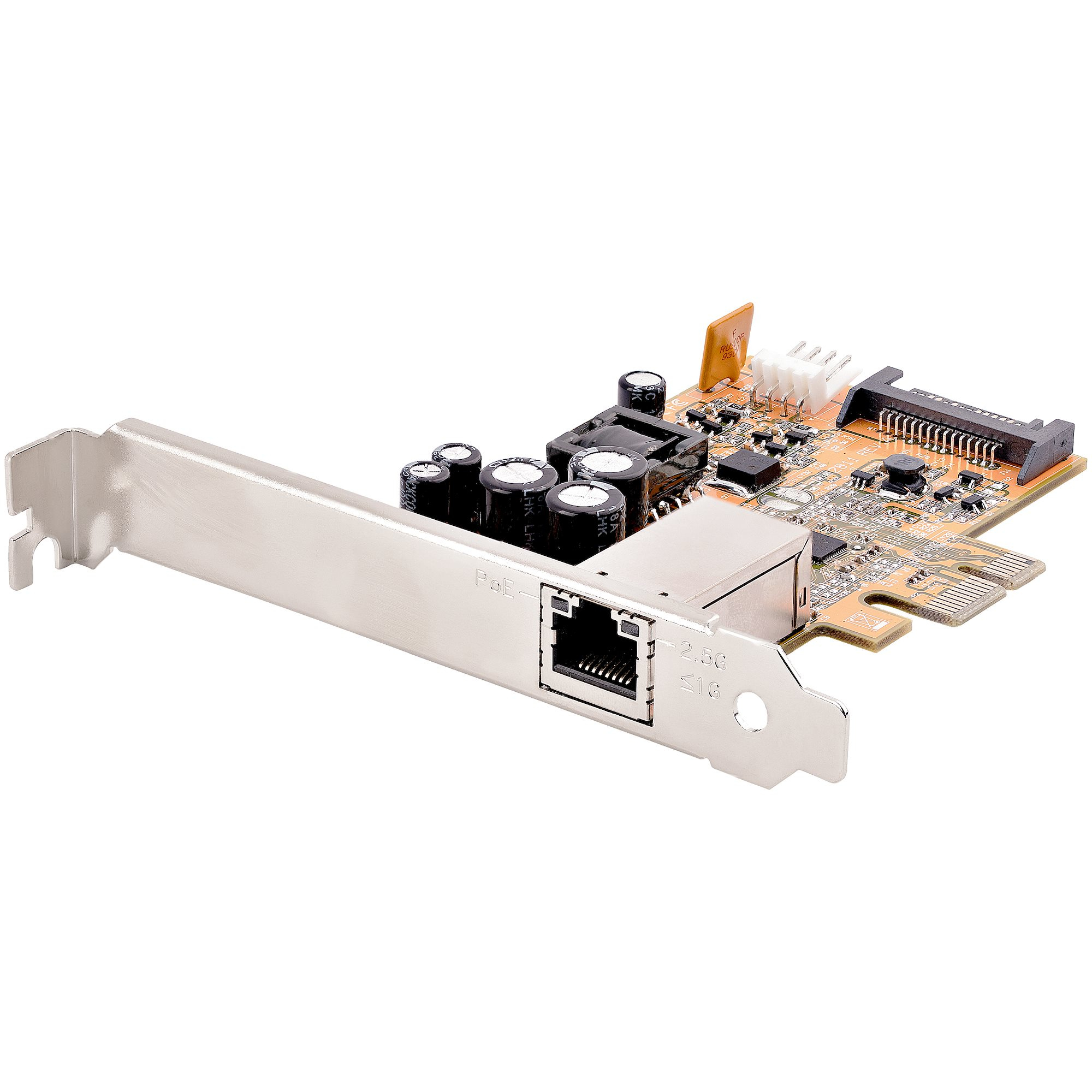

startech 30w 2.5gbps Pcie Poe Network Card Nic St1000pexpse - AD01
[ST1000PEXPSE]

Name: startech 30w 2.5gbps Pcie Poe Network Card Nic St1000pexpse - AD01
Brand: STARTECH
SKU: ST1000PEXPSE
Price: 88.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: ST1000PEXPSE

Manufacturer: STARTECH

Condition: New

Short Description:

startech 30w 2.5gbps Pcie Poe Network Card Nic St1000pexpse

£88.00
£105.60 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-TThe Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.Versatile Network PoE CardThe PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.Enhance Existing HardwareThe network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Reviews

Specs

Networking
Maximum data transfer rate	2500 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Y
Auto MDIX IEEE	Y
Full duplex	Y
Jumbo frames support	Y
Jumbo frames	16000
VLAN tagging	Y
Maximum operating distance	100 m
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019
Weight & dimensions
Width	63 mm
Depth	95 mm
Height	15 mm
Weight	220 g
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE) ports quantity	1
PCI version	2.1
PCI Card form factor	Full-height (low-profile)
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Power
Output voltage	48 V
Design
Internal	Y
Component for	PC/Server
Chipset	Realtek RTL8125B
LED indicators	Y
Logistics data
Master (outer) case width	530 mm
Master (outer) case length	440 mm
Master (outer) case height	340 mm
Products per master (outer) case	50 pc(s)
Packaging data
Package width	207 mm
Package depth	144 mm
Package height	38 mm
Package weight	220 g
Packaging content
Mounting brackets included	Y
Quick installation guide	Y
Sustainability
Sustainability compliance	Y
Sustainability certificates	CE, RoHS

Features

StarTech.com 1 Port 2.5Gbps PoE Network Card, PCIe Ethernet Card w/RJ45, 30W 802.3at PoE NIC for Desktops/Servers, Network PoE LAN Adapter w/Low-Profile Bracket, NBaseT, Windows/Linux. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s

Product Description

IEEE 802.3af and IEEE 802.3at (PoE/PoE+) | 2.5GBASE-TThe Power over Ethernet PCIe network card enables multigigabit speeds of 2.5/1Gbps and 100/10Mbps. This PoE LAN adapter can provide up to 25.5 W of power to a connected device. It combines a network data connection and power over a single Cat5e (or better) Ethernet cable. This PoE NIC is the ideal solution to provide both power and network communication to a remote installation.Versatile Network PoE CardThe PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48 V DC and 25.5 W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.Enhance Existing HardwareThe network interface card connects to an available x1 PCIe 2.1 (or higher) expansion slot. The card is shipped with a standard-profile bracket. It includes a low-profile bracket for installation in various computer chassis. Access up to 2.5 Gbps (NBASE-T) speeds using Cat5e cabling to utilize existing networks and equipment.Take advantage of advanced features such as Audio-Video Bridging (AVB) for transmitting real-time content over Ethernet, VLAN tagging, 16K jumbo frame, full-duplex, and PXE.This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
