Stock Status: 1x unit in stock

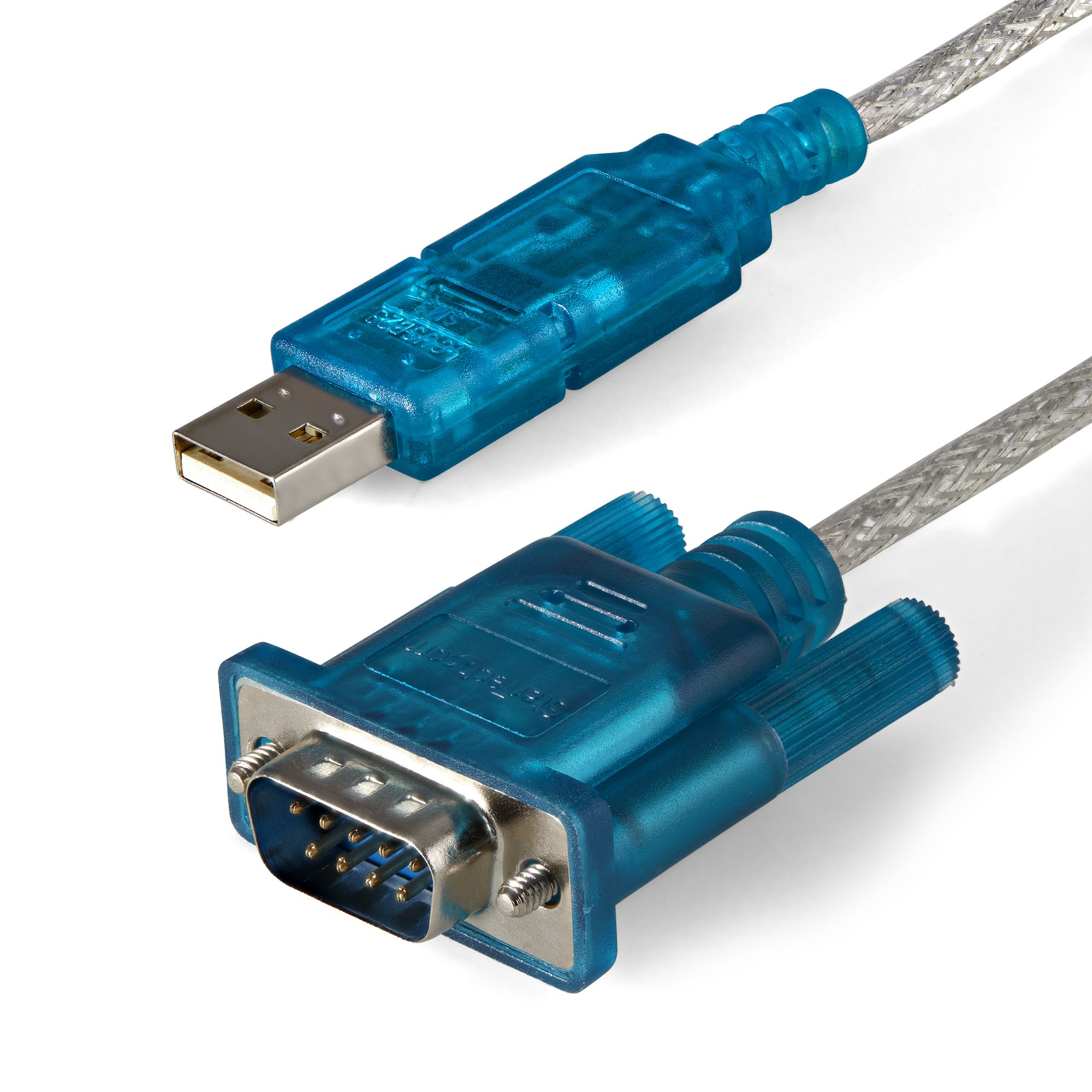

The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.
Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.
Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specs
| Ports & interfaces |
| Connector 1 |
DB-9 |
| Connector 2 |
USB 2.0 A |
| Connector gender |
Male/Male |
| Cable length |
0.9 m |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Packaging data |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
15 mm |
| Package weight |
70 g |
| Package length |
20 cm |
| Weight & dimensions |
| Width |
35 mm |
| Depth |
914 mm |
| Height |
15 mm |
| Weight |
56 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Relative humidity |
0 - 65% |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Performance |
| Product colour |
Blue, Transparent |
| Housing material |
Plastic |
| Chipset |
Prolific - PL2303HXD |
| Baud rate |
921.6 Kbit/s |
| FIFO (First In, First Out) |
192 B |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
| Compatible operating systems |
Windows 98SE/ ME/ 2000/ XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, MAC X, Linux |
| Technical details |
| Sustainability certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 3ft USB to RS232 DB9 Serial Adapter Cable - M/M. Connector 1: DB-9, Connector 2: USB 2.0 A, Cable length: 0.9 m. Product colour: Blue, Transparent
Product Description
The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.
Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.
Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
