Stock Status: 1x unit in stock
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a longer 10 foot distance – Black

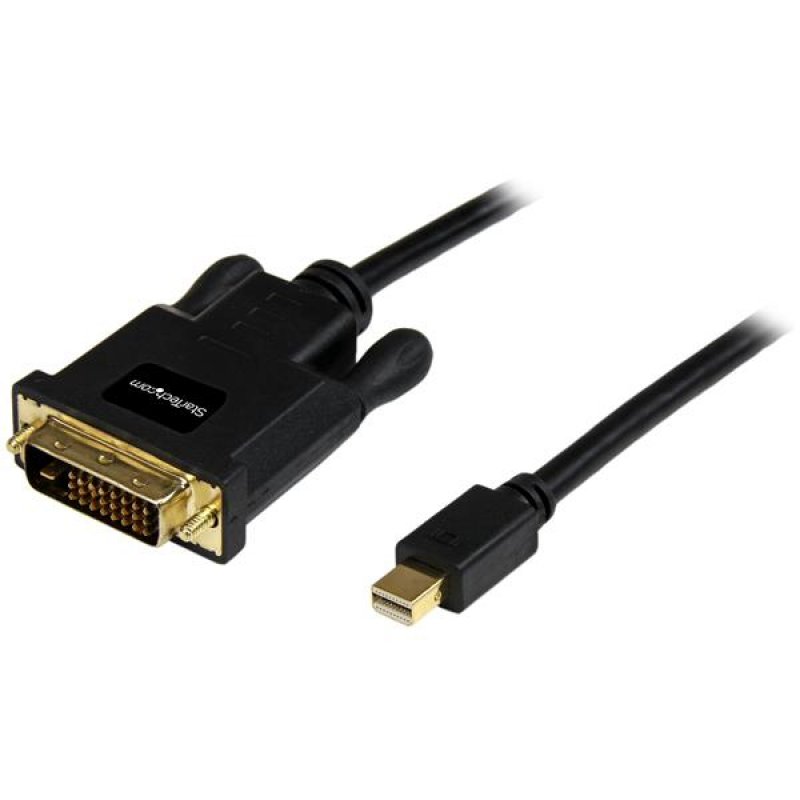

The MDP2DVIMM10B Mini DisplayPort® to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Features |
| Cable length |
3 m |
| Connector 1 |
mini DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| DisplayPort version |
1.2 |
| Dual Link DVI |
No |
| Maximum resolution |
1920 x 1200 pixels |
| Supported video modes |
1080p |
| Product colour |
Black |
| Chipset |
NXP - 3361 |
| Plug and Play |
Yes |
| Converter type |
Passive |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
0 - 70 °C |
| Operating relative humidity (H-H) |
40 - 85% |
| Weight & dimensions |
| Weight |
140 g |
| Width |
38 mm |
| Depth |
3000 mm |
| Height |
15 mm |
| Technical details |
| Compliance certificates |
RoHS, CE |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
420 mm |
| Master (outer) case length |
415 mm |
| Master (outer) case height |
435 mm |
| Products per master (outer) case |
100 pc(s) |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
160 mm |
| Package depth |
240 mm |
| Package height |
20 mm |
| Package weight |
162 g |
Features
StarTech.com 10ft (3m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor. Cable length: 3 m, Connector 1: mini DisplayPort, Connector 2: DVI-D. Weight: 140 g, Width: 38 mm, Depth: 3000 mm. Quantity per pack: 1 pc(s), Package width: 160 mm, Package depth: 240 mm. Master (outer) case width: 420 mm, Master (outer) case length: 415 mm, Master (outer) case height: 435 mm
Product Description
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a longer 10 foot distance – Black
The MDP2DVIMM10B Mini DisplayPort® to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
