Stock Status: 1x unit in stock

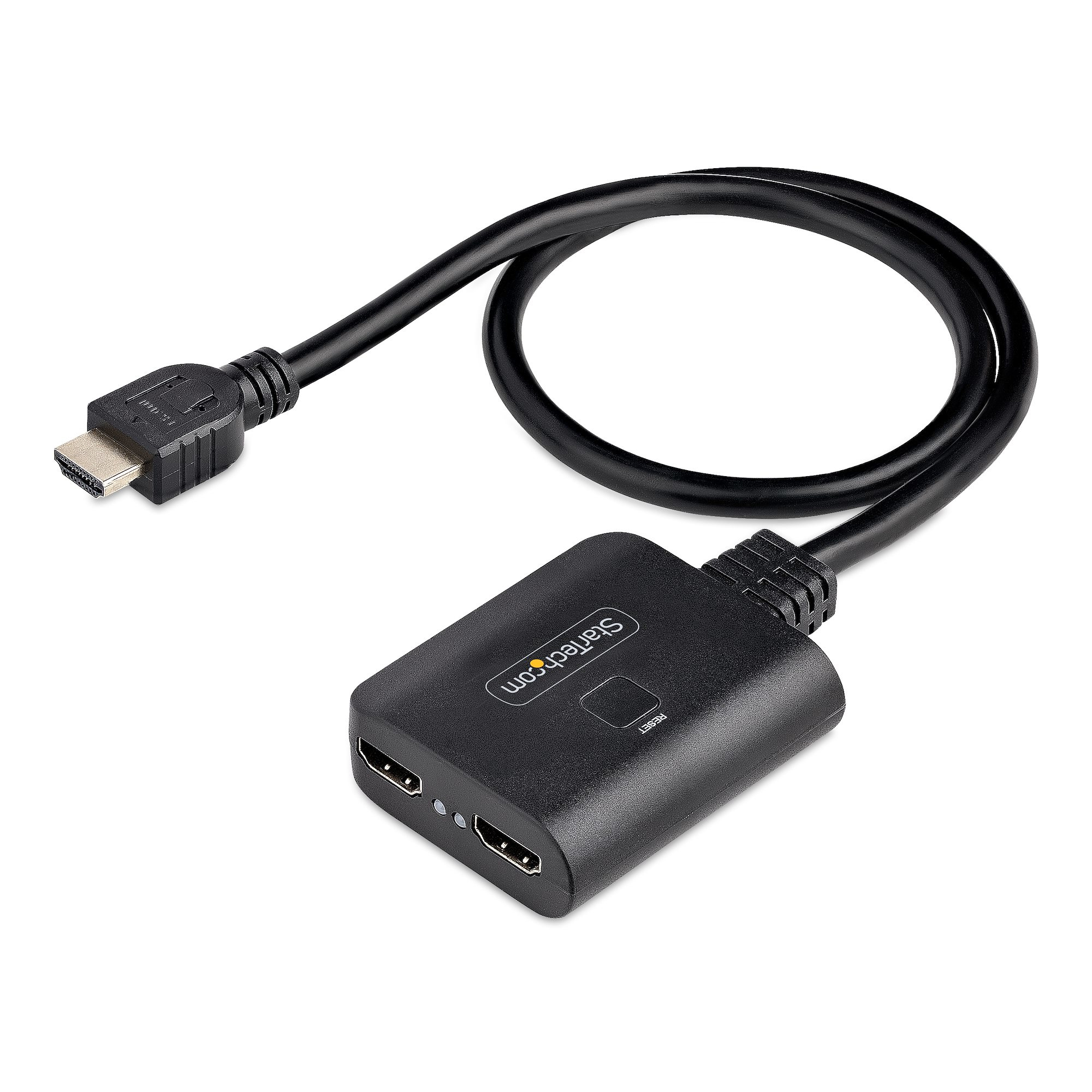

Send a 4K 60Hz HDMI signal to two separate displays simultaneously, powered with a nearby USB port
This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.
4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered
The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specs
| Technical details |
| Supported audio channels |
7.1 |
| Compliance certificates |
CE, RoHS |
| Packaging content |
| Manual |
Yes |
| Cables included |
USB Type-A to Micro-USB Type-B |
| Ports & interfaces |
| Video ports quantity |
2 |
| Video port type |
HDMI |
| Video out |
2x HDMI |
| HDMI version |
2.0 |
| Weight & dimensions |
| Width |
55 mm |
| Depth |
65 mm |
| Height |
19 mm |
| Weight |
92 g |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
0.3 A |
| Output voltage |
5 V |
| Output current |
1 A |
| USB powered |
Yes |
| Packaging data |
| Package width |
190 mm |
| Package depth |
145 mm |
| Package height |
30 mm |
| Package weight |
168 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Logistics data |
| Master (outer) case width |
630 mm |
| Master (outer) case length |
470 mm |
| Master (outer) case height |
220 mm |
| Products per master (outer) case |
60 pc(s) |
| Features |
| Maximum resolution |
4096 x 2160 pixels |
| Product colour |
Black |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| HD type |
4K Ultra HD |
| Maximum operating distance |
5 m |
| Maximum refresh rate |
60 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| Cable length |
0.5 m |
| Data transfer rate |
18 Gbit/s |
| HDCP |
Yes |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| LED indicators |
Power |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com 2-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter 1 In 2 Out, 1x2 HDMI Display/Output Splitter, HDR/HDCP, 20in (50cm) Built-in HDMI Cable. Video port type: HDMI, Video out: 2x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS). AC input voltage: 100 - 240 V, Input current: 0.3 A, Output voltage: 5 V. Width: 55 mm, Depth: 65 mm, Height: 19 mm. Package width: 190 mm, Package depth: 145 mm, Package height: 30 mm
Product Description
Send a 4K 60Hz HDMI signal to two separate displays simultaneously, powered with a nearby USB port
This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.
4K 60Hz Resolution
This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.
USB Powered
The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.
Robust Installation Options
This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.
This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
