Stock Status: 1x unit in stock
Dual Monitor Adapter | Windows | Thunderbolt 3 Compatible

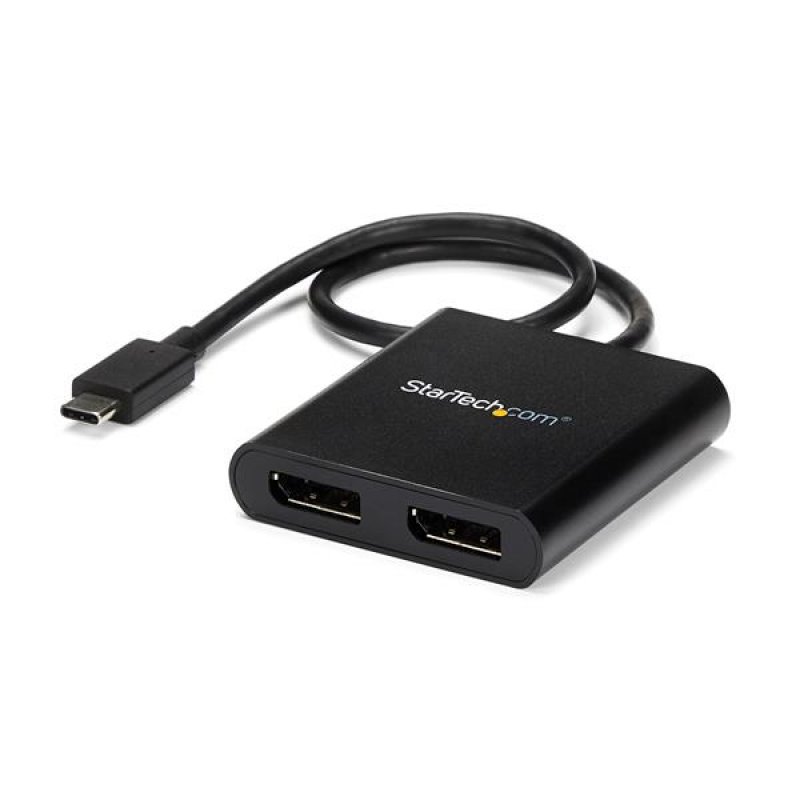

This USB-C to DisplayPort MST Hub lets you connect two DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.
Multitasking Made Easy
With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multitasking much easier.
Using this USB-C to dual DisplayPort monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.
Astonishing Picture Quality
MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K, the dual-monitor splitter is perfect for all high-resolution applications such as graphic design and CAD drawing.
Hassle-Free Setup
Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C dual-monitor adapter is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.
MSTCDP122DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 2x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible
- CONVENIENCE: With a built-in 1ft cable, this bus-powered 2-port MST hub provides an easy method to connect up to two independent screens with any DisplayPort over USB Type-C Windows host device
- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers
Specs
| Weight & dimensions |
| Width |
58 mm |
| Depth |
386 mm |
| Height |
14 mm |
| Weight |
44 g |
| USB cable length |
0.324 m |
| Performance |
| DVI output |
No |
| HDMI output |
No |
| DisplayPort output |
Yes |
| Number of displays supported |
2 |
| USB connector type |
USB Type-C |
| USB connector gender |
Male |
| DisplayPort version |
1.2 |
| Maximum resolution |
3840 x 2160 pixels |
| Refresh rate at maximum resolution |
30 Hz |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Chipset |
MegaChips - STDP4320, VIA/VLI - VL100 |
| Certification |
CE, FCC, REACH |
| Packaging content |
| Quick installation guide |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Win |
| Design |
| Product colour |
Black |
| Integrated USB cable |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
50 - 90% |
| Logistics data |
| Products per master (outer) case |
28 pc(s) |
| Master (outer) case width |
334 mm |
| Master (outer) case length |
501 mm |
| Master (outer) case height |
226 mm |
| Harmonized System (HS) code |
84733020 |
| Packaging data |
| Package width |
143 mm |
| Package depth |
172 mm |
| Package height |
32 mm |
| Package weight |
133 g |
Features
StarTech.com USB-C to Dual DisplayPort 1.2 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 4K 30Hz/1080p 60Hz DP Laptop Display Extender / Splitter, Extra-Long Built-In Cable - Windows Only. USB connector type: USB Type-C, USB connector gender: Male, Maximum resolution: 3840 x 2160 pixels. Product colour: Black. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,.... Width: 58 mm, Depth: 386 mm, Height: 14 mm. Package width: 143 mm, Package depth: 172 mm, Package height: 32 mm
Product Description
Dual Monitor Adapter | Windows | Thunderbolt 3 Compatible
This USB-C to DisplayPort MST Hub lets you connect two DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.
Multitasking Made Easy
With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multitasking much easier.
Using this USB-C to dual DisplayPort monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.
Astonishing Picture Quality
MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K, the dual-monitor splitter is perfect for all high-resolution applications such as graphic design and CAD drawing.
Hassle-Free Setup
Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C dual-monitor adapter is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.
MSTCDP122DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- MULTIPLE MONITORS: USB-C to DisplayPort splitter to drive 2x 4K 30Hz or 2x 1080p 60Hz DP displays using a USB-C DP Alt-Mode port (DP 1.2/HBR2/MST) w/ no video compression; Thunderbolt 3 compatible
- CONVENIENCE: With a built-in 1ft cable, this bus-powered 2-port MST hub provides an easy method to connect up to two independent screens with any DisplayPort over USB Type-C Windows host device
- COMPATIBLE WITH: Dell XPS / Precision / Latitude, Lenovo ThinkPad X1 Carbon / Extreme, Surface Laptop 3 / Book 3 / Pro 7, HP ProBook / EliteBook / Spectre / ZBook & smaller (Mini -ITX) computers
