Stock Status: 1x unit in stock

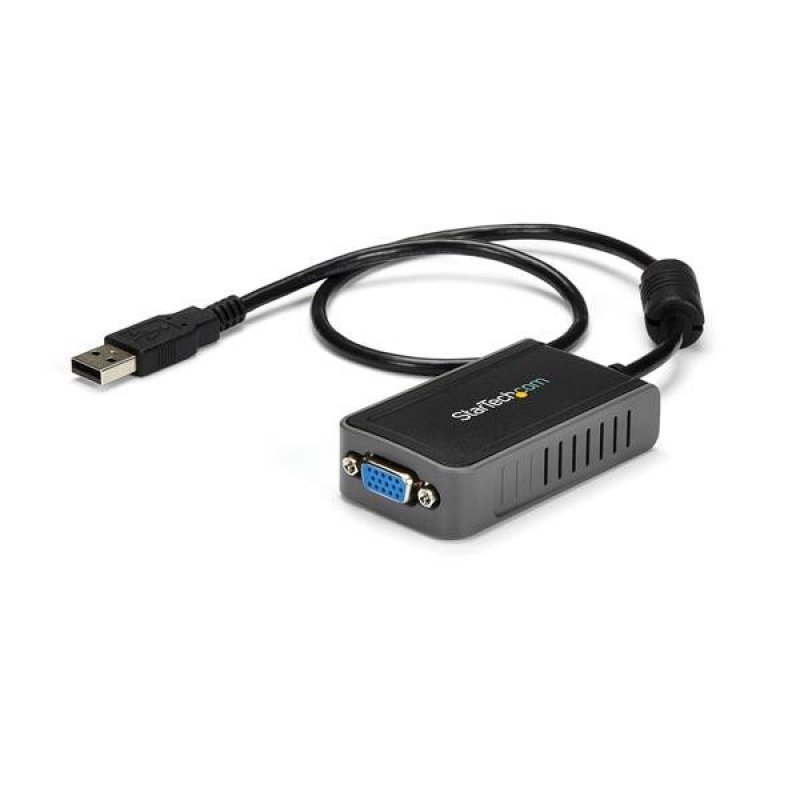

USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing.
The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.
The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the existing display - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
42 mm |
| Depth |
75 mm |
| Height |
50 mm |
| Weight |
80 g |
| USB cable length |
0.457 m |
| Performance |
| USB version |
2.0 |
| DVI output |
No |
| HDMI output |
No |
| DisplayPort output |
No |
| Number of displays supported |
1 |
| USB connector type |
USB Type-A |
| USB connector gender |
Male |
| VGA (D-Sub) output |
Yes |
| Internal memory |
16 MB |
| Maximum resolution |
1600 x 1200 pixels |
| Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+) |
| Chipset |
Trigger - Trigger 1+ |
| USB pass-through |
No |
| Certification |
CE, FCC, REACH, TAA |
| Packaging content |
| Drivers included |
Yes |
| Manual |
Yes |
| Software CD |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Hom |
| Design |
| Product colour |
Black |
| Integrated USB cable |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Packaging data |
| Package width |
148 mm |
| Package depth |
210 mm |
| Package height |
40 mm |
| Package weight |
235 g |
Features
StarTech.com USB to VGA Adapter - 1440x900. USB connector type: USB Type-A, USB connector gender: Male, Internal memory: 16 MB. Product colour: Black. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,.... Width: 42 mm, Depth: 75 mm, Height: 50 mm. Package width: 148 mm, Package depth: 210 mm, Package height: 40 mm
Product Description
USB 2.0 External Video & Graphics Card | Multi-Monitor | USB-Powered | Supports Windows®
The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing.
The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.
The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the existing display - all without having to open the computer case to add extra video cards.
Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
