Reliably connect high-bandwidth HDMI 2.1 devices through plenum spaces
Route this Ultra High Speed HDMI 2.1 Hybrid Active Optical Cable (AOC) through office plenum spaces for long distance transmission of 8K 60Hz video and high quality audio.
Hybrid AOC Construction
The HDMI 2.1 AOC incorporates a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances.
Full-Featured HDMI 2.1
The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications:
• High Bit Rate 3 (HBR3) supports up to 48Gbps bandwidth for higher refresh rates
• High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio
• Display Stream Compression 1.2a (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display
Flexible Plenum-Rated Cabling
This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends.
The 4.6mm (0.18in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.

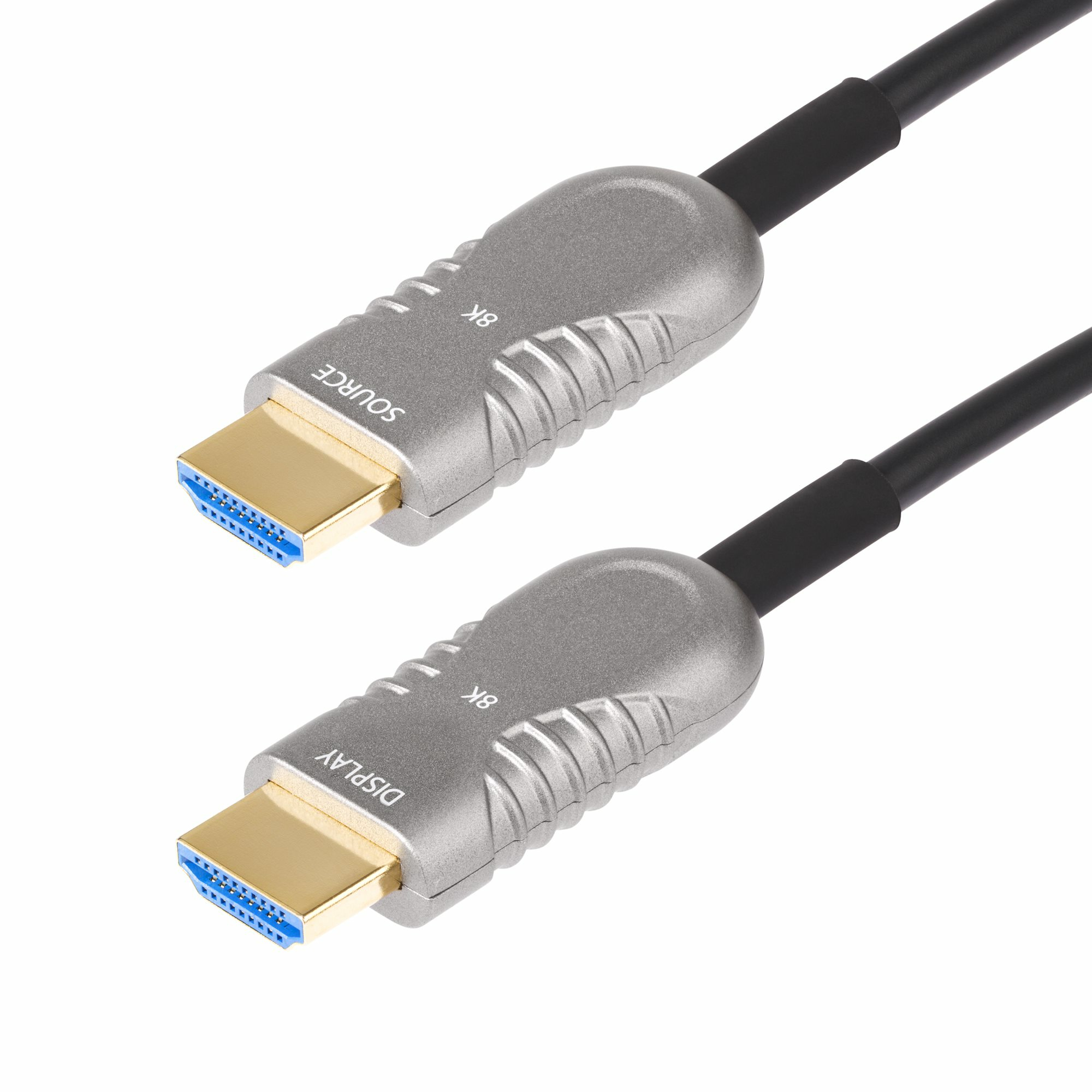

Please Note : This cable is unidirectional and must be installed in a specific direction. Please refer to the SOURCE and DISPLAY labels on the HDMI connectors to ensure that each end corresponds with the correct hardware.
The StarTech.com Advantage
Specs
| Features |
| Cable length |
15.2 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black, Silver |
| Connector contacts plating |
Gold |
| Quantity per pack |
1 pc(s) |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Supported graphics resolutions |
4096 x 2160, 7680 x 4320 |
| Audio Return Channel (ARC) |
Yes |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Data transfer rate |
48 Gbit/s |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10+ (HDR10 Plus) |
| Supported digital audio channels (uncompressed) |
7.1, 32 |
| Unidirectional |
Yes |
| Maximum refresh rate |
120 Hz |
| AWG wire size |
28/30 |
| Cable rating |
CMP |
| Cable type |
Round cable |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Cable shielding |
Aluminum mylar foil |
| Colour depth |
12 bit |
| Weight & dimensions |
| Cable diameter |
4.6 mm |
| Package width |
235 mm |
| Package depth |
220 mm |
| Package height |
38 mm |
| Package weight |
500 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Logistics data |
| Master (outer) case width |
465 mm |
| Master (outer) case length |
425 mm |
| Master (outer) case height |
265 mm |
| Products per master (outer) case |
20 pc(s) |
Features
StarTech.com 50ft (15.2m) HDMI 2.1 Hybrid Active Optical Cable (AOC), CMP, Plenum Rated, 8K Ultra High Speed HDMI 2.1/2.0 Fiber Optic Cable, 48Gbps, 8K 60Hz/4K 120Hz, HDR10+/FRL/TMDS/eARC. Cable length: 15.2 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, Data transfer rate: 48 Gbit/s, Audio Return Channel (ARC), Product colour: Black, Silver
Product Description
Reliably connect high-bandwidth HDMI 2.1 devices through plenum spaces
Route this Ultra High Speed HDMI 2.1 Hybrid Active Optical Cable (AOC) through office plenum spaces for long distance transmission of 8K 60Hz video and high quality audio.
Hybrid AOC Construction
The HDMI 2.1 AOC incorporates a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances.
Full-Featured HDMI 2.1
The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications:
• High Bit Rate 3 (HBR3) supports up to 48Gbps bandwidth for higher refresh rates
• High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio
• Display Stream Compression 1.2a (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display
Flexible Plenum-Rated Cabling
This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends.
The 4.6mm (0.18in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.
Please Note : This cable is unidirectional and must be installed in a specific direction. Please refer to the SOURCE and DISPLAY labels on the HDMI connectors to ensure that each end corresponds with the correct hardware.
