Stock Status: 1x unit in stock
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor

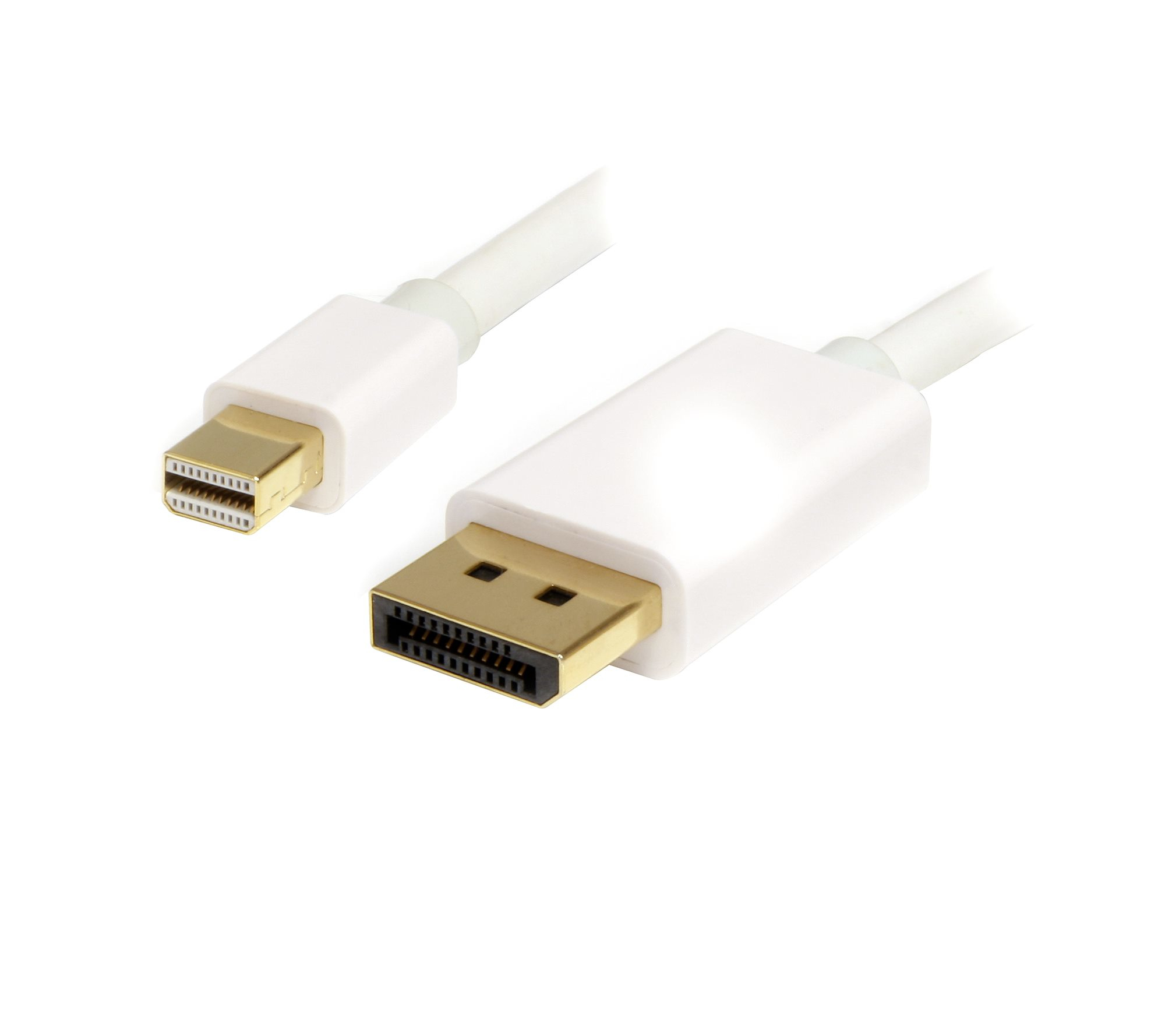

The MDP2DPMM1MW 1m White Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM1MW is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
Specs
| Features |
| Cable length |
1 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
mini DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
3840 x 2400 pixels |
| Product colour |
White |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Gold |
| DisplayPort version |
1.2 |
| Supported graphics resolutions |
3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum refresh rate |
120 Hz |
| Cable rating |
CMG (CM) |
| Cable shielding |
Aluminum mylar foil |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
32 |
| Bandwidth |
21600 MB/s |
| Plug and Play |
Yes |
| Multi-Stream Transport (MST) |
Yes |
| Number of conductors |
19 |
| Technical details |
| Compliance certificates |
RoHS, CE |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
372 mm |
| Master (outer) case length |
411 mm |
| Master (outer) case height |
273 mm |
| Products per master (outer) case |
150 pc(s) |
| Packaging data |
| Weight |
40 g |
| Package width |
192 mm |
| Package depth |
143 mm |
| Package height |
20 mm |
| Package weight |
50 g |
Features
StarTech.com 1m (3ft) Mini DisplayPort to DisplayPort 1.2 Cable - 4K x 2K UHD Mini DisplayPort to DisplayPort Adapter Cable - Mini DP to DP Cable for Monitor - mDP to DP Converter Cord. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: mini DisplayPort. Weight: 40 g, Package width: 192 mm, Package depth: 143 mm. Master (outer) case width: 372 mm, Master (outer) case length: 411 mm, Master (outer) case height: 273 mm
Product Description
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor
The MDP2DPMM1MW 1m White Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM1MW is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
