Stock Status: 1x unit in stock
KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

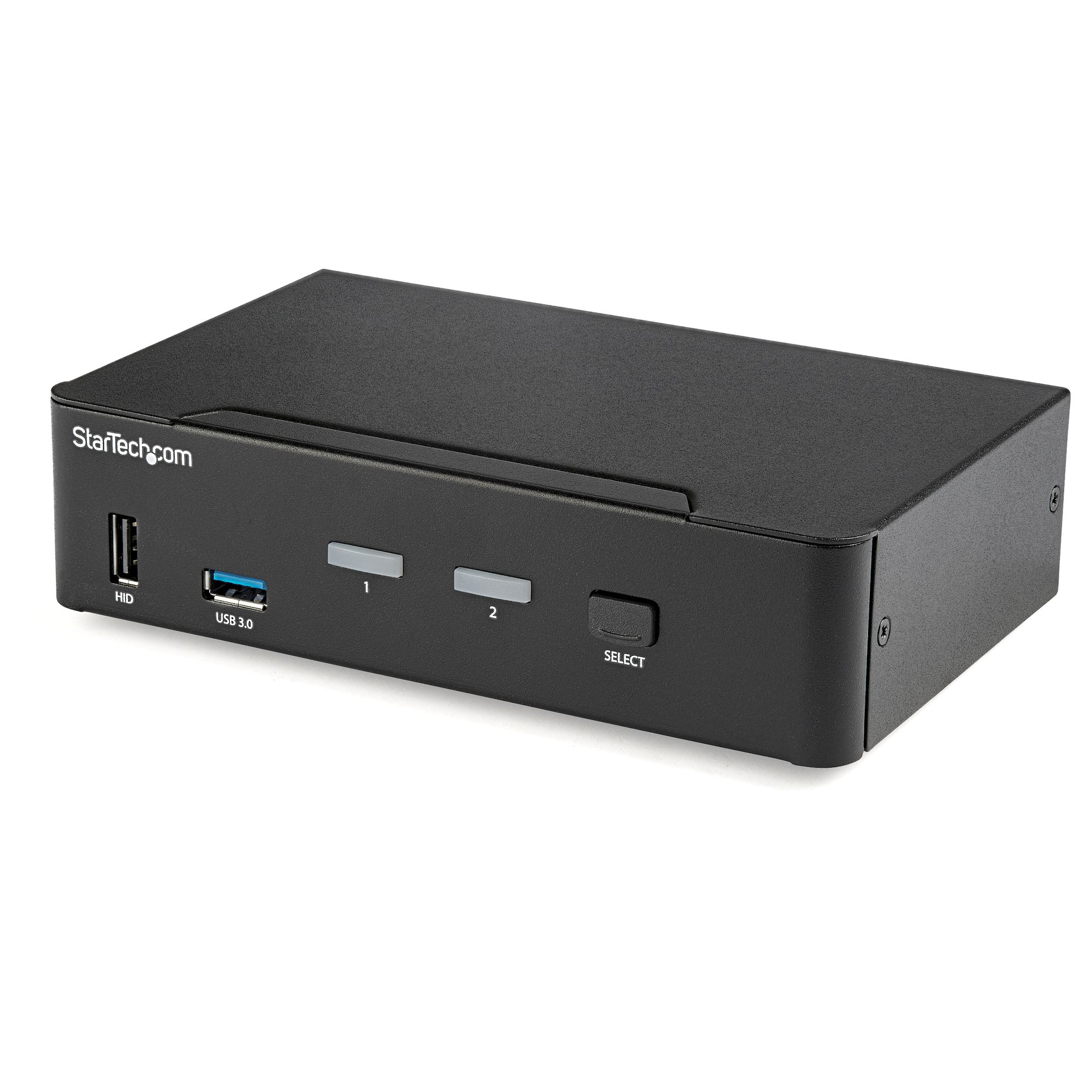

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity |
3 |
| DisplayPort version |
1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| Console USB ports quantity |
6 |
| USB connector type |
USB Type-A, USB Type-B |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
160 mm |
| Depth |
100 mm |
| Height |
40 mm |
| Weight |
1.1 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Input voltage |
100 - 240 V |
| Input current |
0.6 A |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power consumption (typical) |
18 W |
| External power adapter |
Yes |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, JP, UK, US |
| Display |
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Packaging content |
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Rubber feet |
Yes |
| Other features |
| IP control |
No |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Mean time between failures (MTBF) |
60000 h |
| Certification |
CE, FCC, TAA, REACH |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| HDCP |
Yes |
| Daisy chain |
No |
| Number of users |
1 user(s) |
| Audio channels |
2.0 |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
318 mm |
| Master (outer) case length |
389 mm |
| Master (outer) case height |
285 mm |
| Products per master (outer) case |
6 pc(s) |
| Packaging data |
| Package width |
189 mm |
| Package depth |
238 mm |
| Package height |
91 mm |
| Sustainability |
| Compliance certificates |
RoHS |
Features
StarTech.com 2 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo - TAA Compliant. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Number of users: 1 user(s). Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 60000 h. Input voltage: 100 - 240 V, Input current: 0.6 A, Output voltage: 12 V. Compliance certificates: RoHS
Product Description
KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
