Stock Status: 1x unit in stock

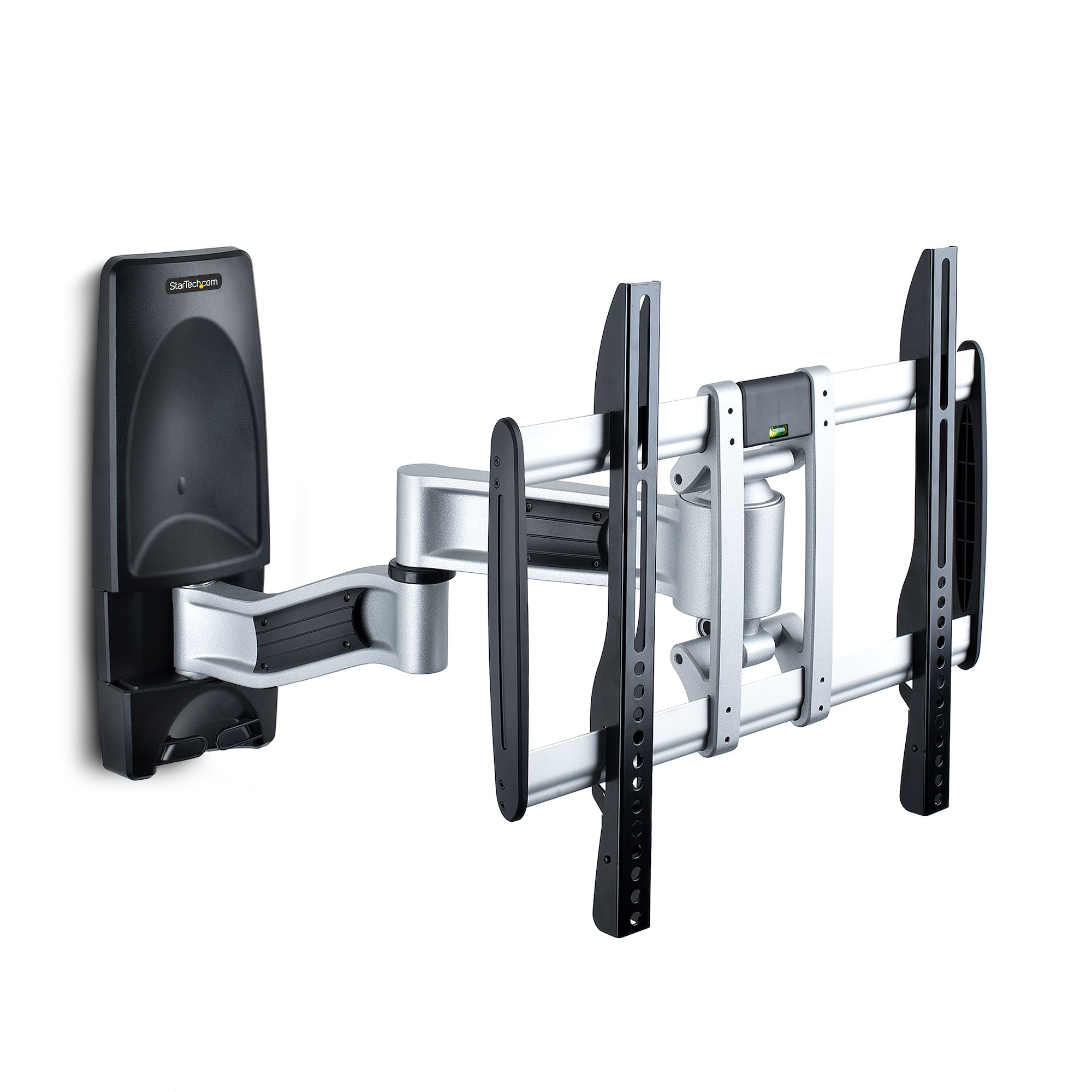

Mount a flat or curved 400x400 VESA display to a wall in both residential and commercial environments
This VESA TV Wall Mount supports TV displays from 26" to 65" and up to 99.2 lb (45kg). Robust steel and aluminum frame for a long-lasting TV installation. The arm assembly provides smooth motion and retracts towards the wall for low-profile configurations. In addition, the articulating TV wall mount features an array of adjustments for an ideal viewing angle and supports VESA patterns from 200x200 to 400 x400.
Versatile TV Mounting
Securely mount a flat or compatible curved-screen TV or digital signage for visitors, clients, and employees to view. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities.
The lateral range of 3.1ft (95.6cm) is ideal for corner mounting, and the jointed arm folds on itself, creating a slim profile from the wall of just 4.1in (10.5cm) for limited-space installations.
Mount the articulating TV wall mount to a single wood stud or a concrete wall using the included keyhole-style mounting plate for quick and hassle-free installation. In addition, M4/5/6/8 screws of various lengths, matching washers, and spacers enhance the TV mounting compatibility.
Supported VESA mounting patterns: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, and 400x400.
Smooth Motion and Tidy Installation
Customize the viewing experience and comfort with these adjustment capabilities. The TV mount can rotate +90/-90 degrees at the wall mount assembly plate, as well as at both pivot points, while the VESA vertical bracket can be tilted +15/-15 degrees.
The arm assembly extends up to 22.1in (56.2cm) from the wall to accommodate different viewing positions, including corner mounting. Built-in cable management and a wall mount cover for an organized and visually appealing installation.
This TAA corner TV mount is backed for five years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
500 mm |
| Depth (max) |
45 cm |
| Height |
105 mm |
| Weight |
7.8 kg |
| Packaging data |
| Package width |
624 mm |
| Package depth |
460 mm |
| Package height |
124 mm |
| Package weight |
9.2 kg |
| Mounting |
| Maximum weight capacity |
45 kg |
| Maximum screen size |
165.1 cm (65") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 100 mm |
| Maximum VESA mount |
400 x 400 mm |
| Minimum screen size |
66 cm (26") |
| Panel mounting interface |
200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
| Ergonomics |
| Height adjustment |
No |
| Tilt adjustment |
Yes |
| Tilt angle range |
-15 - 15° |
| Swivelling |
Yes |
| Swivel angle |
180° |
| Rotating |
Yes |
| Angle of rotation |
90° |
| Distance to the wall (max) |
56.2 cm |
| Distance to the wall (min) |
10.5 cm |
| Design |
| Product colour |
Black, Silver |
| Packaging content |
| Anchors included |
Yes |
| Number of anchors included |
8 |
| Wrench included |
Yes |
| Wrench type |
Hexagonal wrench |
| Number of washers included |
4 |
| Screws included |
Yes |
| Number of screws |
38 |
| Manual |
Yes |
| Logistics data |
| Master (outer) case width |
624 mm |
| Master (outer) case length |
460 mm |
| Master (outer) case height |
124 mm |
| Products per master (outer) case |
1 pc(s) |
Features
StarTech.com Articulating TV Wall Mount, VESA Wall Mount, Supports 26 to 65 inch/99lb/Flat/Curved TVs, Retractable Low Profile Wall Mount TV Bracket, Adjustable Corner TV Wall Mount. Maximum weight capacity: 45 kg, Minimum screen size: 66 cm (26"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -15 - 15°, Angle of rotation: 90°, Distance to the wall (min): 10.5 cm, Distance to the wall (max): 56.2 cm. Product colour: Black, Silver
Product Description
Mount a flat or curved 400x400 VESA display to a wall in both residential and commercial environments
This VESA TV Wall Mount supports TV displays from 26" to 65" and up to 99.2 lb (45kg). Robust steel and aluminum frame for a long-lasting TV installation. The arm assembly provides smooth motion and retracts towards the wall for low-profile configurations. In addition, the articulating TV wall mount features an array of adjustments for an ideal viewing angle and supports VESA patterns from 200x200 to 400 x400.
Versatile TV Mounting
Securely mount a flat or compatible curved-screen TV or digital signage for visitors, clients, and employees to view. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities.
The lateral range of 3.1ft (95.6cm) is ideal for corner mounting, and the jointed arm folds on itself, creating a slim profile from the wall of just 4.1in (10.5cm) for limited-space installations.
Mount the articulating TV wall mount to a single wood stud or a concrete wall using the included keyhole-style mounting plate for quick and hassle-free installation. In addition, M4/5/6/8 screws of various lengths, matching washers, and spacers enhance the TV mounting compatibility.
Supported VESA mounting patterns: 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, and 400x400.
Smooth Motion and Tidy Installation
Customize the viewing experience and comfort with these adjustment capabilities. The TV mount can rotate +90/-90 degrees at the wall mount assembly plate, as well as at both pivot points, while the VESA vertical bracket can be tilted +15/-15 degrees.
The arm assembly extends up to 22.1in (56.2cm) from the wall to accommodate different viewing positions, including corner mounting. Built-in cable management and a wall mount cover for an organized and visually appealing installation.
This TAA corner TV mount is backed for five years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
