Stock Status: 1x unit in stock

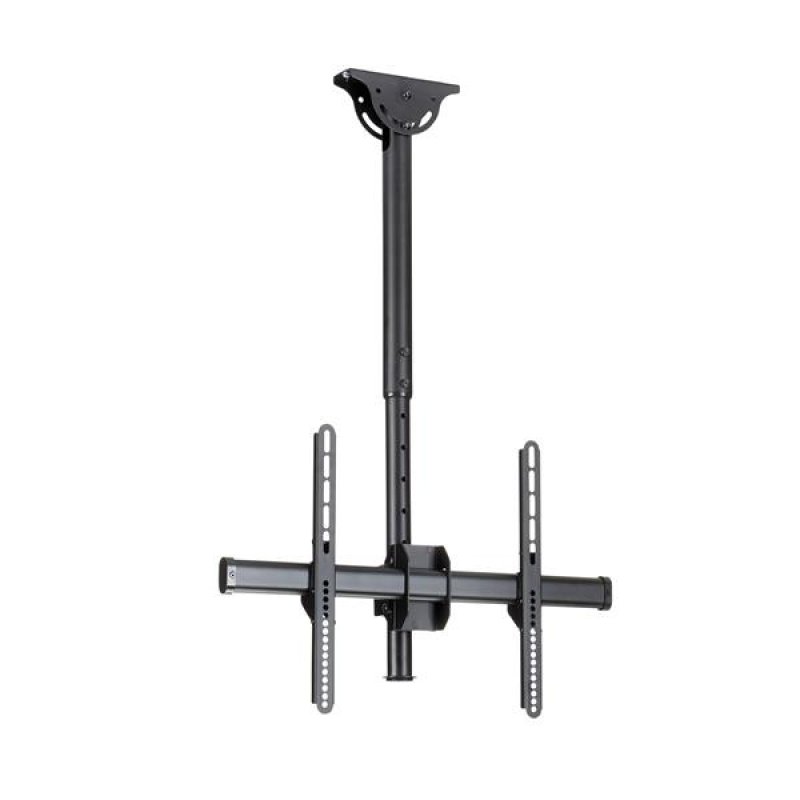

Display Ceiling Mount | Full Motion | For 32" to 75" Displays
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.
The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.
Adjustable Height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift (height extension) of 13.7" (350 mm).
Swivels to Suit Your Ceiling
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
Viewable from Any Direction
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.
Hook-and-Mount Design
Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILPTBSP is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
680 mm |
| Depth |
680 mm |
| Depth (max) |
43.5 cm |
| Height |
1150 mm |
| Weight |
4.9 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment range |
560 - 910 mm |
| Tilt angle range |
-25 - 0° |
| Swivel angle range |
-180 - 180° |
| Angle of rotation |
360° |
| Pivot angle |
-180 - 180° |
| Cable management |
Yes |
| Mounting |
| Maximum weight capacity |
50 kg |
| Maximum screen size |
190.5 cm (75") |
| Mounting type |
Ceiling |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
600 x 400 mm |
| Minimum screen size |
94 cm (37") |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported |
1 |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Anti-theft function |
No |
| Certification |
REACH, CE |
| Packaging content |
| Manual |
Yes |
| Mounting kit |
Yes |
| Screws included |
Yes |
| Number of screws |
24 |
| Wrench included |
Yes |
| Washers included |
Yes |
| Number of washers included |
8 |
| Spacer included |
Yes |
| Number of spacers included |
8 |
| Technical details |
| Package dimensions (WxDxH) |
366 x 771 x 149 mm |
| Compliance certificates |
RoHS |
| Packaging data |
| Package width |
771 mm |
| Package depth |
366 mm |
| Package height |
149 mm |
| Package weight |
6.8 kg |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
| Master (outer) case width |
789 mm |
| Master (outer) case length |
458 mm |
| Master (outer) case height |
395 mm |
| Products per master (outer) case |
3 pc(s) |
Features
StarTech.com TV Ceiling Mount - Full-Motion Universal Hanging Single Screen Mount with Adjustable Telescopic Short Pole - Tilt / Swivel - VESA Bracket for 32”-75" Displays. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 560 - 910 mm, Tilt angle range: -25 - 0°. Product colour: Black
Product Description
Display Ceiling Mount | Full Motion | For 32" to 75" Displays
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.
The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.
Adjustable Height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift (height extension) of 13.7" (350 mm).
Swivels to Suit Your Ceiling
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
Viewable from Any Direction
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.
Hook-and-Mount Design
Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILPTBSP is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
