Stock Status: 1x unit in stock

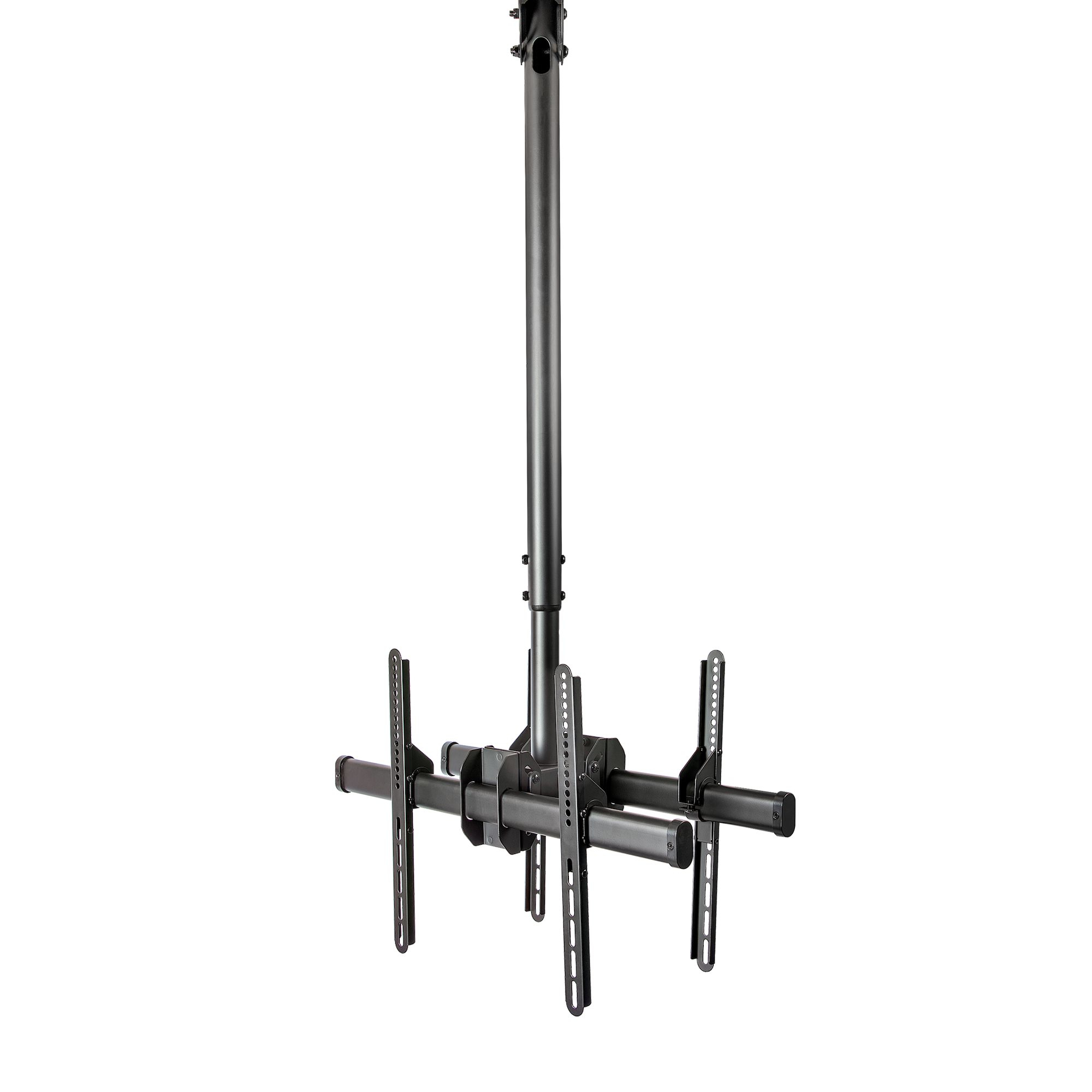

Dual Display Mount | Full Motion | For 32" to 75" Displays
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
165 mm |
| Depth |
680 mm |
| Depth (max) |
68 cm |
| Height |
835 mm |
| Weight |
9.8 kg |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment range |
1060 - 1560 mm |
| Tilt angle range |
-20 - 5° |
| Swivel angle range |
-180 - 180° |
| Angle of rotation |
360° |
| Adjustable |
Yes |
| Mounting |
| Maximum weight capacity |
90 kg |
| Maximum screen size |
190.5 cm (75") |
| Mounting type |
Ceiling |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
600 x 400 mm |
| Maximum weight capacity (per display) |
45 kg |
| Minimum screen size |
81.3 cm (32") |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported |
2 |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Anti-theft function |
No |
| Packaging content |
| Manual |
Yes |
| Screws included |
Yes |
| Number of screws |
46 |
| Wrench included |
Yes |
| Nuts included |
Yes |
| Number of nuts |
2 |
| Washers included |
Yes |
| Number of washers included |
12 |
| Spacer included |
Yes |
| Number of spacers included |
32 |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Sustainability compliance |
Yes |
| Packaging data |
| Package width |
310 mm |
| Package depth |
935 mm |
| Package height |
145 mm |
| Package weight |
10.8 kg |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
| Master (outer) case width |
340 mm |
| Master (outer) case length |
965 mm |
| Master (outer) case height |
310 mm |
| Products per master (outer) case |
2 pc(s) |
Features
StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustable Telescopic Pole - Tilt/Swivel/Rotate - VESA Bracket for 32”-75" Displays. Maximum weight capacity: 90 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 1060 - 1560 mm, Tilt angle range: -20 - 5°. Product colour: Black
Product Description
Dual Display Mount | Full Motion | For 32" to 75" Displays
Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.
Back-to-Back TV Mount
The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.
Adjustable Height
With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).
Easy Screen Adjustment
For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.
Swivels to Suit Your Ceiling
The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.
Simple Setup and Cable Management
The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.
