Stock Status: 1x unit in stock
USB 3.2 Gen 2x2 (20 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-C

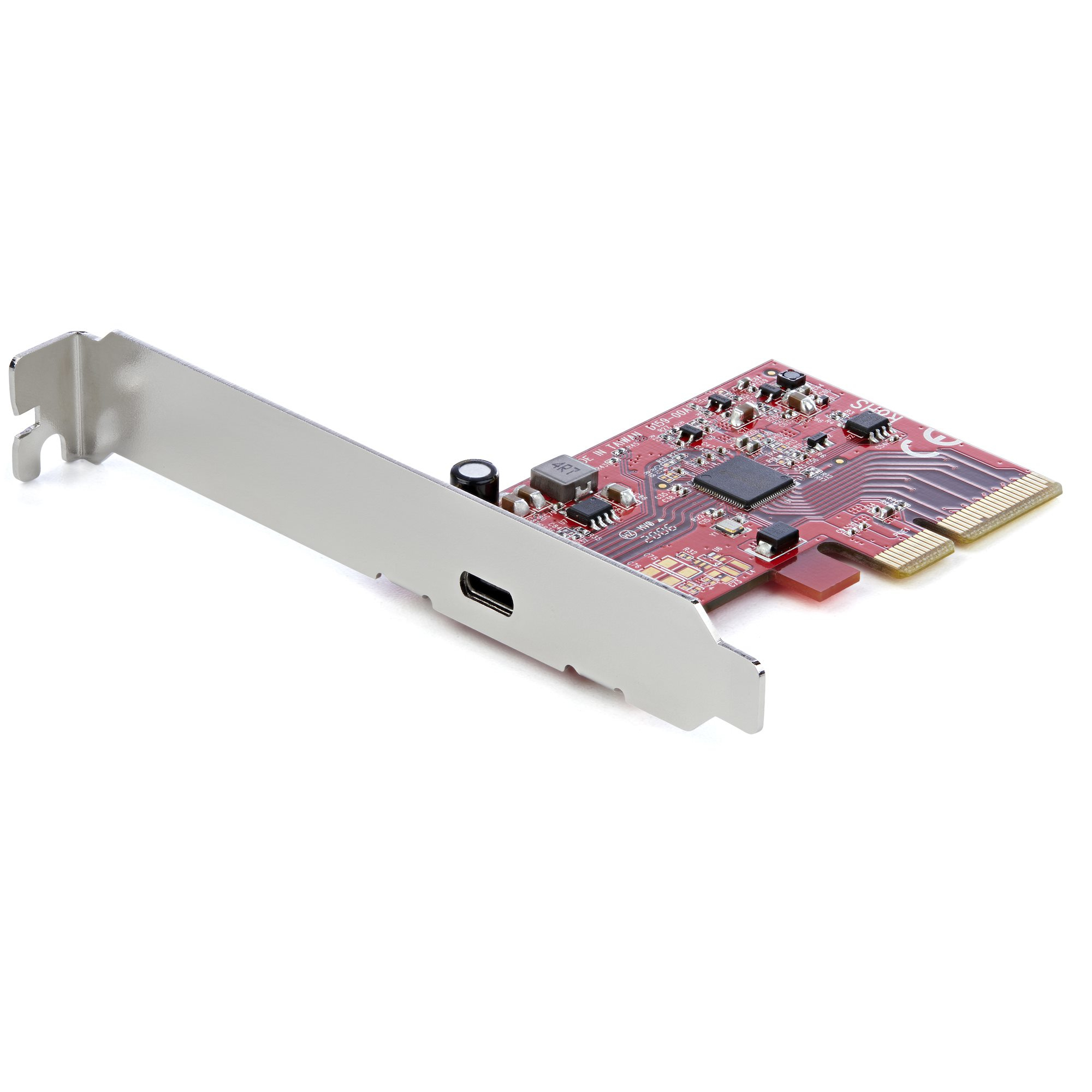

This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C™ (20Gbps) port.
Add a 20 Gbps USB Type-C Port to Your Desktop Computer
The controller card enables you to connect USB-C Gen 2x2 (20 Gbps) devices to your desktop computer. The USB-C port is ideal for connecting USB devices such as external hard drives and solid state drives or charging and syncing your mobile devices. The USB-C port provides up to 15W (5V/3A) of power and is backward compatible with USB 3.2 Gen 2 (10 Gbps) and USB 3.2 Gen 1 (5 Gbps) devices.
Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps).
SuperSpeed USB 3.2 Gen 2x2 (20 Gbps) Performance
The USB 3.2 Gen 2x2 card features an ASMedia ASM3242 host controller that utilizes x4 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 20Gbps and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.
Wide Installation Compatibility
This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward compatible w/PCIe 2.0). For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices
PEXUSB321C is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
The StarTech.com Advantage
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard |
PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 85 °C |
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating relative humidity (H-H) |
15 - 90% |
| Weight & dimensions |
| Width |
80 mm |
| Depth |
51 mm |
| Height |
22 mm |
| Weight |
37 g |
| Design |
| Internal |
Yes |
| Product colour |
Red |
| Mean time between failures (MTBF) |
3126209 h |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case width |
500 mm |
| Master (outer) case length |
380 mm |
| Master (outer) case height |
310 mm |
| Packaging data |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
| Package width |
142 mm |
| Package depth |
170 mm |
| Package height |
30 mm |
| Package weight |
101 g |
| Features |
| Chipset |
ASMedia - ASM3242 |
| Data transfer rate (max) |
20 Gbit/s |
| UASP support |
Yes |
| Technical details |
| Compliance certificates |
CE, RoHS |
Features
StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card - USB-C SuperSpeed 20Gbps PCI Express 3.0 x4 Host Controller Card - USB Type-C PCIe Add-On Adapter Card - Expansion Card - Windows & Linux. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Product colour: Red, Mean time between failures (MTBF): 3126209 h. Chipset: ASMedia - ASM3242, Data transfer rate (max): 20 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,..., Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019. Width: 80 mm, Depth: 51 mm, Height: 22 mm
