Stock Status: 1x unit in stock

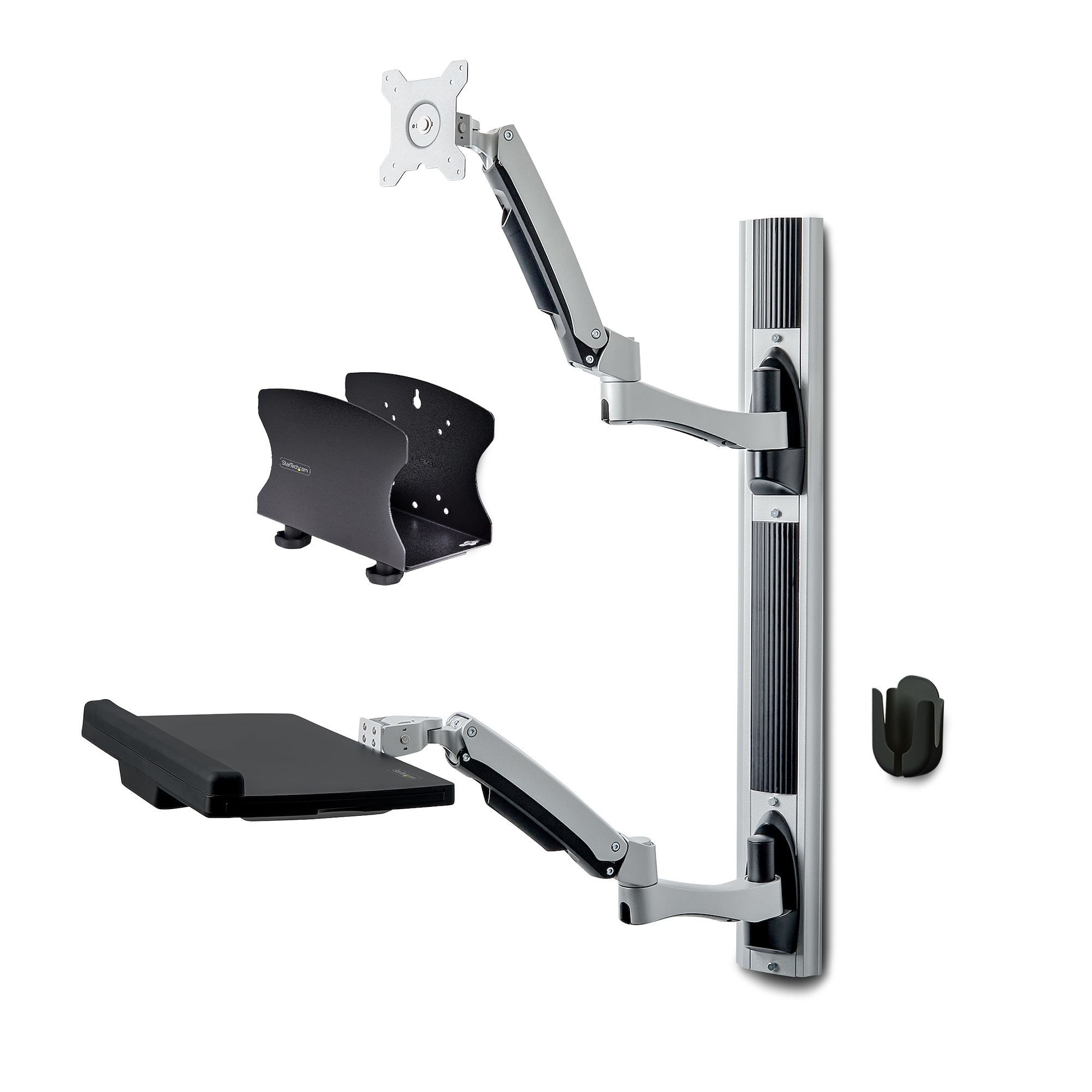

Mount workstation components to a wall, using this fully adjustable mounting system
Mount this Wall Mount Workstation to create an ergonomic sit-stand desk setup for areas with limited space for a traditional desk. Use in offices, warehouses, (animal) clinics, or other limited space locations. The spring-assisted arms allow height adjustment to suit different users and maximize ergonomic positioning.
Height Adjustment with One Smooth Motion
The mechanical springs in the monitor and keyboard arms enable independent toolless height adjustment of up to 12.4in (31.5cm) with effortless one-touch motion. For additional adjustments, reposition the arms along the wall track (2.8ft / 88cm) for a different height range.
Optimal Adjustability
The VESA monitor mount supports a single standard 27" or 32" ultrawide monitor weighing up to 22lb (10kg) with 75x75 or 100x100 VESA mounting patterns. The monitor mount tilts +90°/ -20°; +/-90° swivels, and rotates up to 360° to accommodate vertical and horizontal monitor orientations.
The monitor arm extends 24.1in (61.3cm) from the wall, while the keyboard tray extends 33.5in (85.3cm) away from the wall.
Keyboard and Mouse Trays
The workstation features a large keyboard tray (17.6x8.1in / 44.9x20.7cm) and a retractable ambidextrous mouse tray (8.5x8.4in / 21.7x21.3cm) that slides in and out of the keyboard tray to suit right and left-handed users. The mouse tray and wrist rest are removable enabling for frequent cleaning of all high-touch surfaces making it ideal for a shared workstation.
Free up additional floor space when the workstation is not in use by folding the workstation flush with the wall. Use the hook-and-loop strips to secure the keyboard to its tray and store the mouse in the dedicated holder.
Desktop Computer Wall Mount
Optimize the workspace by mounting the desktop computer case to the wall under the keyboard tray with the included bracket (part 2NS-CPU-WALL-MOUNT). Enjoy unobstructed access to drive bays, peripheral ports, and wiring with the open design of the PC holder.
Included spacers ensure a snug fit with different CPU tower sizes ranging from 1.9 to 7.8in (50 to 20cm) for most Small Form Factor (SFF) computers.
For a neat and organized setup consider a wall cable management solution, part CBMWD3816 (sold separately).
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
880 mm |
| Depth |
548 mm |
| Height |
156 mm |
| Weight |
10.5 kg |
| Features |
| Product colour |
Black |
| Number of displays supported |
1 |
| Maximum screen size |
81.3 cm (32") |
| Maximum weight capacity |
10 kg |
| Mounting type |
Wall |
| Minimum screen size |
68.6 cm (27") |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum weight per keyboard tray |
3.5 kg |
| Frame material |
Aluminium, Steel |
| Wall mountable |
Yes |
| Cable management |
Yes |
| Packaging data |
| Package width |
965 mm |
| Package depth |
506 mm |
| Package height |
163 mm |
| Package weight |
15.2 kg |
| Packaging content |
| Screws included |
Yes |
| Spacer included |
Yes |
| Number of screws |
44 |
| Number of anchors included |
14 |
| Number of base pads |
4 pc(s) |
| Logistics data |
| Master (outer) case length |
506 mm |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case height |
163 mm |
| Master (outer) case width |
965 mm |
| Ergonomics |
| Screen rotation |
Yes |
| Angle of rotation |
360° |
| Swivel arm |
Yes |
| Swivel angle |
90° |
| Tilt angle range |
-20 - 90° |
| Adjustable height (max) |
88 cm |
| Distance to the wall (max) |
61.3 cm |
| Distance to the wall (min) |
9.7 cm |
| Tilt adjustment |
Yes |
Features
StarTech.com Wall Mount Workstation, VESA Mount For 32" Monitors (22lb/10kg), Fully Articulating Single Monitor Mount & Keyboard Tray w/Desktop Computer/PC Bracket, Standing Desk. Product colour: Black, Maximum screen size: 81.3 cm (32"), Maximum weight capacity: 10 kg. Angle of rotation: 360°, Swivel angle: 90°, Tilt angle range: -20 - 90°. Width: 880 mm, Depth: 548 mm, Height: 156 mm. Package width: 965 mm, Package depth: 506 mm, Package height: 163 mm. Number of base pads: 4 pc(s)
