Stock Status: 1x unit in stock
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

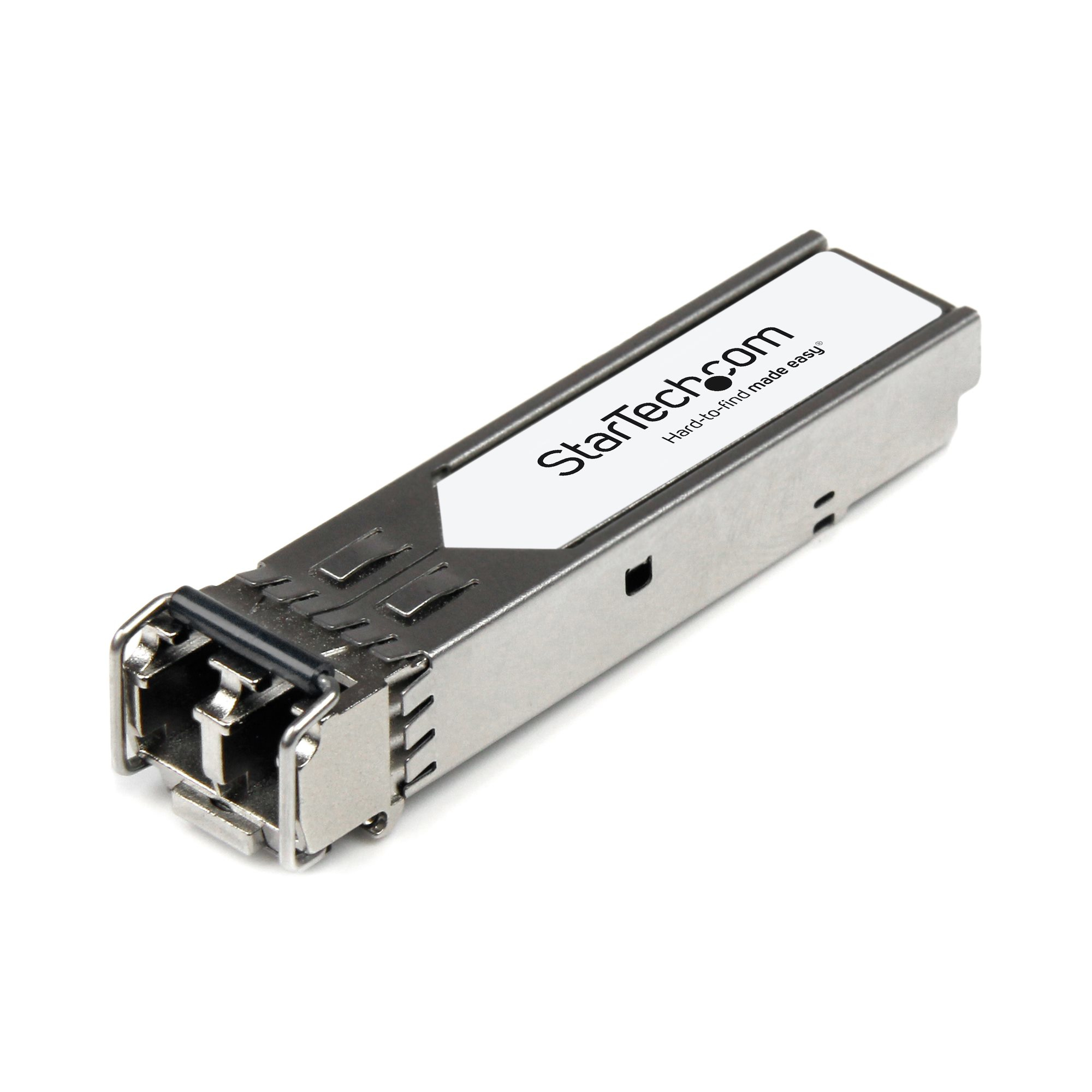

The 10052-ST is an Extreme Networks 10052 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 634,210,013 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
56.6 mm |
| Depth |
13.7 mm |
| Height |
12.5 mm |
| Weight |
18 g |
| Power |
| Power consumption (typical) |
1.3 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Single-mode fiber (SMF) supported |
Yes |
| Multi-mode fiber (MMF) supported |
No |
| Fiber optic connector |
LC |
| SFP transceiver standard |
LX |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Fiber ethernet cabling technology |
1000BASE |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features |
| Product colour |
Silver |
| Mean time between failures (MTBF) |
634210013 h |
| Brand compatibility |
Extreme Networks |
| Compatible products |
10052 |
| Logistics data |
| Master (outer) case width |
90 mm |
| Master (outer) case length |
115 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
31 mm |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Package width |
90 mm |
| Package depth |
115 mm |
| Package height |
31 mm |
| Package weight |
50 g |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, FCC, UR, REACH |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
StarTech.com Extreme Networks 10052 Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 634210013 h, Brand compatibility: Extreme Networks. Power consumption (typical): 1.3 W. Compliance certificates: RoHS, Certification: CE, FCC, UR, REACH. Width: 56.6 mm, Depth: 13.7 mm, Height: 12.5 mm
Product Description
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The 10052-ST is an Extreme Networks 10052 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 634,210,013 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
