Stock Status: 1x unit in stock
10 Gbps | Multi Mode Fiber | LC | 200 m (656 ft) | Lifetime Warranty

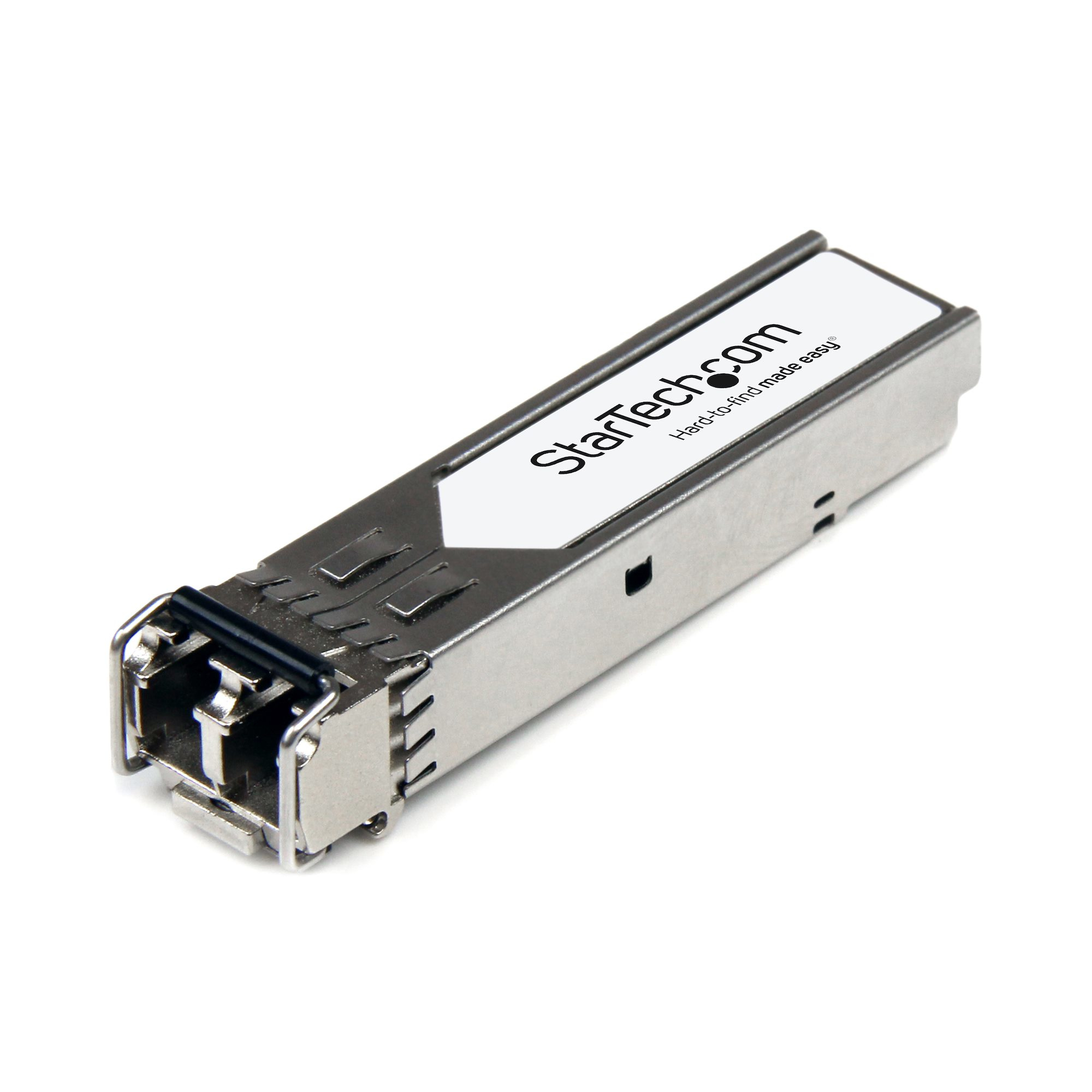

The 10303-ST is an Extreme Networks 10303 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 200 m (656 ft)
• MTBF: 145,858,878 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
58.4 mm |
| Depth |
13.9 mm |
| Height |
13.7 mm |
| Weight |
21 g |
| Power |
| Power consumption (typical) |
1 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Multi-mode fiber (MMF) supported |
Yes |
| Fiber optic connector |
LC |
| SFP transceiver standard |
LRM |
| Maximum transfer distance |
200 m |
| Wavelength |
1310 nm |
| Fiber ethernet cabling technology |
10GBASE |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features |
| Product colour |
Silver |
| Hot-swap |
Yes |
| Mean time between failures (MTBF) |
145858878 h |
| Brand compatibility |
Extreme Networks |
| Compatible products |
10303 |
| Logistics data |
| Master (outer) case width |
90 mm |
| Master (outer) case length |
115 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case height |
31 mm |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Package width |
90 mm |
| Package depth |
115 mm |
| Package height |
31 mm |
| Package weight |
50 g |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, FCC, UR, REACH |
| Packaging content |
| Quantity per pack |
1 pc(s) |
Features
StarTech.com Extreme Networks 10303 Compatible SFP+ Module - 10GBASE-LRM - 10GbE Multimode Fiber MMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 200m - 1310nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Mean time between failures (MTBF): 145858878 h, Brand compatibility: Extreme Networks. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC, UR, REACH. Width: 58.4 mm, Depth: 13.9 mm, Height: 13.7 mm
Product Description
10 Gbps | Multi Mode Fiber | LC | 200 m (656 ft) | Lifetime Warranty
The 10303-ST is an Extreme Networks 10303 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 200 m (656 ft)
• MTBF: 145,858,878 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
