Stock Status: 1x unit in stock
Add two RS232 serial ports with COM retention to your laptop or desktop computer through USB

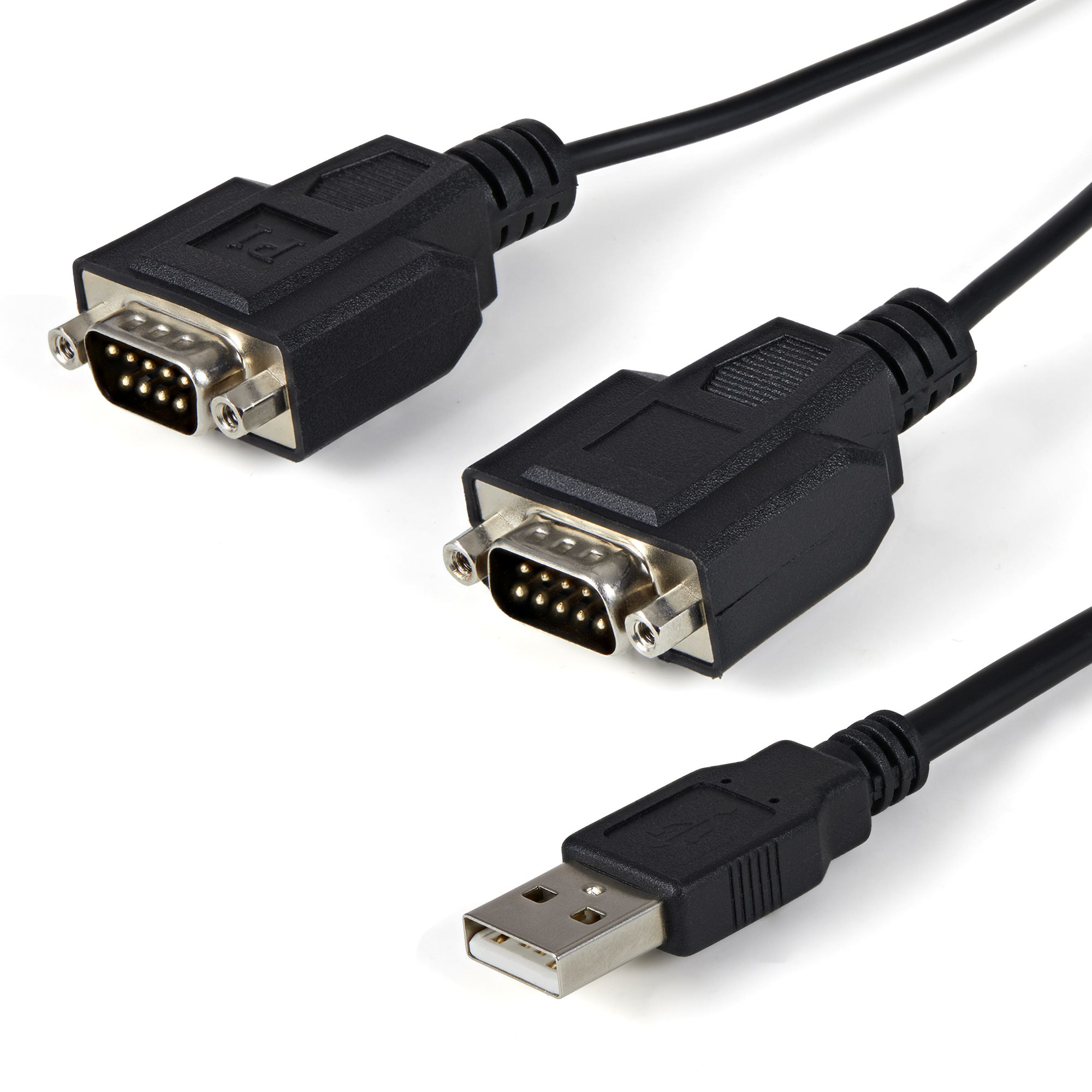

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Technical details |
| Compliance certificates |
CE, RoHS |
| Packaging content |
| Manual |
Yes |
| Drivers included |
Yes |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
146 mm |
| Package depth |
206 mm |
| Package height |
38 mm |
| Package weight |
274 g |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
402 mm |
| Master (outer) case length |
511 mm |
| Master (outer) case height |
323 mm |
| Products per master (outer) case |
40 pc(s) |
| Features |
| Product colour |
Black |
| Cable length |
2.1 m |
| Connector 1 |
USB 2.0 A |
| Connector 2 |
2 x DB-9 |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector housing material |
Plastic |
| Bandwidth |
480 MB/s |
| Chipset |
FTDI - FT2232D |
| Baud rate |
921.6 Kbit/s |
| Data bits |
7, 8 |
| FIFO (First In, First Out) |
128 B |
| Parity bit |
Even, Mark, No, Odd, Space |
| Stop bits |
1, 2 |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, |
| Linux operating systems supported |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
45 mm |
| Height |
20 mm |
| Weight |
156 g |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com 6ft (1.8m) 2-Port FTDI USB to Serial RS232 Adapter Cable with COM Retention, USB to RS232 Adapter - TAA. Product colour: Black, Cable length: 2.1 m, Connector 1: USB 2.0 A. Quantity per pack: 1 pc(s), Package width: 146 mm, Package depth: 206 mm. Width: 45 mm, Height: 20 mm, Weight: 156 g. Master (outer) case width: 402 mm, Master (outer) case length: 511 mm, Master (outer) case height: 323 mm
Product Description
Add two RS232 serial ports with COM retention to your laptop or desktop computer through USB
The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
