Add four RS232 serial ports to any notebook or desktop computer using a single USB port

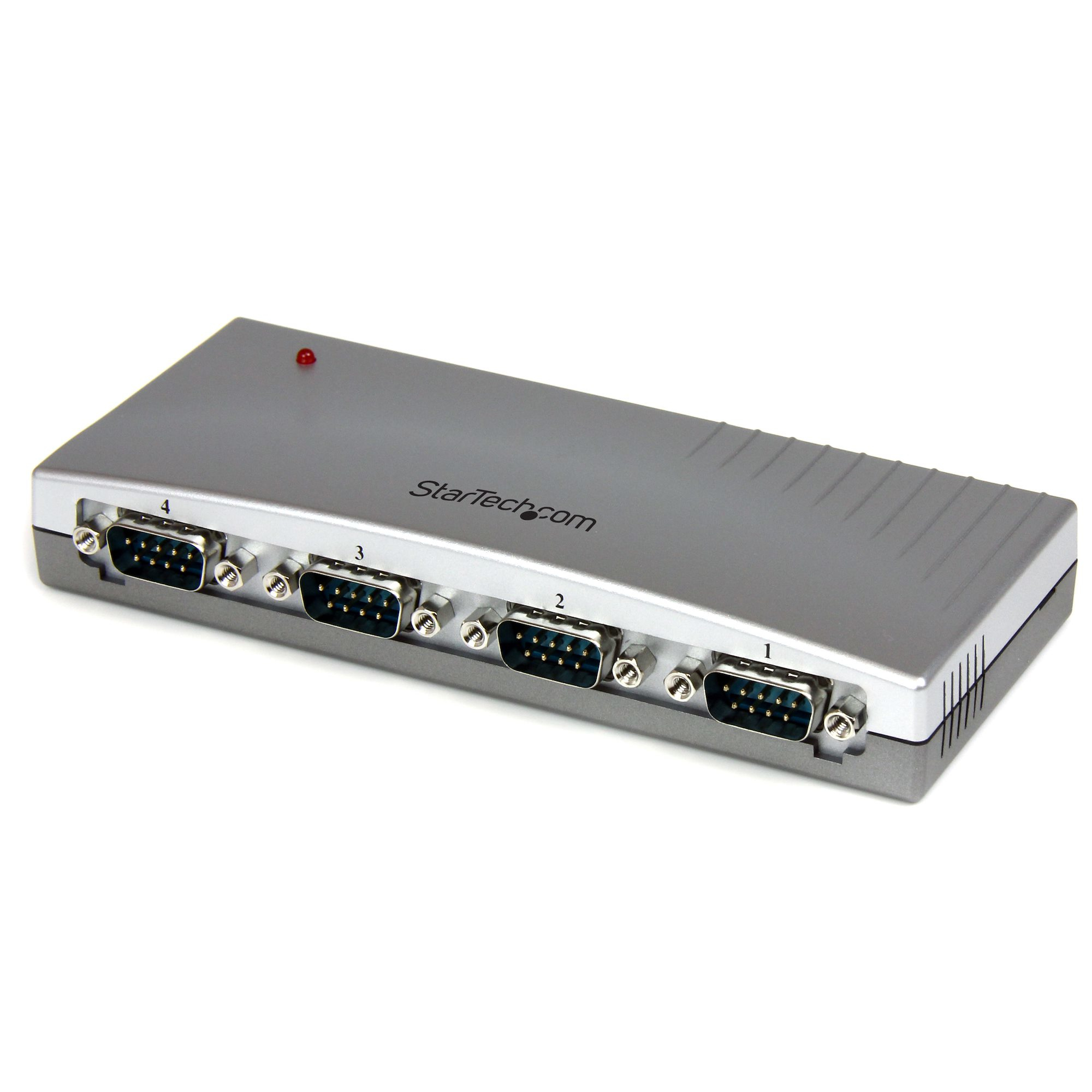

This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.
The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.
A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
Windows XP Embedded |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Power consumption (typical) |
1 W |
| Power consumption (max) |
1.5 W |
| Weight & dimensions |
| Width |
66.5 mm |
| Depth |
150 mm |
| Height |
26 mm |
| Weight |
110 g |
| Ports & interfaces |
| Ports quantity |
4 |
| Host interface |
USB |
| Hub interfaces |
Serial |
| RS-232 ports |
4 |
| Other features |
| Chipset |
FTDI - FT232RL |
| Packaging content |
| Cables included |
USB |
| Manual |
Yes |
| Drivers included |
Yes |
| Performance |
| Baud rate |
921.6 Kbit/s |
| Logistics data |
| Harmonized System (HS) code |
84719000 |
| Packaging data |
| Package width |
150 mm |
| Package depth |
220 mm |
| Package height |
53 mm |
| Package weight |
378 g |
| Features |
| Product colour |
Silver |
| Housing material |
Plastic |
| Plug and Play |
Yes |
| Certification |
CE, FCC, RoHS |
Features
StarTech.com 4 Port USB to RS232 Serial DB9 Adapter Hub. Host interface: USB, Hub interfaces: Serial. Product colour: Silver, Housing material: Plastic, Certification: CE, FCC, RoHS. Power consumption (typical): 1 W, Power consumption (max): 1.5 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow..., Other operating systems supported: Windows XP Embedded. Width: 66.5 mm, Depth: 150 mm, Height: 26 mm
Product Description
Add four RS232 serial ports to any notebook or desktop computer using a single USB port
This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.
The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.
A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.
