Stock Status: 1x unit in stock

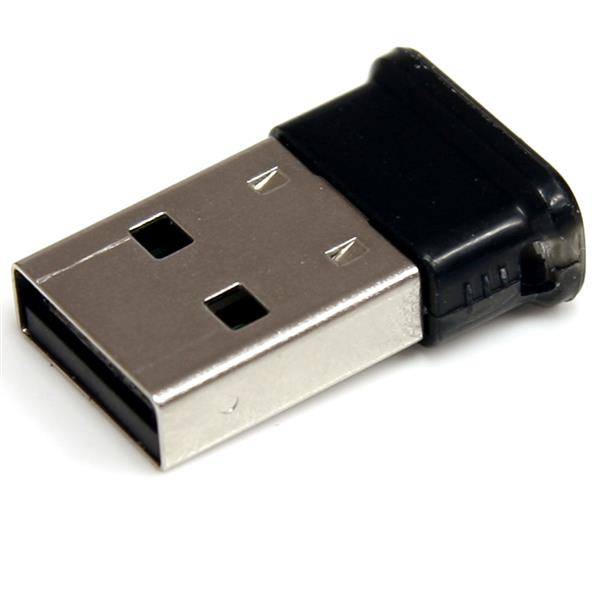

The USBBT1EDR2 USB to Class 1 Bluetooth Adapter with EDR is a micro-sized adapter that adds Bluetooth capabilities to a computer through an available USB port. This makes it possible to connect to devices wirelessly, at ranges up to 100m (328ft), with minimal power consumption.
The USB-Bluetooth Adapter supports the Bluetooth v2.1 specification, along with Enhanced Data Rate (EDR), for transfer rates up to 3 Mbps. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
| Networking |
| Maximum data transfer rate |
3 Mbit/s |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Modulation |
DQPSK |
| Maximum operating distance |
100 m |
| Bluetooth version |
2.1+EDR |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Profess |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016 |
| Weight & dimensions |
| Width |
9.7 mm |
| Depth |
20 mm |
| Height |
6 mm |
| Weight |
2 g |
| Ports & interfaces |
| Connectivity technology |
Wireless |
| Host interface |
USB |
| Interface |
Bluetooth |
| Operational conditions |
| Operating temperature (T-T) |
10 - 50 °C |
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating relative humidity (H-H) |
0 - 75% |
| Power |
| Power consumption (typical) |
1 W |
| Design |
| Internal |
No |
| Product colour |
Black |
| Chipset |
CSR BC0401PC08 |
| LED indicators |
Power |
| Certification |
RoHS, CE, FCC |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Package width |
142 mm |
| Package depth |
172 mm |
| Package height |
33 mm |
| Package weight |
75 g |
Features
StarTech.com Mini USB Bluetooth 2.1 Adapter - Class 1 EDR Wireless Network Adapter. Connectivity technology: Wireless, Host interface: USB, Interface: Bluetooth. Maximum data transfer rate: 3 Mbit/s, Wi-Fi band: Single-band (2.4 GHz). Product colour: Black
Product Description
The USBBT1EDR2 USB to Class 1 Bluetooth Adapter with EDR is a micro-sized adapter that adds Bluetooth capabilities to a computer through an available USB port. This makes it possible to connect to devices wirelessly, at ranges up to 100m (328ft), with minimal power consumption.
The USB-Bluetooth Adapter supports the Bluetooth v2.1 specification, along with Enhanced Data Rate (EDR), for transfer rates up to 3 Mbps. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
