Stock Status: 1x unit in stock

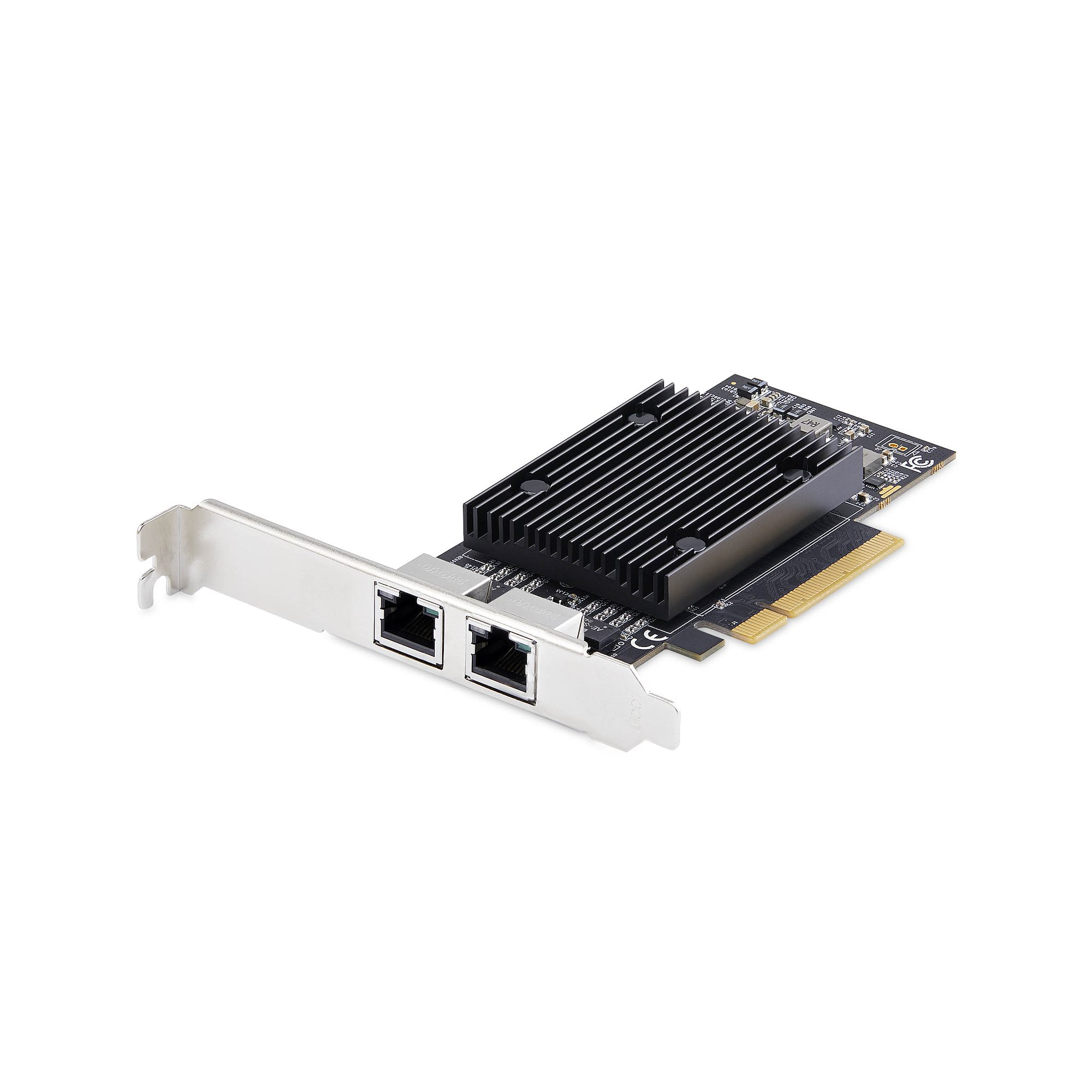

Add two 10 Gigabit Ethernet ports to a PC via copper cable using an available PCIe slot.
This PCIe network card makes it easy to add two 10GBase-T ports to your server or workstation, providing an affordable solution for high-bandwidth applications. It supports 10GbE over Cat 6 cabling up to 55 meters and Cat 6A cabling up to 100 meters.
Versatile and Cost-Effective
Compatible with a broad range of operating systems, this versatile dual-port NIC reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs and online storage/backup. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
High-Performance Connectivity
This 2-port PCI Express 10GBase-T network card features the Broadcom BCM57416 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer.
Compliant with IEEE 802.1Q standards, this network card offers an efficient way to upgrade or replace your existing network ports with dual 1G/10G-compatible RJ45 ports, delivering up to 10Gbps of throughput per port in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
Easy Installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis and includes a low-profile/half-height installation bracket that you can use as needed.
Specs
| Networking |
| Maximum data transfer rate |
20000 Mbit/s |
| Networking standards |
IEEE 802.1Q, IEEE 802.3ad |
| Ethernet LAN |
Yes |
| Auto MDIX IEEE |
Yes |
| Full duplex |
Yes |
| Jumbo frames support |
Yes |
| Auto-negotiation |
Yes |
| Jumbo frames |
9000 |
| VLAN tagging |
Yes |
| Link aggregation |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Weight & dimensions |
| Width |
121 mm |
| Depth |
146.5 mm |
| Height |
22 mm |
| Weight |
122 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
2 |
| PCI version |
2.0 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Design |
| Internal |
Yes |
| Component for |
PC |
| Product colour |
Black |
| Chipset |
Broadcom BCM57416 |
| LED indicators |
Activity, Status |
| Logistics data |
| Master (outer) case width |
605 mm |
| Master (outer) case length |
385 mm |
| Master (outer) case height |
325 mm |
| Products per master (outer) case |
80 pc(s) |
| Packaging data |
| Package width |
170 mm |
| Package depth |
142 mm |
| Package height |
30 mm |
| Package weight |
130 g |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Packaging content |
| Manual |
Yes |
Features
StarTech.com 2-Port PCIe 10Gb Ethernet Network Card, 10GbE Network Interface Card, Broadcom BCM57416 Chipset, Dual RJ45 10GBase-T/Gigabit, NIC Card, TAA. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 20000 Mbit/s. Product colour: Black
Product Description
Add two 10 Gigabit Ethernet ports to a PC via copper cable using an available PCIe slot.
This PCIe network card makes it easy to add two 10GBase-T ports to your server or workstation, providing an affordable solution for high-bandwidth applications. It supports 10GbE over Cat 6 cabling up to 55 meters and Cat 6A cabling up to 100 meters.
Versatile and Cost-Effective
Compatible with a broad range of operating systems, this versatile dual-port NIC reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs and online storage/backup. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
High-Performance Connectivity
This 2-port PCI Express 10GBase-T network card features the Broadcom BCM57416 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer.
Compliant with IEEE 802.1Q standards, this network card offers an efficient way to upgrade or replace your existing network ports with dual 1G/10G-compatible RJ45 ports, delivering up to 10Gbps of throughput per port in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
Easy Installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis and includes a low-profile/half-height installation bracket that you can use as needed.
