Stock Status: 1x unit in stock

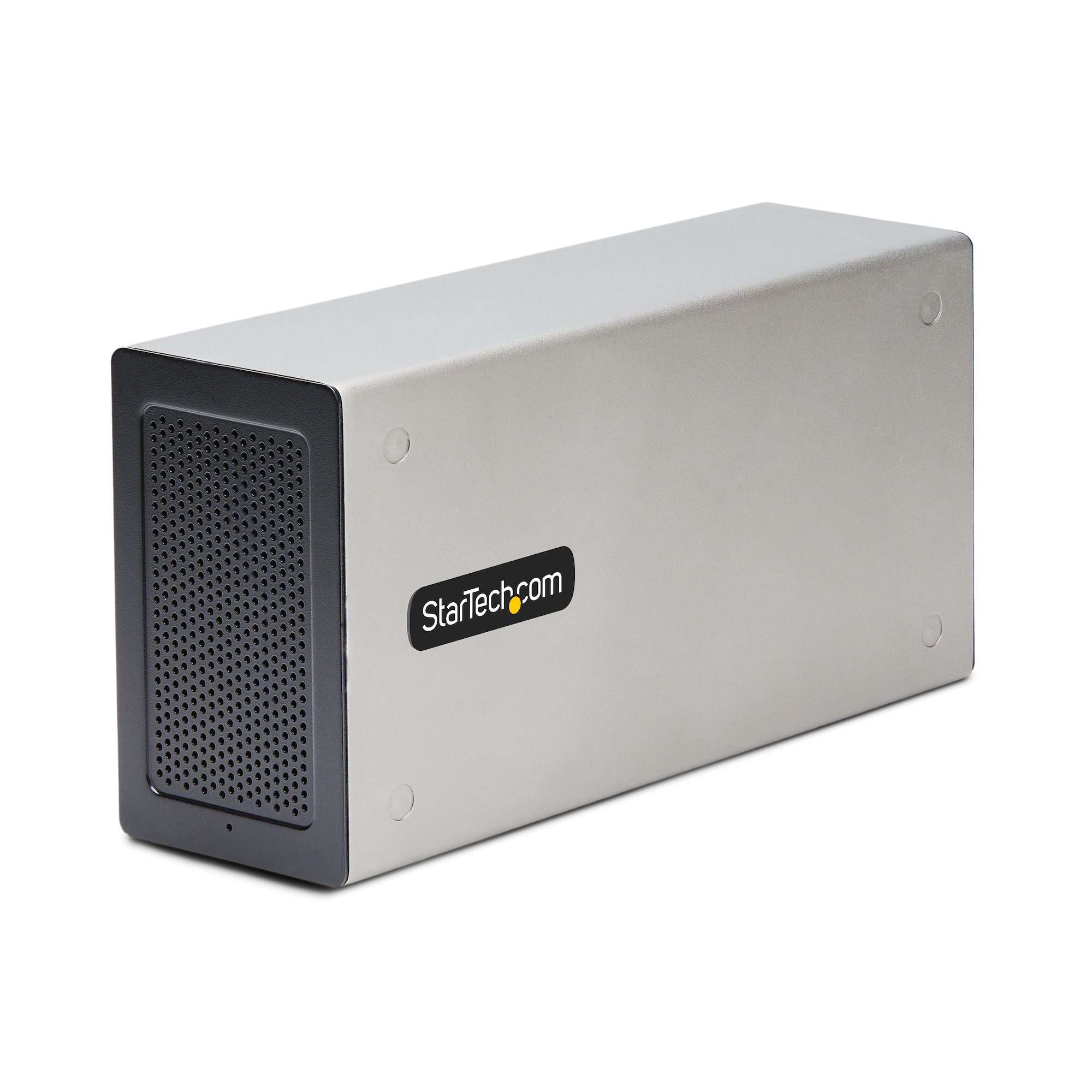

Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.
Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.
Enhanced Computer Capabilities
Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.
Flexible Card Support
The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.
The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.
8K & 4K Monitor Support
Connect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).
Compatibility
The enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux.
The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.
Note: Some expansion cards installed in the chassis may require drivers to be installed.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
281 mm |
| Depth |
84 mm |
| Height |
142 mm |
| Weight |
1.6 kg |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 3 |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| HDMI ports quantity |
0 |
| Microphone in |
No |
| Headphone outputs |
0 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Thunderbolt 3 ports quantity |
2 |
| PCI Express x16 slots |
2 |
| PCIe version |
3.0 |
| Power |
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| Input current |
3 A |
| Output voltage |
12 V |
| Output current |
10 A |
| Power consumption (max) |
120 W |
| Compatible power plug types |
AU, EU, JP, UK, US |
| Packaging content |
| Cables included |
Thunderbolt |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
| Chipset |
Titan Ridge DSL7440 (x2), Ti TPS65983B (x2) |
| Operational conditions |
| Operating temperature (T-T) |
5 - 65 °C |
| Storage temperature (T-T) |
-20 - 65 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Networking |
| Ethernet LAN |
No |
| Performance |
| Product colour |
Silver |
| Card reader integrated |
No |
| HD type |
8K Ultra HD |
| Number of displays supported |
2 |
| Maximum refresh rate |
60 Hz |
| LED indicators |
Power |
| Rubber feet |
Yes |
| Housing material |
Aluminium |
| Technical details |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Cooling |
| Built-in fan |
Yes |
| Number of fans |
1 fan(s) |
| Fan diameter |
6 cm |
| Packaging data |
| Package width |
285 mm |
| Package depth |
353 mm |
| Package height |
143 mm |
| Package weight |
3.4 kg |
| Logistics data |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case width |
375 mm |
| Master (outer) case length |
455 mm |
| Master (outer) case height |
325 mm |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA. Connectivity technology: Wired, Host interface: Thunderbolt 3. Product colour: Silver, HD type: 8K Ultra HD, Maximum refresh rate: 60 Hz. Number of fans: 1 fan(s), Fan diameter: 6 cm. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 3 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,...
Product Description
Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.
Add two PCI-Express 3.0 x16 capable cards and increase the potential of a Thunderbolt 3 or 4 capable laptop, desktop, or all-in-one system. This Thunderbolt 3 PCIe Expansion Chassis lets you take advantage of the vast range of PCIe expansion cards with computers that lack PCIe slots. The chassis lets you connect an external monitor via the DisplayPort (DP) or Thunderbolt 3 ports, supporting Ultra High Definition (UHD) 4K or 8K resolutions.
Enhanced Computer Capabilities
Connect the expansion box to a Thunderbolt 3 or 4 computer with the included 3.3ft (1m) Thunderbolt-certified cable. The chassis features dual PCIe 3.0 x16 slots with 32Gbps of bandwidth that is shared dynamically between both slots (each slot supports up to 2700MBps/21.6Gbps). Add extra functionality to a host device using video capture cards, high-speed fiber or Ethernet networking, NVMe drives, FireWire, sound cards, or any other PCIe-compatible card.
Flexible Card Support
The expansions chassis supports single-slot cards to a maximum length of 8in (20.3cm), allowing current or legacy PCIe cards to be installed. The built-in fan ensures active cooling for your hardware, preventing overheating during heavy usage.
The TAA-Compliant chassis delivers up to 25W per slot, ensuring optimal performance for your connected devices. In addition, the two internal 12V 15W SATA power ports ensure the installed cards have enough power (up to 40W per card) at their disposal.
8K & 4K Monitor Support
Connect a second high-resolution monitor using the DP 1.4 or Thunderbolt 3 ports at the back of the chassis. Enjoy video resolutions of up to single 8K or 5K 60Hz or dual 4K 60Hz (other video resolutions are also supported).
Compatibility
The enclosure is driverless, enabling rapid deployment and is supported in macOS, Windows, and Linux.
The chassis can be placed horizontally or vertically, adapting to your workspace. The toolless design and aluminum construction ensure fast card installation and longevity.
Note: Some expansion cards installed in the chassis may require drivers to be installed.
