Stock Status: 1x unit in stock
Create a mobile workstation with dual or triple 4K video via HDMI and/or DisplayPort (MST support required), three USB-A ports, Gigabit Ethernet and pass-through power delivery to charge the laptop

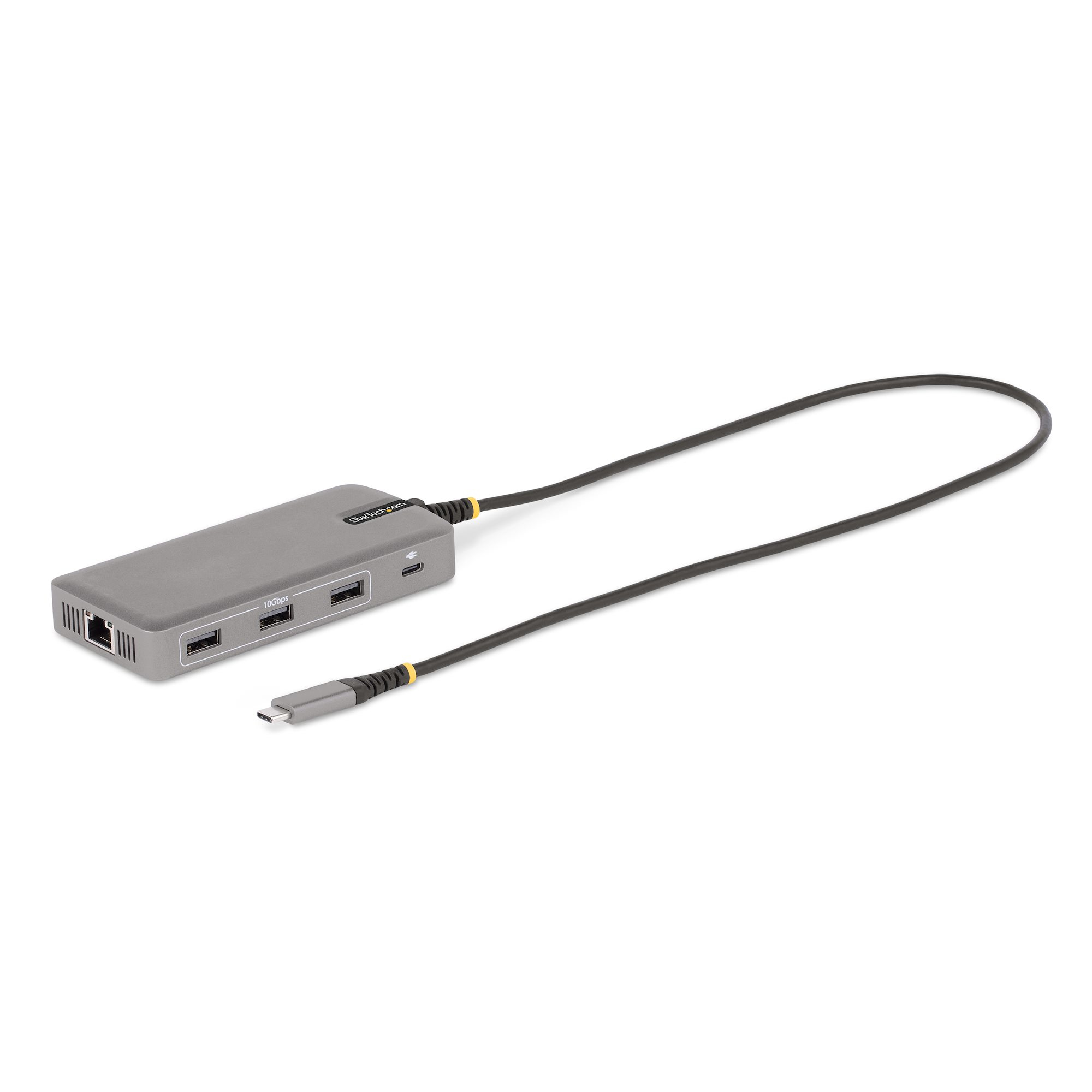

This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.
High-Performance Triple Video via MST
The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 60Hz and 2x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.
Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.
Connect USB Peripherals
The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).
Extra Long Cable & Durable Build
The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.
100W Power Delivery
Connect a USB-C power adapter to the pass-through port in order to charge the host laptop.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
MAC Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices.
•
Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
56 mm |
| Depth |
122 mm |
| Height |
18 mm |
| Weight |
113 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity |
2 |
| Microphone in |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.0b |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Power |
| Power source type |
USB |
| Power consumption (typical) |
15 W |
| USB cable length |
0.6 m |
| Packaging content |
| Quick start guide |
Yes |
| Other features |
| Chipset |
Parade - PS8469, Synaptics - VMM5322, VIA - VL822, VIA - VL103, Realtek - RTL8153 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wake-on-LAN ready |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex |
Yes |
| Performance |
| Product colour |
Grey |
| Card reader integrated |
No |
| Data transfer rate |
10 Gbit/s |
| HD type |
4K Ultra HD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
3 |
| Maximum refresh rate |
60 Hz |
| LED indicators |
Yes |
| UASP support |
Yes |
| Housing material |
Plastic |
| Technical details |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Other operating systems supported |
ChromeOS |
| Packaging data |
| Package width |
124 mm |
| Package depth |
241 mm |
| Package height |
32 mm |
| Package weight |
210 g |
| Logistics data |
| Products per master (outer) case |
24 pc(s) |
| Master (outer) case width |
290 mm |
| Master (outer) case length |
530 mm |
| Master (outer) case height |
235 mm |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W PD Pass-Through, GbE, Travel Dock, Windows & ChromeOS. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power consumption (typical): 15 W, USB cable length: 0.6 m. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Other operating systems supported: ChromeOS
Product Description
Create a mobile workstation with dual or triple 4K video via HDMI and/or DisplayPort (MST support required), three USB-A ports, Gigabit Ethernet and pass-through power delivery to charge the laptop
This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.
High-Performance Triple Video via MST
The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 60Hz and 2x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.
Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.
Connect USB Peripherals
The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).
Extra Long Cable & Durable Build
The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.
100W Power Delivery
Connect a USB-C power adapter to the pass-through port in order to charge the host laptop.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
MAC Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices.
•
Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
