Stock Status: 1x unit in stock
USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch

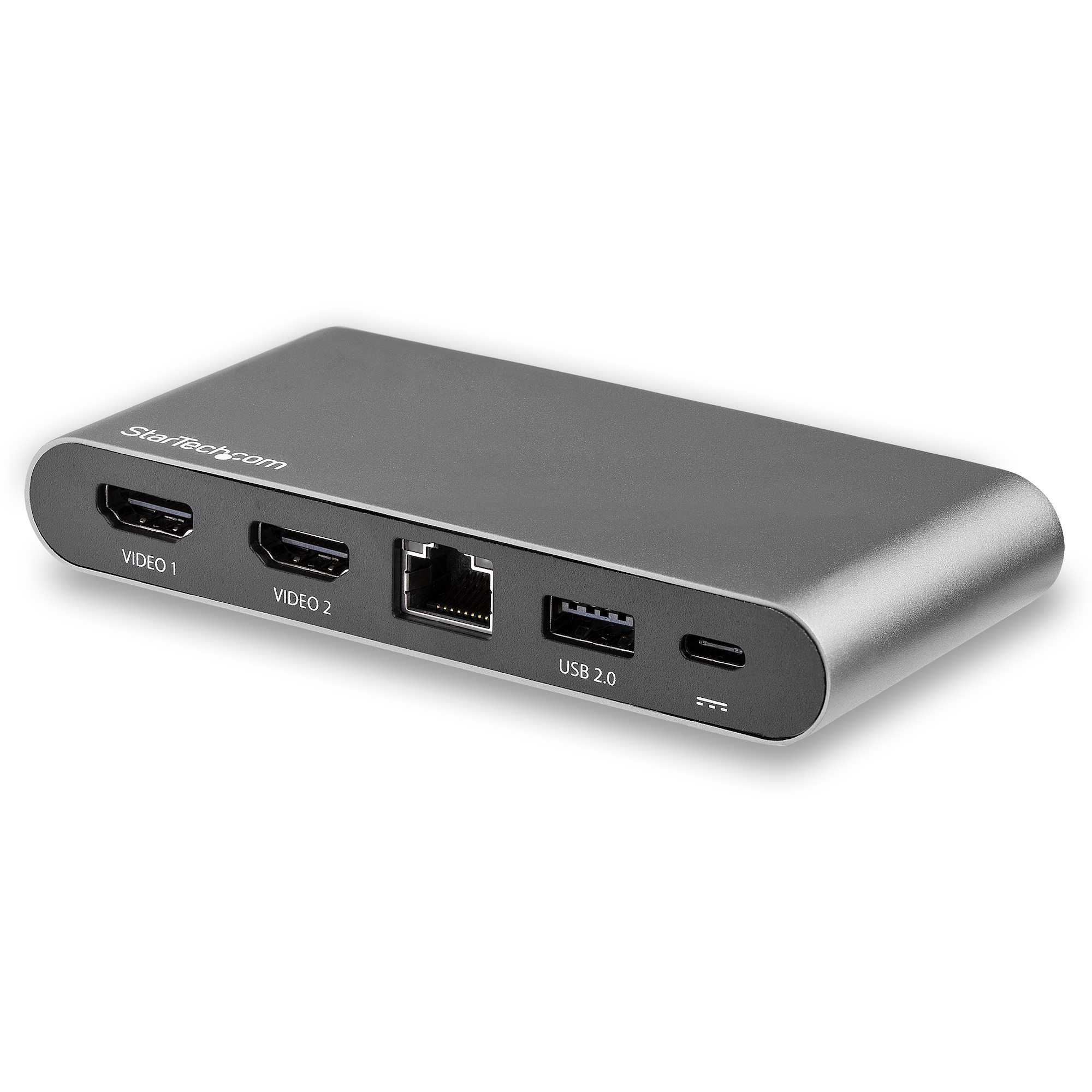

Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual HDMI monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.
DisplayPort™ Alternate Mode to Choose Your Video Display Output
Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.
Switch Left
Switch Right
2 Lane DP Alt- Mode
4 Lane DP Alt Mode
USB 3.0
(5Gbps)
USB 2.0
(480 Mbps)
Dual 1080p Monitors
or
Single 4K 30Hz Monitor
Dual 4K 30Hz Monitors
or
Single 4K 60Hz Monitor
Reliable 100W Power Delivery Passthrough
The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.
Multi-Stream Transport for Driverless Displays
The multi-stream transport technology (MST) in this dock powers two HDMI monitors with no driver installation required so you are up and running faster.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
60 mm |
| Depth |
120 mm |
| Height |
19 mm |
| Weight |
281 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
2 |
| Microphone in |
No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| Packaging content |
| Cables included |
USB Type-C |
| Quick start guide |
Yes |
| Other features |
| Chipset |
VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, MegaChips - MCDP2900, RealTek - RTL8153 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X |
Yes |
| Full duplex |
Yes |
| Performance |
| Product colour |
Grey |
| Card reader integrated |
No |
| Data transfer rate |
5 Gbit/s |
| Maximum digital resolution |
3840 x 2160 pixels |
| UASP support |
Yes |
| Housing material |
Plastic |
| Certification |
CE, FCC, REACH |
| Technical details |
| Compliance certificates |
RoHS |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpr |
| Mac operating systems supported |
Mac OS X 13.0 Ventura |
| Packaging data |
| Package width |
145 mm |
| Package depth |
208 mm |
| Package height |
38 mm |
| Logistics data |
| Products per master (outer) case |
24 pc(s) |
| Master (outer) case width |
305 mm |
| Master (outer) case length |
435 mm |
| Master (outer) case height |
275 mm |
| Harmonized System (HS) code |
84733020 |
Features
StarTech.com USB C Dock - 4K Dual Monitor HDMI Display - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Grey, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 13.0 Ventura. Width: 60 mm, Depth: 120 mm, Height: 19 mm
Product Description
USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch
Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual HDMI monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.
DisplayPort™ Alternate Mode to Choose Your Video Display Output
Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.
Switch Left
Switch Right
2 Lane DP Alt- Mode
4 Lane DP Alt Mode
USB 3.0
(5Gbps)
USB 2.0
(480 Mbps)
Dual 1080p Monitors
or
Single 4K 30Hz Monitor
Dual 4K 30Hz Monitors
or
Single 4K 60Hz Monitor
Reliable 100W Power Delivery Passthrough
The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.
Multi-Stream Transport for Driverless Displays
The multi-stream transport technology (MST) in this dock powers two HDMI monitors with no driver installation required so you are up and running faster.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.
The StarTech.com Advantage
