Stock Status: 1x unit in stock

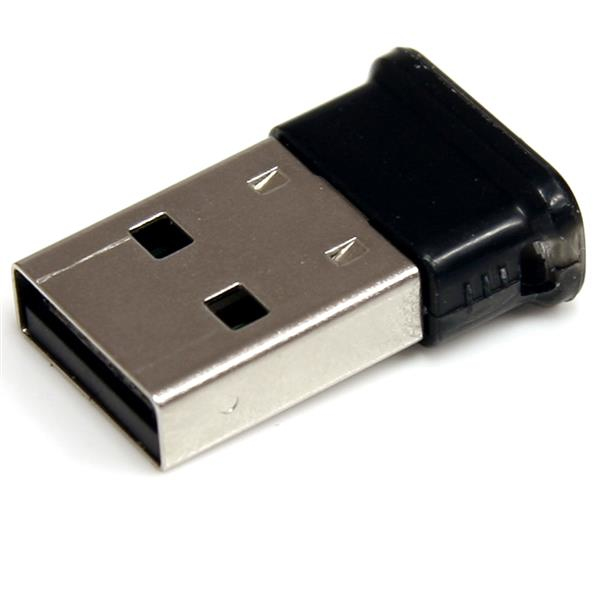

The USBBT1EDR2 USB to Class 1 Bluetooth Adapter with EDR is a micro-sized adapter that adds Bluetooth capabilities to a computer through an available USB port. This makes it possible to connect to devices wirelessly, at ranges up to 100m (328ft), with minimal power consumption.
The USB-Bluetooth Adapter supports the Bluetooth v2.1 specification, along with Enhanced Data Rate (EDR), for transfer rates up to 3 Mbps. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
| Networking |
| Maximum data transfer rate |
3 Mbit/s |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Bluetooth version |
2.1+EDR |
| Modulation |
DQPSK |
| Maximum operating distance |
100 m |
| System requirements |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Window |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X |
| Server operating systems supported |
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016 |
| Weight & dimensions |
| Width |
9.7 mm |
| Depth |
20 mm |
| Height |
6 mm |
| Weight |
2 g |
| Ports & interfaces |
| Connectivity technology |
Wireless |
| Host interface |
USB |
| Interface |
Bluetooth |
| Operational conditions |
| Operating temperature (T-T) |
10 - 50 °C |
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating relative humidity (H-H) |
0 - 75% |
| Power |
| Power consumption (typical) |
1 W |
| Other features |
| Chipset |
CSR BC0401PC08 |
| Package length |
14.2 cm |
| Design |
| Internal |
N |
| Product colour |
Black |
| LED indicators |
Power |
| Certification |
RoHS, CE, FCC |
| Chipset |
CSR BC0401PC08 |
| Packaging data |
| Package width |
142 mm |
| Package depth |
172 mm |
| Package height |
33 mm |
| Package weight |
75 g |
Features
StarTech.com Mini USB Bluetooth 2.1 Adapter - Class 1 EDR Wireless Network Adapter. Connectivity technology: Wireless, Host interface: USB, Interface: Bluetooth. Maximum data transfer rate: 3 Mbit/s, Wi-Fi band: Single-band (2.4 GHz). Product colour: Black
Product Description
The USBBT1EDR2 USB to Class 1 Bluetooth Adapter with EDR is a micro-sized adapter that adds Bluetooth capabilities to a computer through an available USB port. This makes it possible to connect to devices wirelessly, at ranges up to 100m (328ft), with minimal power consumption.
The USB-Bluetooth Adapter supports the Bluetooth v2.1 specification, along with Enhanced Data Rate (EDR), for transfer rates up to 3 Mbps. The adapter uses a small form factor design that makes it conveniently portable and unobtrusive, when connected to a computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
