Stock Status: 1x unit in stock
PCIe 3.0 | USB Type-C & USB Type-A | 5V 3A/15W via USB-C | 5V 0.9A/4.5W via USB-A | UASP

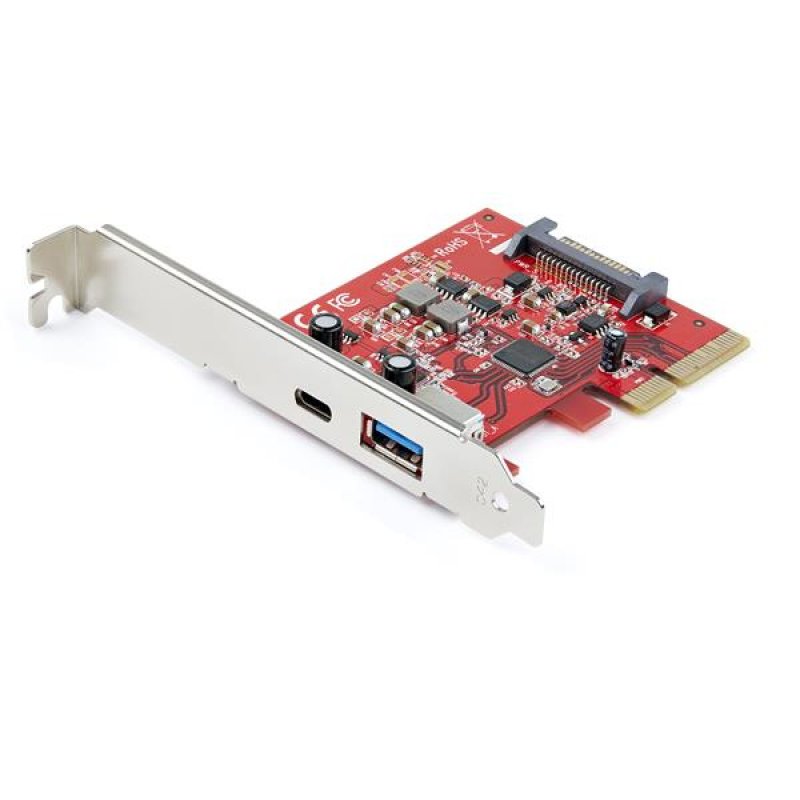

This USB 3.1 Gen 2 card lets you add one USB-C port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.1 Gen 2 (also known as USB 3.2 Gen 2x1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected.Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.USB 3.1 Gen 2 PerformanceBy adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices.With higher data throughput support, this USB 3.1 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions.Compatible with Older USB DevicesConnecting older peripherals isn't a problem. This versatile dual-port USB 3.1 card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C port using a variety of USB-C cables and adapters.Easy InstallationThe USB 3.1 card is compatible with a broad range of Windows, macOS and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.Faster Transfer Speeds with UASPThe card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, macOS (10.8 or above), and Linux.In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.1 Gen 2 at peak performance.At the same peak in testing, UASP also shows an 80% reduction in required processor resources.The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Add-On card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 10Gbps per port; 1x USB-A & 1x USB-C
- POWER: Expansion card w/ SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port & 5V 0.9A/4.5W via the USB-A port
- MAX PERFORMANCE WITH USB DEVICES: 2-port USB-A & USB-C PCIe card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives
Specs
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur |
| Linux operating systems supported |
Y |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card form factor |
Full-height / Low-profile |
| Expansion card standard |
PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Operational conditions |
| Operating temperature (T-T) |
5 - 50 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
| Width |
81 mm |
| Depth |
120 mm |
| Height |
19 mm |
| Weight |
48 g |
| Design |
| Internal |
Y |
| Product colour |
Red |
| Mean time between failures (MTBF) |
2684396 h |
| Certification |
Microsoft WHQL, CE, FCC, REACH |
| Logistics data |
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case width |
370 mm |
| Master (outer) case length |
365 mm |
| Master (outer) case height |
500 mm |
| Packaging data |
| Mounting brackets included |
Y |
| Quick installation guide |
Y |
| Package width |
170 mm |
| Package depth |
142 mm |
| Package height |
30 mm |
| Package weight |
123 g |
| Features |
| Chipset |
ASMedia - ASM3142 |
| Data transfer rate (max) |
10 Gbit/s |
| UASP support |
Y |
| Harmonized System (HS) code |
84733020 |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com 2-Port 10Gbps USB-A & USB-C PCIe Card - USB 3.1 Gen 2 PCI Express Type C/A Host Controller Card Adapter - USB 3.2 Gen 2x1 PCIe Expansion Add-On Card - Windows, macOS, Linux. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card form factor: Full-height / Low-profile. Product colour: Red, Mean time between failures (MTBF): 2684396 h, Certification: Microsoft WHQL, CE, FCC, REACH. Chipset: ASMedia - ASM3142, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019. Width: 81 mm, Depth: 120 mm, Height: 19 mm
Product Description
PCIe 3.0 | USB Type-C & USB Type-A | 5V 3A/15W via USB-C | 5V 0.9A/4.5W via USB-A | UASP
This USB 3.1 Gen 2 card lets you add one USB-C port and one USB-A port to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps per port. USB 3.1 Gen 2 (also known as USB 3.2 Gen 2x1) PCIe Add-On card supports Multiple INs, maintains optimal bandwidth even when mixed speed devices are connected.Plus, by adding one USB-C and one USB-A port to your PC, you can easily connect legacy, modern, and future USB devices, regardless of the USB connector type.USB 3.1 Gen 2 PerformanceBy adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you're ready for both current and future high-bandwidth USB-A and USB-C devices.With higher data throughput support, this USB 3.1 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the expansion card with SATA power enables supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port and 5V 0.9A/4.5W via the USB-A port. The card is ideal for use with high performance external storage solutions.Compatible with Older USB DevicesConnecting older peripherals isn't a problem. This versatile dual-port USB 3.1 card is backward compatible with legacy USB 3.0/2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices. You can also connect older devices on the USB Type-C port using a variety of USB-C cables and adapters.Easy InstallationThe USB 3.1 card is compatible with a broad range of Windows, macOS and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.Faster Transfer Speeds with UASPThe card supports USB data transfer speeds of 10Gbps. But, you can experience transfer speeds up to 70% faster than conventional USB, when connected to a computer that also supports UASP. With UASP you can utilize the full potential of a SATA III SSD or HDD. UASP is supported in Windows 8, macOS (10.8 or above), and Linux.In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.1 Gen 2 at peak performance.At the same peak in testing, UASP also shows an 80% reduction in required processor resources.The PEXUSB311AC3 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Add-On card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 10Gbps per port; 1x USB-A & 1x USB-C
- POWER: Expansion card w/ SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB-C port & 5V 0.9A/4.5W via the USB-A port
- MAX PERFORMANCE WITH USB DEVICES: 2-port USB-A & USB-C PCIe card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives
