Stock Status: 1x unit in stock

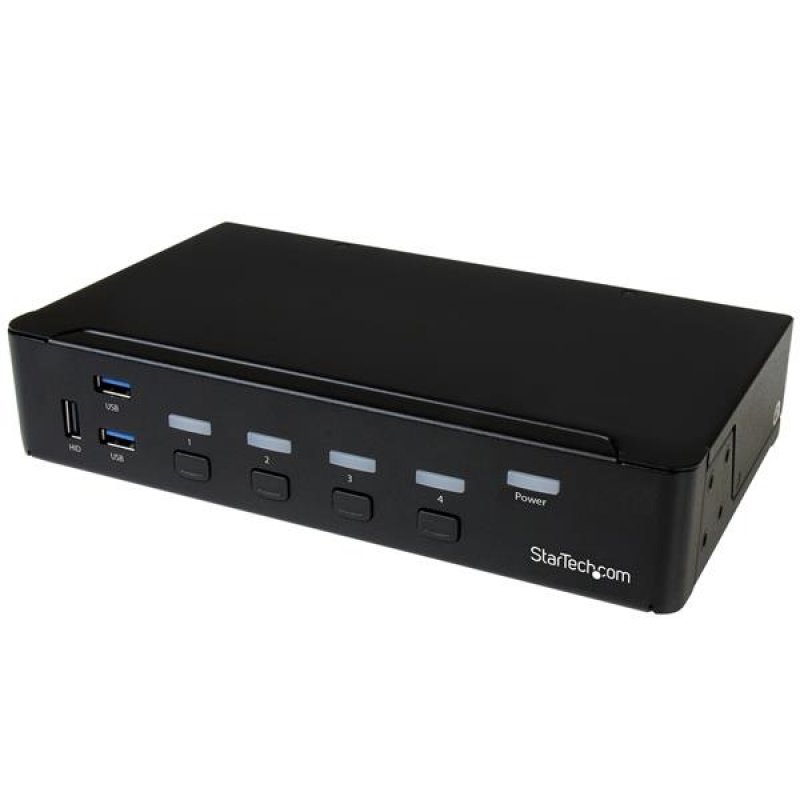

This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
HD picture quality
Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431HDU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Console ports |
3.5mm headphone, HDMI, USB A |
| Console USB ports quantity |
4 |
| USB 3.0 (3.1 Gen 1) Type-A hub ports quantity |
3 |
| USB connector type |
USB Type-A |
| Audio connections |
Y |
| Headphone outputs |
4 |
| DC-in jack |
Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
3 |
| Weight & dimensions |
| Width |
130 mm |
| Depth |
220 mm |
| Height |
43 mm |
| Weight |
1.1 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Networking |
| Ethernet LAN |
N |
| Power |
| AC input voltage |
100-240 V |
| Input current |
0.6 A |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU,EU,UK,US |
| Display |
| Built-in display |
N |
| On Screen Display (OSD) |
N |
| Packaging content |
| Quick installation guide |
Y |
| Rubber feet |
Y |
| Other features |
| Audio support |
Y |
| IP control |
N |
| Design |
| Rack mounting |
Y |
| Product colour |
Black |
| Maximum cable length |
10000 m |
| LED indicators |
Link, Power |
| Hot keys |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, UL, PSE |
| Mean time between failures (MTBF) |
142000 h |
| Performance |
| Maximum resolution |
1920 x 1080 pixels |
| Plug and Play |
Y |
| Daisy chain |
N |
| Audio channels |
2.0 |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging data |
| Package width |
297 mm |
| Package depth |
247 mm |
| Package height |
85 mm |
| Package weight |
1.6 kg |
Features
StarTech.com 4-Port HDMI KVM Switch - USB 3.0 - 1080p. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. Maximum resolution: 1920 x 1080 pixels. Product colour: Black, Maximum cable length: 10000 m, LED indicators: Link, Power. AC input voltage: 100-240 V, Input current: 0.6 A, Output voltage: 12 V. Width: 130 mm, Depth: 220 mm, Height: 43 mm
Product Description
This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.
Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.
With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.
HD picture quality
Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.
Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.
The SV431HDU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
