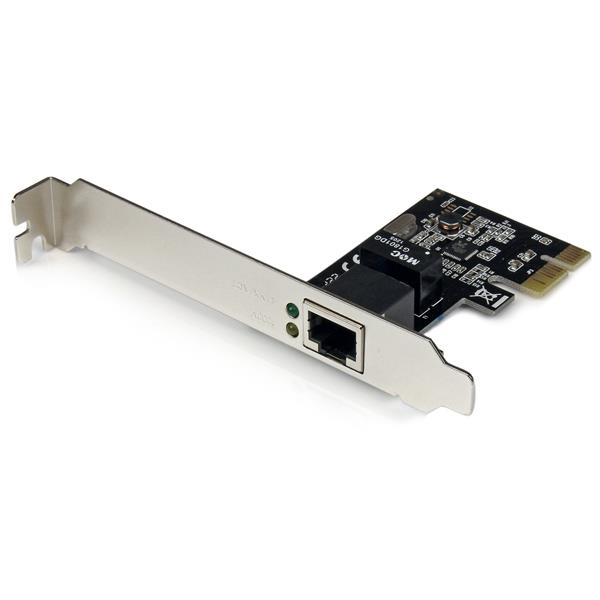

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Specs
| Networking |
| Maximum data transfer rate |
1000 Mbit/s |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN |
Y |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000BaseT(X) |
| Wi-Fi |
N |
| Wake-on-LAN ready |
Y |
| Auto MDIX IEEE |
Y |
| Full duplex |
Y |
| Jumbo frames support |
Y |
| Supported network protocols |
CSMA/CD |
| Jumbo frames |
9000 |
| System requirements |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 |
| Mac operating systems supported |
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Linux operating systems supported |
Y |
| Server operating systems supported |
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Weight & dimensions |
| Width |
120.3 mm |
| Depth |
67.9 mm |
| Height |
18 mm |
| Weight |
40 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| Ethernet LAN (RJ-45) ports |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
0 - 100 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Other features |
| Chipset |
Realtek RTL8111E |
| Supported data transfer rates |
10/100/1000 Mbit/s |
| Jumbo frames |
9000 |
| Design |
| Internal |
Y |
| LED indicators |
Activity, Link |
| Mean time between failures (MTBF) |
376212 h |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
| Chipset |
Realtek RTL8111E |
| Packaging data |
| Manual |
Y |
| Drivers included |
Y |
| Low-profile bracket |
Y |
| Package width |
142 mm |
| Package depth |
171 mm |
| Package height |
32 mm |
| Package weight |
126 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging content |
| Manual |
Y |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
Product Description
The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
