Share keyboard, mouse, and DisplayPort display between four HD multimedia systems

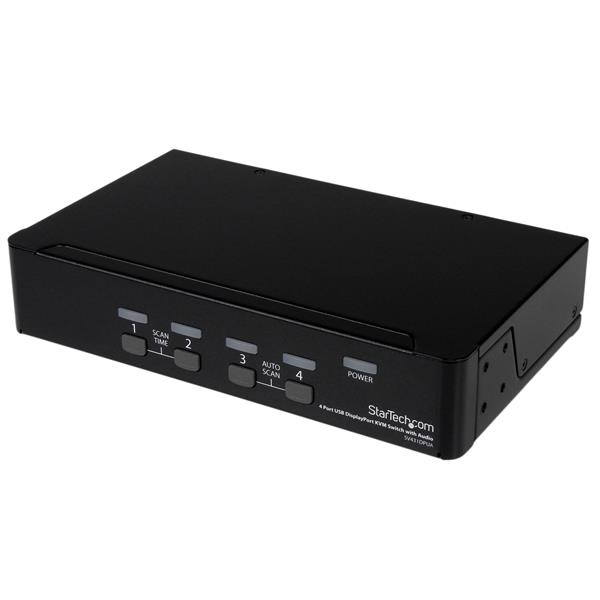

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
DisplayPort, 3.5mm headphone, 3.5mm mic, USB A |
| USB hub |
Y |
| Audio connections |
Y |
| Headphone outputs |
5 |
| Number of microphone inputs |
5 |
| DC-in jack |
Y |
| Console USB ports quantity |
4 |
| Weight & dimensions |
| Width |
221 mm |
| Depth |
130.6 mm |
| Height |
44 mm |
| Weight |
1 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
0.8 A |
| Output voltage |
12 V |
| Output current |
1.5 A |
| External power adapter |
Y |
| Power plug type |
Type M |
| Compatible power plug types |
AU,EU,UK,US |
| Display |
| Built-in display |
N |
| On Screen Display (OSD) |
N |
| Packaging content |
| Manual |
Y |
| AC adapter included |
Y |
| Rubber feet |
Y |
| Other features |
| Audio support |
Y |
| IP control |
N |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Y |
| Push button |
Y |
| Hot keys |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, UL, TAA, REACH |
| Mean time between failures (MTBF) |
136000 h |
| Performance |
| Maximum resolution |
3840 x 2400 pixels |
| Maximum digital resolution |
2560 x 1600 pixels |
| DDC2B support |
Y |
| Hot-Plug support |
Y |
| Plug and Play |
Y |
| Daisy chain |
N |
| Number of users |
1 user(s) |
| Audio channels |
7.1 |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging data |
| Package width |
214 mm |
| Package depth |
411 mm |
| Package height |
87 mm |
| Package weight |
1.6 kg |
Features
StarTech.com 4 Port USB DisplayPort KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 3840 x 2400 pixels, Maximum digital resolution: 2560 x 1600 pixels, Number of users: 1 user(s). Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 136000 h. AC input voltage: 100 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Width: 221 mm, Depth: 130.6 mm, Height: 44 mm
Product Description
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
