Stock Status: 1x unit in stock
Increase peripheral and equipment accessibility with this vented sliding cabinet shelf

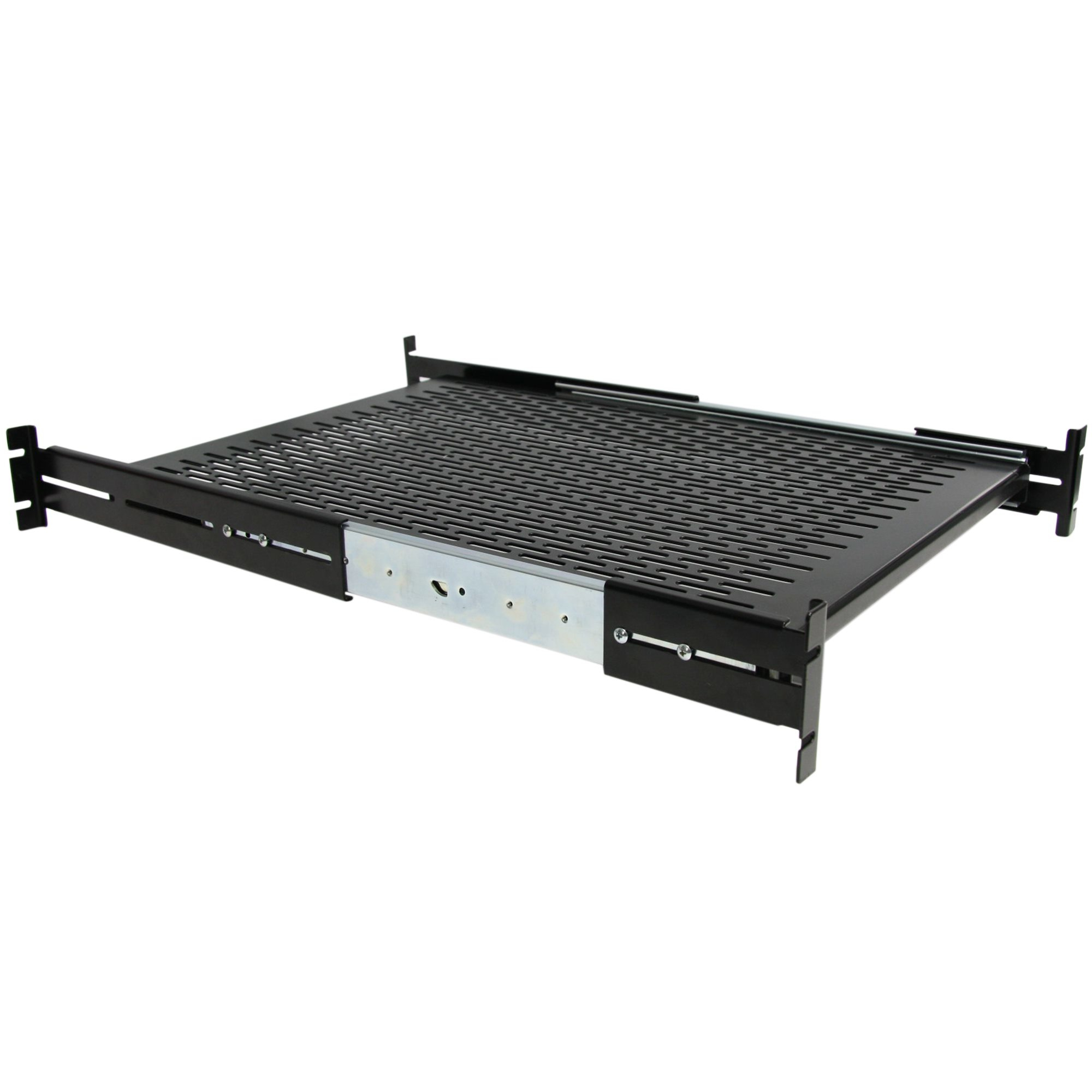

The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack.
Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
452 mm |
| Depth |
610 mm |
| Height |
45 mm |
| Mounting depth (min) |
51 cm |
| Mounting depth (max) |
74.4 cm |
| Weight |
6.4 kg |
| Features |
| Type |
Adjustable shelf |
| Product colour |
Black |
| Housing material |
Steel |
| Maximum weight capacity |
22.7 kg |
| Rack capacity |
2U |
| Compliance industry standards |
EIA RS310-C |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Packaging content |
| Screws included |
Yes |
| Screw type |
M6 |
| Number of screws |
8 |
| Cage nuts included |
Yes |
| Number of cage nuts |
8 |
| Logistics data |
| Master (outer) case width |
527 mm |
| Master (outer) case length |
680 mm |
| Master (outer) case height |
138 mm |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85389099 |
| Packaging data |
| Package width |
527 mm |
| Package depth |
680 mm |
| Package height |
138 mm |
| Package weight |
8.4 kg |
Features
StarTech.com 2U Sliding Server Rack Mount Shelf - 20 to 30in Adjustable Mounting Depth - Vented - 50lb - Heavy Duty Universal 19” Rack Shelf for Equipment Rack - 24in Deep. Type: Adjustable shelf, Product colour: Black, Housing material: Steel. Width: 452 mm, Depth: 610 mm, Height: 45 mm. Package width: 527 mm, Package depth: 680 mm, Package height: 138 mm. Screw type: M6. Master (outer) case width: 527 mm, Master (outer) case length: 680 mm, Master (outer) case height: 138 mm
Product Description
Increase peripheral and equipment accessibility with this vented sliding cabinet shelf
The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack.
Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.
