Stock Status: 1x unit in stock
Control up to four DisplayPort computers with mouse roaming, quad view, and picture-in-picture support
Streamline complex workflows by managing up to four DisplayPort computers from a single keyboard, mouse, and display. With support for true 4K 60 Hz (4:4:4) resolution, this multiview KVM delivers crisp text and precise visuals across Windows, macOS, and Linux workstations.
Multiview Monitoring
Maintain full awareness and react faster by viewing multiple systems at once. Flexible display modes including Quad-View, Picture-in-Picture (PiP), and Picture-by-Picture (PbP) let you monitor and compare the four sources.
Instant Switching With Continuous Video
Move seamlessly between systems using mouse roaming with zero latency and no screen blackout. Continuous video output keeps every system visible at all times, eliminating delays caused by switching or waiting for auto-scan cycles, reducing disruption in control rooms, industrial environments, and other time-sensitive operations.
Switch Your Way
Adapt the KVM to your environment with multiple switching methods. Use front-panel buttons, keyboard hotkeys, mouse roaming, mouse side buttons, or serial control via RJ-11 or USB-C to support hands-on use, remote management, or automated workflows.
Built-In Dual Display Output
Mirror the KVM output to two displays simultaneously using DisplayPort and HDMI. Use a local desktop monitor for hands-on control while displaying the same view on a larger wall-mounted TV for monitoring or team visibility. This dual console output improves visibility, collaboration, and redundancy without requiring external splitters or additional hardware.
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
DisplayPort, USB A, USB C |
| DisplayPorts quantity |
4 |
| DisplayPort version |
1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| Console USB ports quantity |
4 |
| Console DisplayPorts ports quantity |
1 |
| Console HDMI ports quantity |
1 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
1 |
| Audio connections |
Yes |
| Headphone outputs |
5 |
| RJ-11 ports quantity |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
130 mm |
| Depth |
220 mm |
| Height |
40 mm |
| Weight |
1.05 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
100 - 240 V |
| Input current |
1 A |
| Output voltage |
12 V |
| Output current |
3 A |
| Power consumption (typical) |
36 W |
| External power adapter |
Yes |
| Compatible power plug types |
EU, UK, US, AU |
| Display |
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Packaging content |
| Manual |
Yes |
| Rubber feet |
Yes |
| Other features |
| IP control |
No |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Steel, Aluminium |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Mean time between failures (MTBF) |
130000 h |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Daisy chain |
No |
| Logistics data |
| Master (outer) case width |
495 mm |
| Master (outer) case length |
385 mm |
| Master (outer) case height |
265 mm |
| Products per master (outer) case |
6 pc(s) |
| Packaging data |
| Package width |
365 mm |
| Package depth |
235 mm |
| Package height |
75 mm |
| Package weight |
195 g |
| Sustainability |
| Compliance certificates |
Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS |
Features

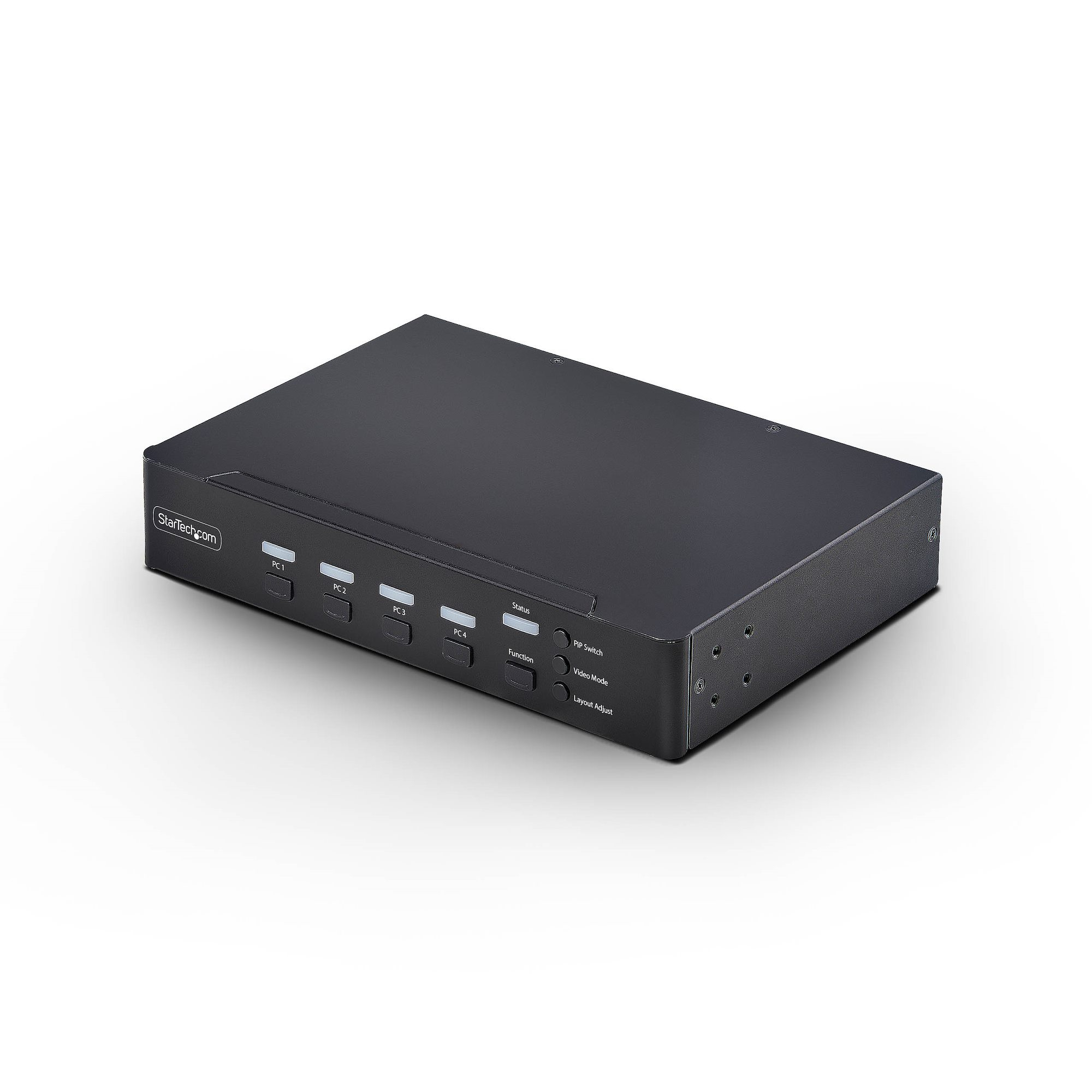

StarTech.com 4-Port DisplayPort KVM Switch with Mouse Roaming and Multi-View / Picture-in-Picture, 4K 60Hz, USB 3.0 (5Gbps) Hub, Hotkey Control, TAA Compliant. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Housing material: Steel, Aluminium, Mean time between failures (MTBF): 130000 h. Power source: DC, Input voltage: 100 - 240 V, Input current: 1 A. Compliance certificates: Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS
Product Description
Control up to four DisplayPort computers with mouse roaming, quad view, and picture-in-picture support
Streamline complex workflows by managing up to four DisplayPort computers from a single keyboard, mouse, and display. With support for true 4K 60 Hz (4:4:4) resolution, this multiview KVM delivers crisp text and precise visuals across Windows, macOS, and Linux workstations.
Multiview Monitoring
Maintain full awareness and react faster by viewing multiple systems at once. Flexible display modes including Quad-View, Picture-in-Picture (PiP), and Picture-by-Picture (PbP) let you monitor and compare the four sources.
Instant Switching With Continuous Video
Move seamlessly between systems using mouse roaming with zero latency and no screen blackout. Continuous video output keeps every system visible at all times, eliminating delays caused by switching or waiting for auto-scan cycles, reducing disruption in control rooms, industrial environments, and other time-sensitive operations.
Switch Your Way
Adapt the KVM to your environment with multiple switching methods. Use front-panel buttons, keyboard hotkeys, mouse roaming, mouse side buttons, or serial control via RJ-11 or USB-C to support hands-on use, remote management, or automated workflows.
Built-In Dual Display Output
Mirror the KVM output to two displays simultaneously using DisplayPort and HDMI. Use a local desktop monitor for hands-on control while displaying the same view on a larger wall-mounted TV for monitoring or team visibility. This dual console output improves visibility, collaboration, and redundancy without requiring external splitters or additional hardware.
