Stock Status: 1x unit in stock
Share a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort display between two DisplayPort-enabled computers, featuring EDID Emulation and HDCP engine
This DisplayPort KVM Switch enables users to switch between two desktops equipped with USB-A and DisplayPort. It allows sharing of a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and two additional USB 2.0 devices.
EDID Control for Display Compatibility
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. It has been extensively tested to ensure compatibility across a wide range of devices and environments. HDCP Engine enables transmission of protected content. It also features flexible EDID management with options to retain, auto-detect, or default, reducing resolution mismatch issues and simplifying display-related troubleshooting for IT teams.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
No Drivers or Software Required
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M-Series).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 4kV Air/4kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| Console USB ports quantity |
4 |
| Console DisplayPorts ports quantity |
1 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| Audio connections |
Yes |
| Number of microphone inputs |
2 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
100 mm |
| Depth |
160 mm |
| Height |
40 mm |
| Weight |
640 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
100 - 240 V |
| Input current |
1 A |
| Output current |
3 A |
| Power consumption (typical) |
36 W |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, UK |
| Display |
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Packaging content |
| AC adapter included |
Yes |
| Rubber feet |
Yes |
| Other features |
| IP control |
No |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Steel |
| Maximum cable length |
3 m |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Mean time between failures (MTBF) |
130000 h |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Data transfer rate (max) |
5 Gbit/s |
| Scan interval |
3,8,15,30 s |
| Logistics data |
| Master (outer) case width |
397 mm |
| Master (outer) case length |
257 mm |
| Master (outer) case height |
300 mm |
| Products per master (outer) case |
6 pc(s) |
| Packaging data |
| Package width |
238 mm |
| Package depth |
184 mm |
| Package height |
89 mm |
| Sustainability |
| Compliance certificates |
Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
Features

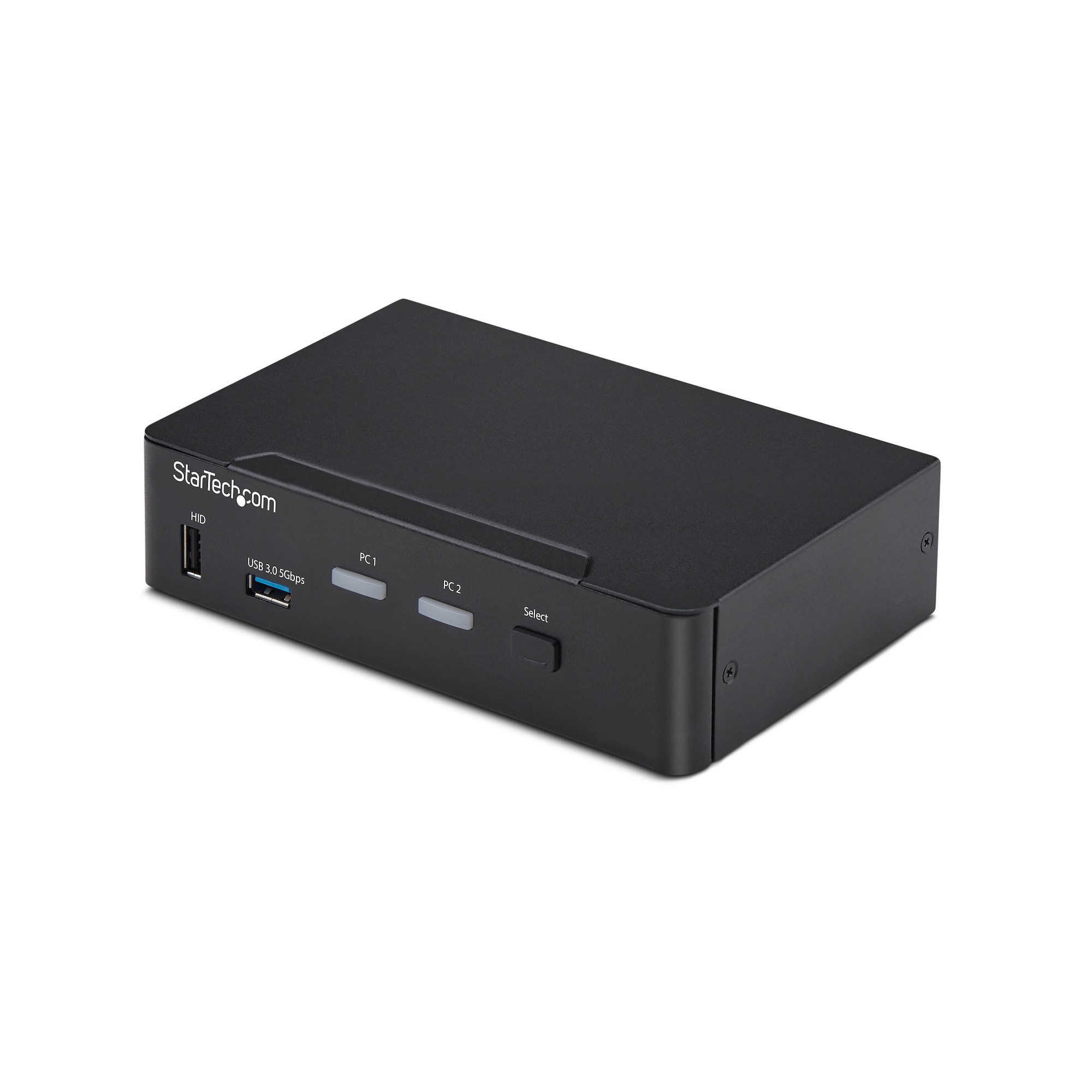

StarTech.com 2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, EDID Management, 2-Port USB 3.0 Hub, 4x USB HID Ports, TAA Compliant. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 5 Gbit/s. Product colour: Black, Housing material: Steel, Maximum cable length: 3 m. Power source: DC, Input voltage: 100 - 240 V, Input current: 1 A. Compliance certificates: Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Product Description
Share a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort display between two DisplayPort-enabled computers, featuring EDID Emulation and HDCP engine
This DisplayPort KVM Switch enables users to switch between two desktops equipped with USB-A and DisplayPort. It allows sharing of a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and two additional USB 2.0 devices.
EDID Control for Display Compatibility
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. It has been extensively tested to ensure compatibility across a wide range of devices and environments. HDCP Engine enables transmission of protected content. It also features flexible EDID management with options to retain, auto-detect, or default, reducing resolution mismatch issues and simplifying display-related troubleshooting for IT teams.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
No Drivers or Software Required
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M-Series).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 4kV Air/4kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
