Stock Status: 1x unit in stock

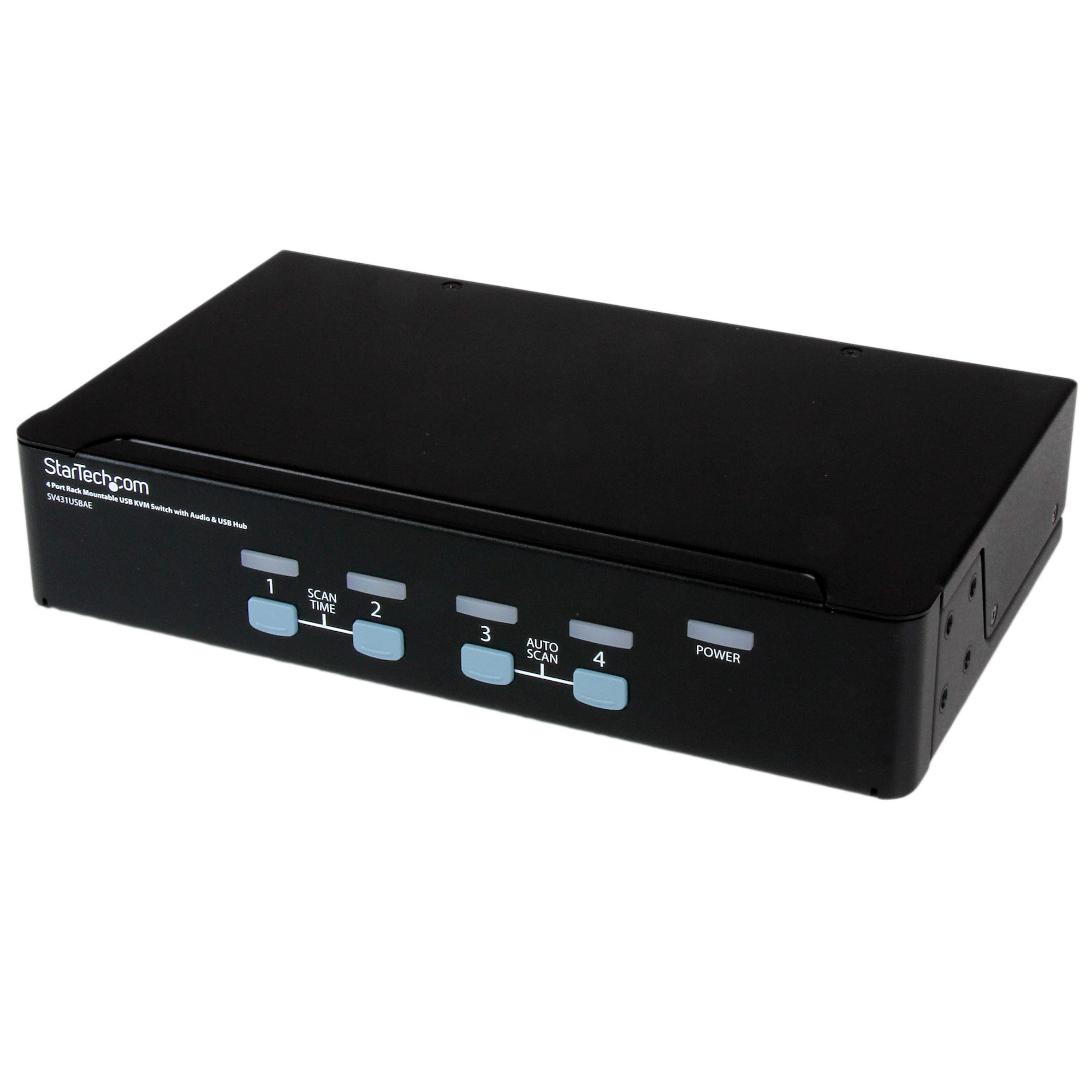

Share keyboard, mouse, speakers and a VGA display between four multimedia computers
This Rack Mountable USB KVM Switch supports high resolution video applications (up to 1920x1440 pixels supported) and audio switching between connected computers, and provides an integrated USB 2.0 hub that lets the selected computer have access shared high speed USB peripherals.
Providing control of up to four computers from a single USB keyboard and mouse peripheral set, the switch features a sturdy all metal chassis and can be rackmounted in a server rack/cabinet using an optional Rackmount Bracket kit (SV431RACK) - minimizing clutter and saving space.
This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.
The StarTech.com Advantage
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Console ports |
3.5mm headphone, 3.5mm mic |
| USB hub |
Yes |
| USB 2.0 Type-A hub ports quantity |
4 |
| Headphone outputs |
1 |
| Number of microphone inputs |
1 |
| Weight & dimensions |
| Width |
220 mm |
| Depth |
130 mm |
| Height |
44 mm |
| Weight |
1 kg |
| Power |
| Input voltage |
100 - 240 V |
| Input current |
0.4 A |
| Output voltage |
5 V |
| Output current |
2 A |
| Power consumption (typical) |
10 W |
| External power adapter |
Yes |
| Display |
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Packaging content |
| Manual |
Yes |
| AC adapter included |
Yes |
| Rubber feet |
Yes |
| Other features |
| IP control |
No |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Steel |
| Hot keys |
No |
| Performance |
| Maximum resolution |
1920 x 1440 pixels |
| Daisy chain |
No |
| Number of users |
1 user(s) |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
555 mm |
| Master (outer) case length |
430 mm |
| Master (outer) case height |
248 mm |
| Products per master (outer) case |
6 pc(s) |
| Packaging data |
| Package width |
90 mm |
| Package depth |
410 mm |
| Package height |
215 mm |
| Package weight |
1.7 kg |
| Sustainability |
| Compliance certificates |
CE, RoHS |
Features
StarTech.com 4 Port Rack Mountable USB KVM Switch with Audio & USB Hub. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Maximum resolution: 1920 x 1440 pixels, Number of users: 1 user(s). Product colour: Black, Rack capacity: 1U, Housing material: Steel. Input voltage: 100 - 240 V, Input current: 0.4 A, Output voltage: 5 V. Compliance certificates: CE, RoHS
