Stock Status: 1x unit in stock

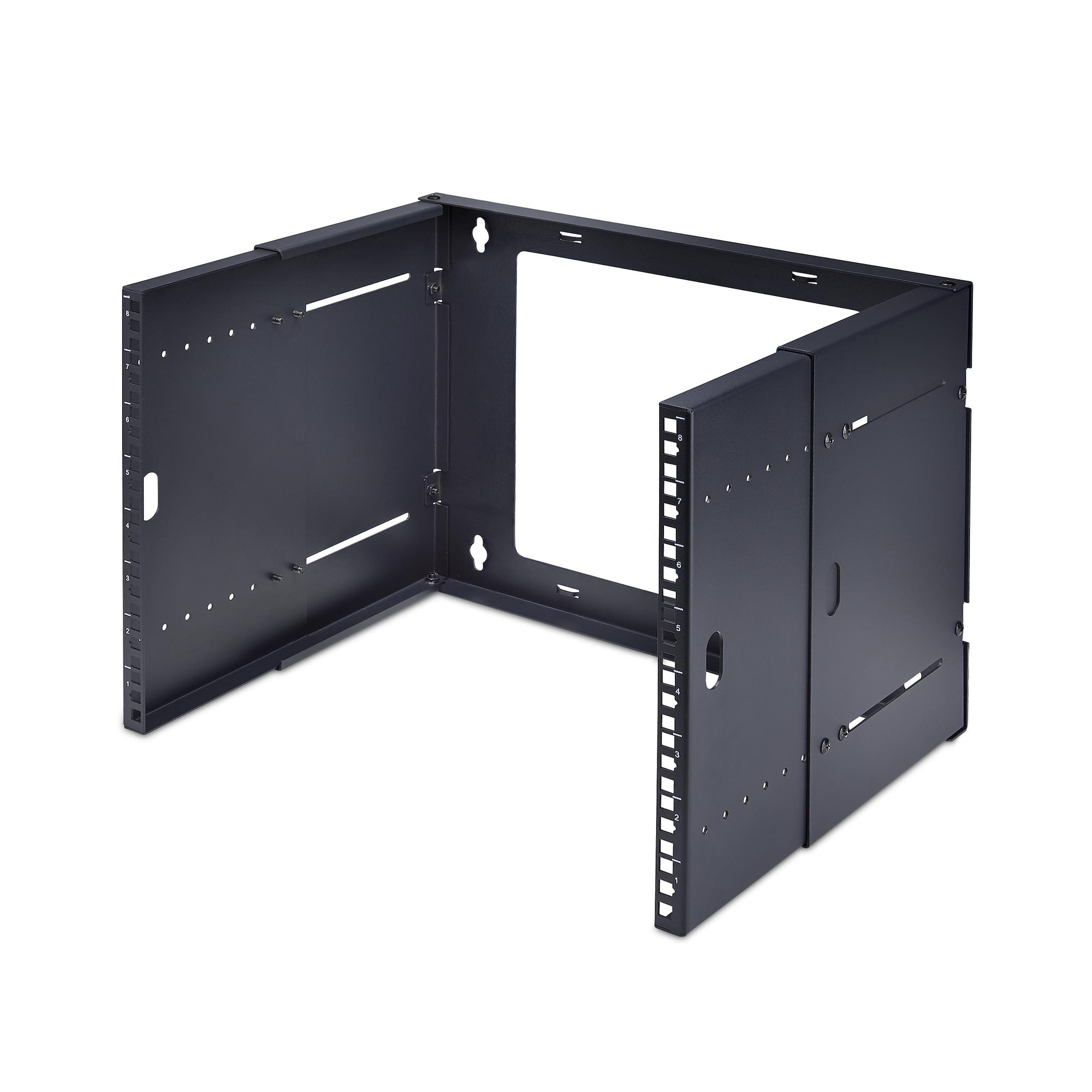

Mount a server or networking equipment to a wall with this open-frame bracket
This 2-post 8U adjustable wall mount bracket provides a convenient solution for mounting 19-inch rack-mountable shallow servers, patch panels, NAS devices, UPS, data, and networking equipment. The adjustable depth enables customization to accommodate various equipment sizes.
Simplified Installation
This wall-mounted rack features fold-out sides for quick setup, ships fully assembled flat-packed, and includes all the necessary hardware: wood stud screws, M5 cage nuts, and M5 screws and speed up deployment. Four keyhole wall mounting holes provide a straightforward way to securely mount or unmount the rack. The mounting holes are spaced 16" (40.6cm) to match existing wall-stud framework.
Adjustable Depth
The 2-post open rack features an adjustable depth range from 9.6 to 15.6in (24.5 to 39.7cm) to accommodate larger rack-mountable devices. The additional depth can also be used for equipment that may require additional clearance at the back for cable management.
Built to Last
Wall-mount rack bracket is made from 14-gauge (2mm) SPCC steel that can support up to 88lb (40kg) of equipment, providing a stable and sturdy mounting point. The powder-coated finish ensures long-lasting durability, protecting the rack from wear and tear.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
397.7 mm |
| Depth |
500 mm |
| Height |
383.5 mm |
| Weight |
7 kg |
| Mounting depth (min) |
24.5 cm |
| Mounting depth (max) |
39.8 cm |
| Other features |
| Compliance industry standards |
EIA/ECA-310-E |
| Features |
| Rack capacity |
8U |
| Type |
Wall mounted rack |
| Maximum weight capacity |
40 kg |
| Product colour |
Black |
| Material |
Steel |
| Frame type |
Open |
| Product design |
2-post |
| Mounting hole shape |
Square |
| Preassembled |
Yes |
| Logistics data |
| Master (outer) case width |
585 mm |
| Master (outer) case length |
455 mm |
| Master (outer) case height |
105 mm |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Nuts included |
Yes |
| Number of nuts |
24 |
| Screws included |
Yes |
| Number of screws |
32 |
| Quick installation guide |
Yes |
| Package width |
585 mm |
| Package depth |
455 mm |
| Package height |
105 mm |
| Package weight |
9.1 kg |
Features
StarTech.com 2-Post 8U Wall Mounted Rack, Adjustable Depth up to 16in (40cm), Bracket for 19-inch Server/Data/Networking Equipment, Open Frame, Max 88lb (40kg). Type: Wall mounted rack, Rack capacity: 8U, Maximum weight capacity: 40 kg. Weight: 7 kg. Product colour: Black
Product Description
Mount a server or networking equipment to a wall with this open-frame bracket
This 2-post 8U adjustable wall mount bracket provides a convenient solution for mounting 19-inch rack-mountable shallow servers, patch panels, NAS devices, UPS, data, and networking equipment. The adjustable depth enables customization to accommodate various equipment sizes.
Simplified Installation
This wall-mounted rack features fold-out sides for quick setup, ships fully assembled flat-packed, and includes all the necessary hardware: wood stud screws, M5 cage nuts, and M5 screws and speed up deployment. Four keyhole wall mounting holes provide a straightforward way to securely mount or unmount the rack. The mounting holes are spaced 16" (40.6cm) to match existing wall-stud framework.
Adjustable Depth
The 2-post open rack features an adjustable depth range from 9.6 to 15.6in (24.5 to 39.7cm) to accommodate larger rack-mountable devices. The additional depth can also be used for equipment that may require additional clearance at the back for cable management.
Built to Last
Wall-mount rack bracket is made from 14-gauge (2mm) SPCC steel that can support up to 88lb (40kg) of equipment, providing a stable and sturdy mounting point. The powder-coated finish ensures long-lasting durability, protecting the rack from wear and tear.
