Stock Status: 1x unit in stock

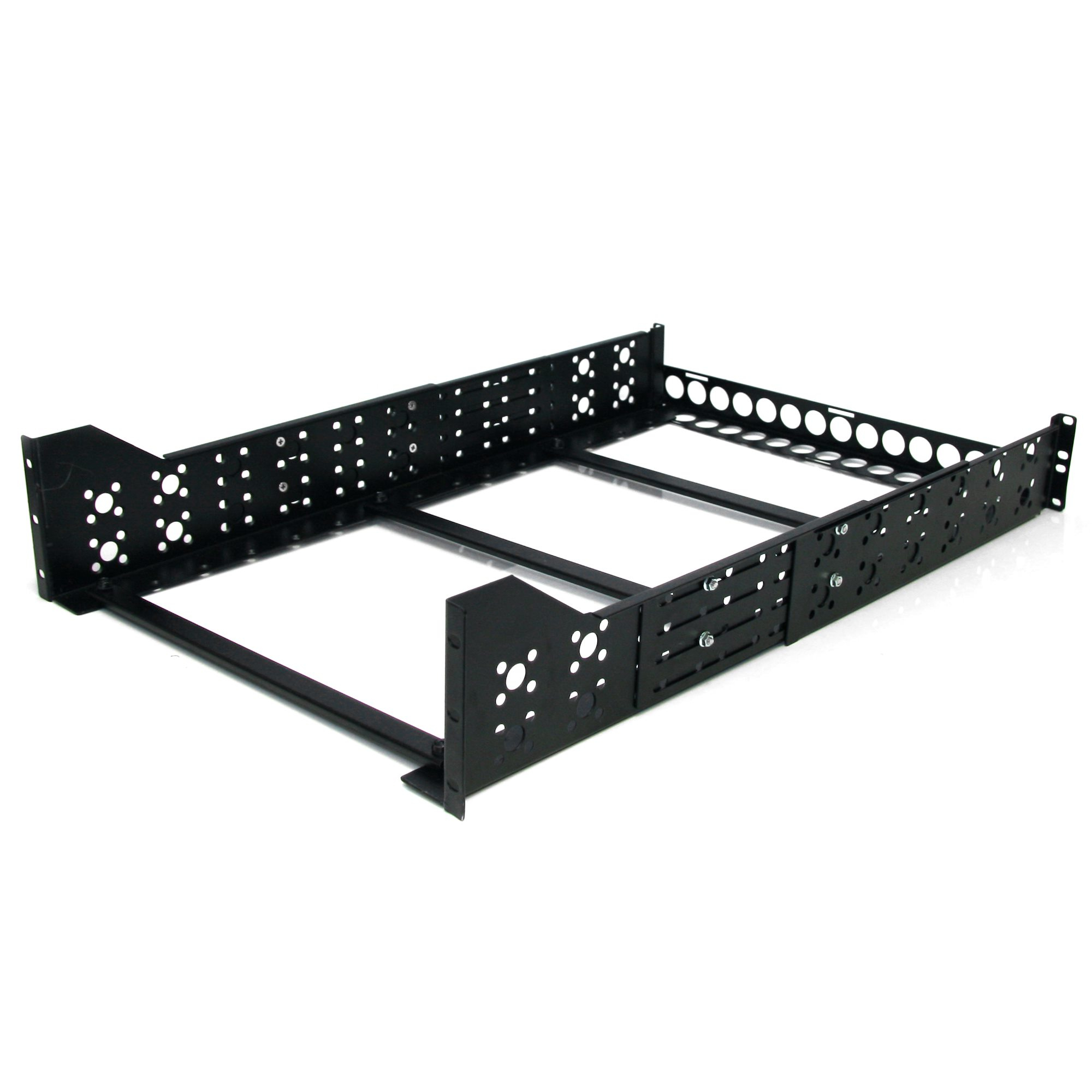

Mount 19" servers or networking hardware in any standard rack with these universal, adjustable depth 3U rack rails
These 3U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing an additional 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available.
This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Turn non-rackmount equipment into 3U rackmount hardware
These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.
Universal design mounts to almost any 19" server rack
Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.
Maximum durability
To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 100 lb (45 kg).
The UNIRAILS3U is backed by a lifetime StarTech.com warranty with free technical support.
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Size (imperial) |
48.3 cm (19") |
| Width |
465 mm |
| Depth |
481 mm |
| Height |
130 mm |
| Mounting depth (min) |
42 cm |
| Mounting depth (max) |
105.4 cm |
| Weight |
3.9 kg |
| Other features |
| Form factor |
3U |
| Features |
| Type |
Rack rail |
| Product colour |
Black |
| Housing material |
Steel |
| Maximum weight capacity |
97.3 kg |
| Rack capacity |
3U |
| Certification |
CE, UL |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging content |
| Mounting kit |
Yes |
| Screws included |
Yes |
| Logistics data |
| Master (outer) case width |
105 mm |
| Master (outer) case length |
487 mm |
| Master (outer) case height |
150 mm |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85389099 |
| Packaging data |
| Package width |
105 mm |
| Package depth |
487 mm |
| Package height |
150 mm |
| Package weight |
4.12 kg |
Features
StarTech.com 3U Fixed 19" Adjustable Depth Universal Server Rack Rails. Type: Rack rail, Product colour: Black, Housing material: Steel. Size (imperial): 48.3 cm (19"), Width: 465 mm, Depth: 481 mm. Package width: 105 mm, Package depth: 487 mm, Package height: 150 mm. Master (outer) case width: 105 mm, Master (outer) case length: 487 mm, Master (outer) case height: 150 mm. Form factor: 3U
Product Description
Mount 19" servers or networking hardware in any standard rack with these universal, adjustable depth 3U rack rails
These 3U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing an additional 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available.
This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Turn non-rackmount equipment into 3U rackmount hardware
These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.
Universal design mounts to almost any 19" server rack
Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.
Maximum durability
To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 100 lb (45 kg).
The UNIRAILS3U is backed by a lifetime StarTech.com warranty with free technical support.
