Stock Status: 1x unit in stock

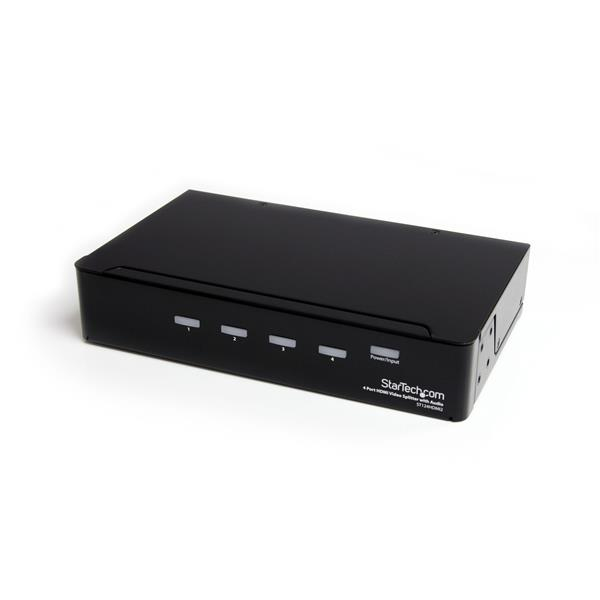

The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality.
Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.
A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High Speed HDMI® support ensures compatibility with the latest HDMI source devices and displays
- Signal amplification provides high-resolution HDMI signals without signal degradation/loss of quality
* Product appearance and specifications are subject to change without notice.
Specs
| Technical details |
| Maximum cable length |
5 m |
| Cascadable |
Y |
| Audio support |
Y |
| Packaging content |
| Manual |
Y |
| AC adapter included |
Y |
| Included power plug types |
AU,EU,NA,UK |
| Ports & interfaces |
| Video ports quantity |
4 |
| Video port type |
HDMI |
| Audio ports quantity |
5 |
| DC-in jack |
Y |
| Video out |
4x HDMI |
| Weight & dimensions |
| Dimensions (WxDxH) |
135 x 220 x 44 mm |
| Weight |
966 g |
| Width |
135 mm |
| Depth |
220 mm |
| Height |
44 mm |
| Power |
| Input voltage |
100 - 240 V |
| Input current |
0.8 A |
| Output voltage |
12 V |
| Output current |
1.5 A |
| Power consumption (typical) |
18 W |
| AC input voltage |
100 - 240 V |
| Packaging data |
| Package length |
41 cm |
| Package width |
411 mm |
| Package height |
90 mm |
| Package weight |
2 kg |
| Package depth |
214 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Features |
| Maximum resolution |
1920 x 1200 pixels |
| Product colour |
Black |
| Housing material |
Steel |
| Full HD |
Y |
| HDCP |
Y |
| Supported graphics resolutions |
1280 x 1024 (SXGA),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),640 x 480 (VGA) |
| Power LED |
Y |
| Supported video modes |
720p,1080p |
| Certification |
CE, FCC, TAA, REACH |
Features
StarTech.com 4-port HDMI splitter and signal amplifier. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 1920 x 1200 pixels, Product colour: Black, Housing material: Steel. AC input voltage: 100 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Width: 135 mm, Depth: 220 mm, Height: 44 mm. Package width: 411 mm, Package depth: 214 mm, Package height: 90 mm
Product Description
The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality.
Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 15ft (5m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.
A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High Speed HDMI® support ensures compatibility with the latest HDMI source devices and displays
- Signal amplification provides high-resolution HDMI signals without signal degradation/loss of quality
* Product appearance and specifications are subject to change without notice.
