Stock Status: 1x unit in stock

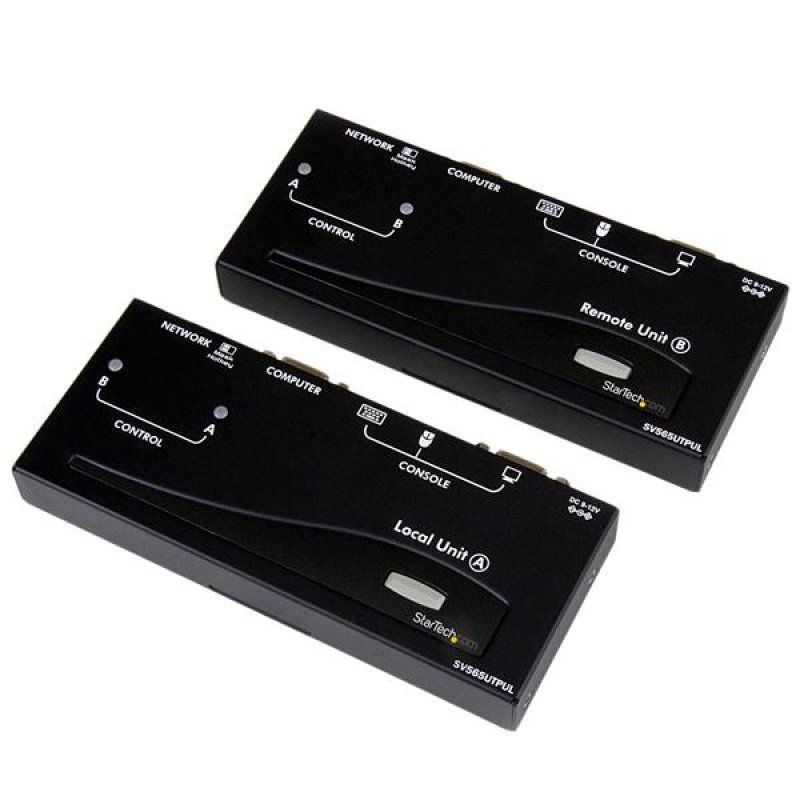

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Great for high definition resolutions, with support of UXGA (1600 x 1200) and WUXGA (1920 x 1200)
- Remote to local switching means that the computer or console being extended can still be accessed locally without the need to unplug/replug any connections
- Backed by a StarTech.com 3 year hardware warranty and lifetime technical support
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
| Transmitter width |
15.7 cm |
| Transmitter depth |
7 cm |
| Transmitter height |
2 cm |
| Transmitter weight |
1.5 kg |
| Receiver width |
15.7 cm |
| Receiver depth |
7 cm |
| Receiver height |
2 cm |
| Receiver weight |
1.5 kg |
| Packaging data |
| Package width |
197 mm |
| Package depth |
294 mm |
| Package height |
72 mm |
| Package weight |
1.37 kg |
| Power |
| AC input voltage |
110-240 V |
| AC adapter output voltage |
12 V |
| AC adapter output current |
1.5 A |
| Features |
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Maximum transfer distance |
300 m |
| Rack mounting |
N |
| Maximum analog resolution |
1920 x 1200 pixels |
| KVM port selection |
Hotkeys, Push-buttons |
| Product colour |
Black |
| Plug and Play |
Y |
| Transmitter |
| Transmitter video port type |
VGA |
| Transmitter local keyboard/mouse port type |
USB |
| Receiver |
| Receiver local video port type |
VGA |
| Receiver local keyboard/mouse port type |
USB |
| Technical details |
| Maximum resolution |
1920 x 1200 pixels |
| Power requirements |
115 AC / 9 DC |
| Weight |
1.5 kg |
| Packaging content |
| Cables included |
KVM, USB, VGA |
| Manual |
Y |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
Features
StarTech.com Long Range USB VGA KVM Console Extender over Cat5 UTP - 1000 ft. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 300 m. Transmitter video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. AC input voltage: 110-240 V, AC adapter output voltage: 12 V, AC adapter output current: 1.5 A. Transmitter width: 15.7 cm, Transmitter depth: 7 cm, Transmitter height: 2 cm
Product Description
The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Great for high definition resolutions, with support of UXGA (1600 x 1200) and WUXGA (1920 x 1200)
- Remote to local switching means that the computer or console being extended can still be accessed locally without the need to unplug/replug any connections
- Backed by a StarTech.com 3 year hardware warranty and lifetime technical support
