Stock Status: 1x unit in stock

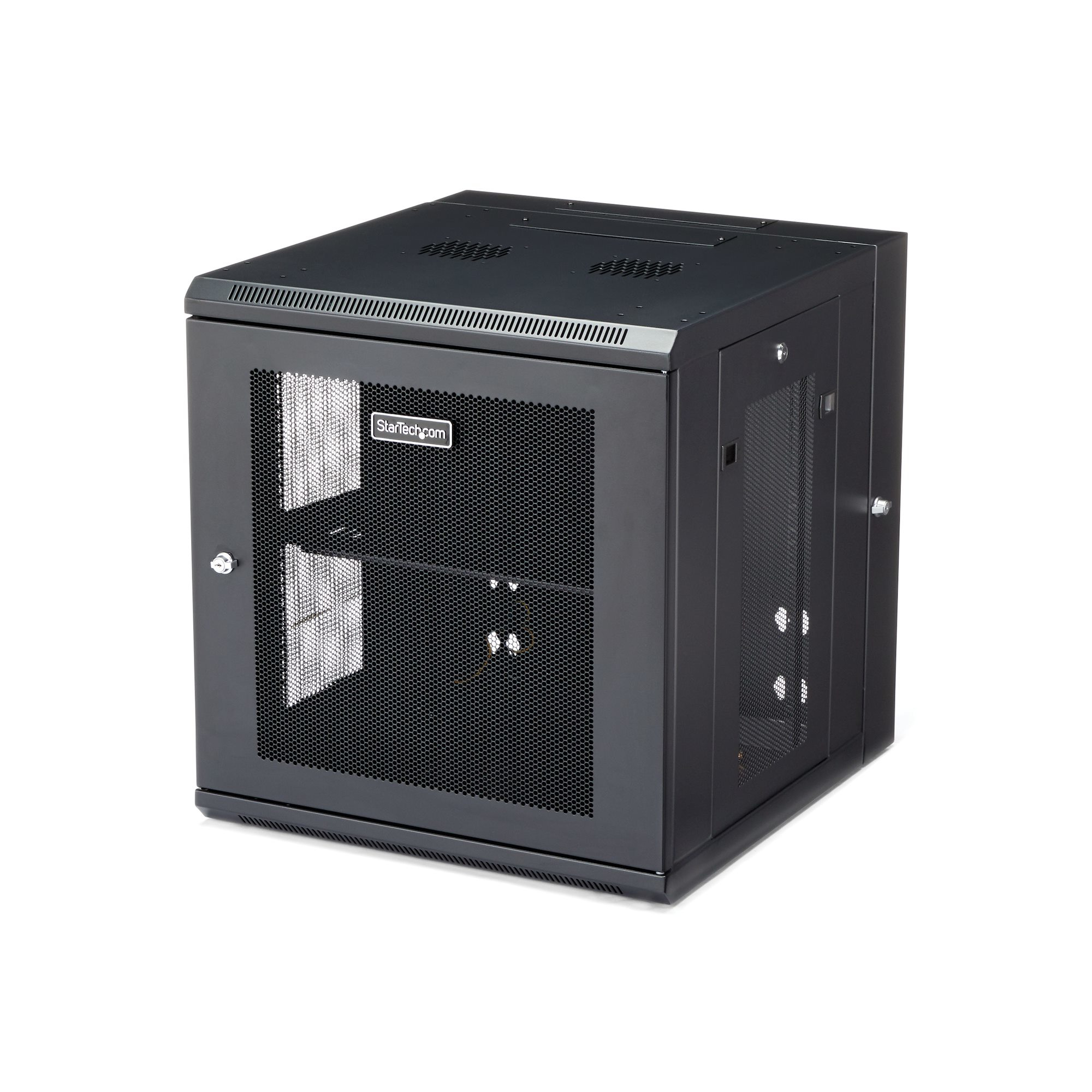

Use this wall mount network cabinet to mount your server or networking equipment to the wall with a hinged enclosure for easy access
This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2.4 to 19.7 in. to provide a robust storage solution for your rack-mount equipment.
To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).
Save space in your office or server room
Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.
Easily access your servers and network equipment
The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.
The 12U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.
For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
Securely protect your equipment
This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.
To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.
For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.
The RK1224WALHM is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- EASY ACCESS: 24" deep wall mount network cabinet for IT gear e.g. Cisco 3850 & 2960 series switches. 180° hinged design w/ lockable access to rear of mounted devices. Removable doors & side panels
- ACCESORIES INCLUDED: IT Data Rack includes complete set of accessories: a shelf (CABSHELFV1U), roll of hook-and-loop fastener, 50 cage nuts and screws, & 2 pairs of keys for the front & side panels
- STURDY CONSTRUCTION: 4 Post 19" 12U EIA/ECA-310-E enclosed design, 200lb weight cap, 24" deep with max. 20" mounting depth, removable sides, locking reversible door, dual top cable hole, optional fans
Specs
| Weight & dimensions |
| Width |
610 mm |
| Depth |
655 mm |
| Height |
640 mm |
| Inner width |
595 mm |
| Inner depth |
652 mm |
| Inner height |
54 cm |
| Weight |
37.4 kg |
| Mounting depth (min) |
6 cm |
| Mounting depth (max) |
50 cm |
| Other features |
| Compliance industry standards |
EIA/ECA-310-E |
| Features |
| Rack capacity |
12U |
| Type |
Wall mounted rack |
| Maximum weight capacity |
90 kg |
| Product colour |
Black |
| Frame type |
Closed |
| Product design |
4-post |
| Back door construction |
Steel |
| Front door construction |
Steel |
| Side panel construction |
Steel |
| Removable front door |
N |
| Removable side panels |
Y |
| Side panels included |
Y |
| Key lock |
Y |
| Back door key lock |
Y |
| Front door key lock |
Y |
| Rack rail thickness |
2 mm |
| Adjustable mounting rails |
Y |
| Cable management |
Y |
| Mounting hole shape |
Square |
| Castor wheels |
N |
| Certification |
CE, REACH |
| Logistics data |
| Harmonized System (HS) code |
85381000 |
| Master (outer) case width |
670 mm |
| Master (outer) case length |
720 mm |
| Master (outer) case height |
720 mm |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Nuts included |
Y |
| Number of nuts |
50 |
| Screws included |
Y |
| Number of screws |
50 |
| Manual |
Y |
| Package width |
722 mm |
| Package depth |
675 mm |
| Package height |
720 mm |
| Package weight |
41.2 kg |
| Technical details |
| Sustainability certificates |
CE, RoHS |
Features
StarTech.com 12U 19" Wall Mount Network Cabinet - 20" Deep 4 Post Hinged Locking IT Computer Equipment Enclosure w/Shelf - Flexible Vented Switch Depth Data Rack Cisco 3850, 2960 Series. Type: Wall mounted rack, Rack capacity: 12U, Maximum weight capacity: 90 kg, Key lock, Cable management. Weight: 37.4 kg. Product colour: Black
Product Description
Use this wall mount network cabinet to mount your server or networking equipment to the wall with a hinged enclosure for easy access
This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2.4 to 19.7 in. to provide a robust storage solution for your rack-mount equipment.
To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).
Save space in your office or server room
Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.
Easily access your servers and network equipment
The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.
The 12U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.
For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
Securely protect your equipment
This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.
To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.
For simple and sturdy mounting, the rack’s mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.
The RK1224WALHM is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- EASY ACCESS: 24" deep wall mount network cabinet for IT gear e.g. Cisco 3850 & 2960 series switches. 180° hinged design w/ lockable access to rear of mounted devices. Removable doors & side panels
- ACCESORIES INCLUDED: IT Data Rack includes complete set of accessories: a shelf (CABSHELFV1U), roll of hook-and-loop fastener, 50 cage nuts and screws, & 2 pairs of keys for the front & side panels
- STURDY CONSTRUCTION: 4 Post 19" 12U EIA/ECA-310-E enclosed design, 200lb weight cap, 24" deep with max. 20" mounting depth, removable sides, locking reversible door, dual top cable hole, optional fans
